Simple A Swimming  pool heat pump Controller

Type: CCYC002

Setting-range:8~60 Celsius

Temperature control Accuracy :+/-1 Celsius

Power supply: 220±10%(VAC), 50/60Hz

Mode:cooling, heating ,Auto

Output:Compressor ,Cycle water pump, Fan motor…etc

Simulation sensor:Inlet water temperature sensor, Outlet water temperature sensor, Climate temperature sensor…etc

Dry contact input signal:High pressure switch ,Low pressure switch ,Water flow switch…etc

One compressor control

With EEV control

Mounting size:  95×150×30mm

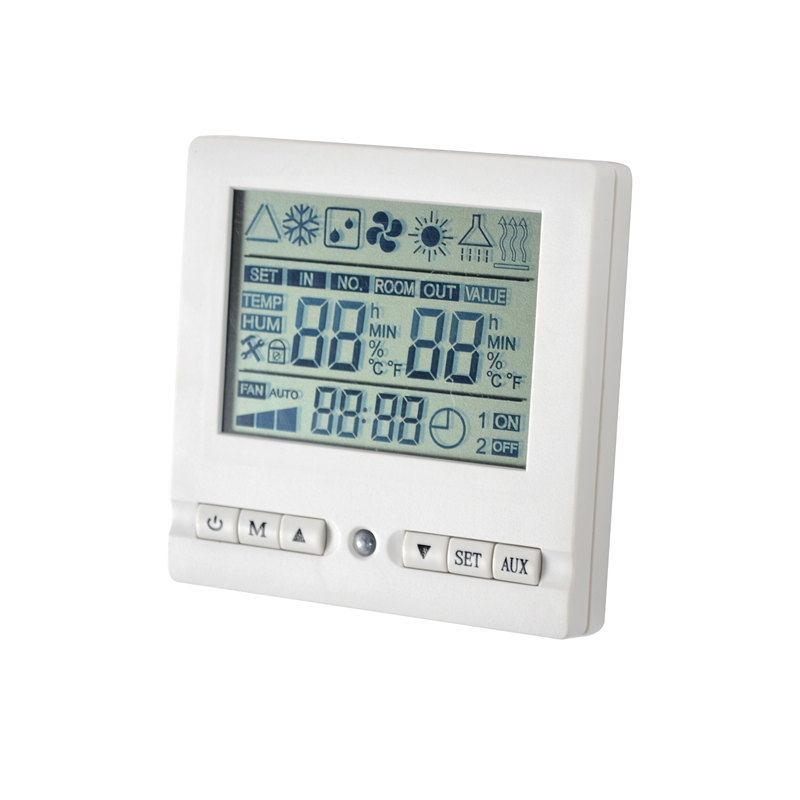

Wring control : LCD display

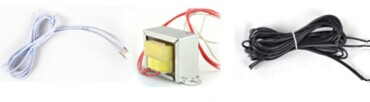

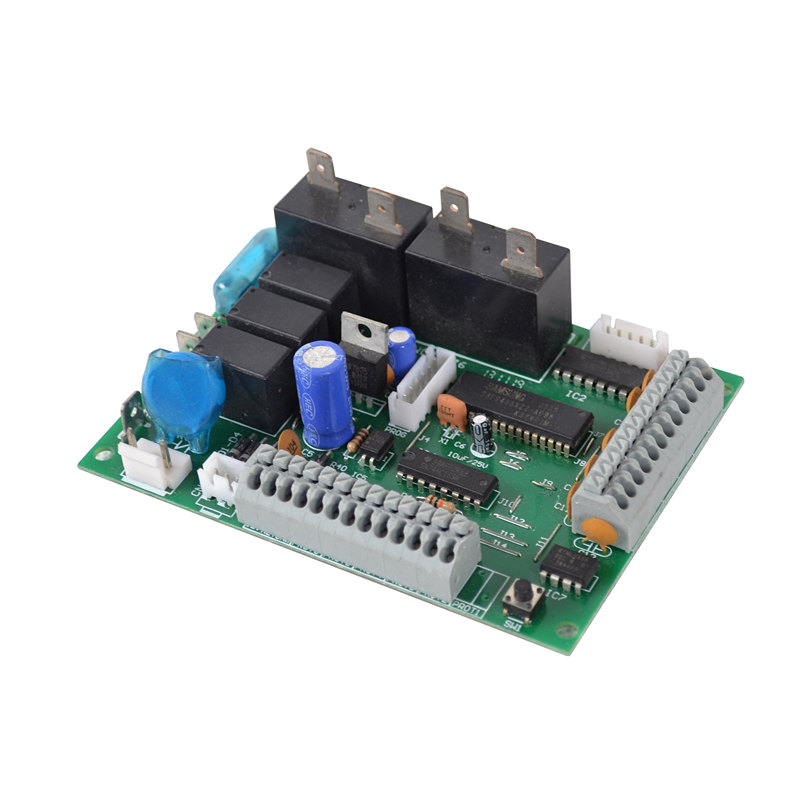

Product list:Main board(1) +LCD display(1)+connection wires(1) +temp.sensors(6) +transformer (1)
