CCYC004-1 Air source Tuya wifi swimming pool Inverter heat pump controller

| Type: CCYC004-1

| Setting-range: 8～40 Celsius

| Temperature control Accuracy : +/-1 Celsius

| Power supply: 220±10%(VAC), 50/60Hz

| Inverter Power：3.5KW-4.5KW

| Inverter frequency range：20HZ-120HZ

| Mode: cooling, heating, Auto

| Sensor type: NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K)

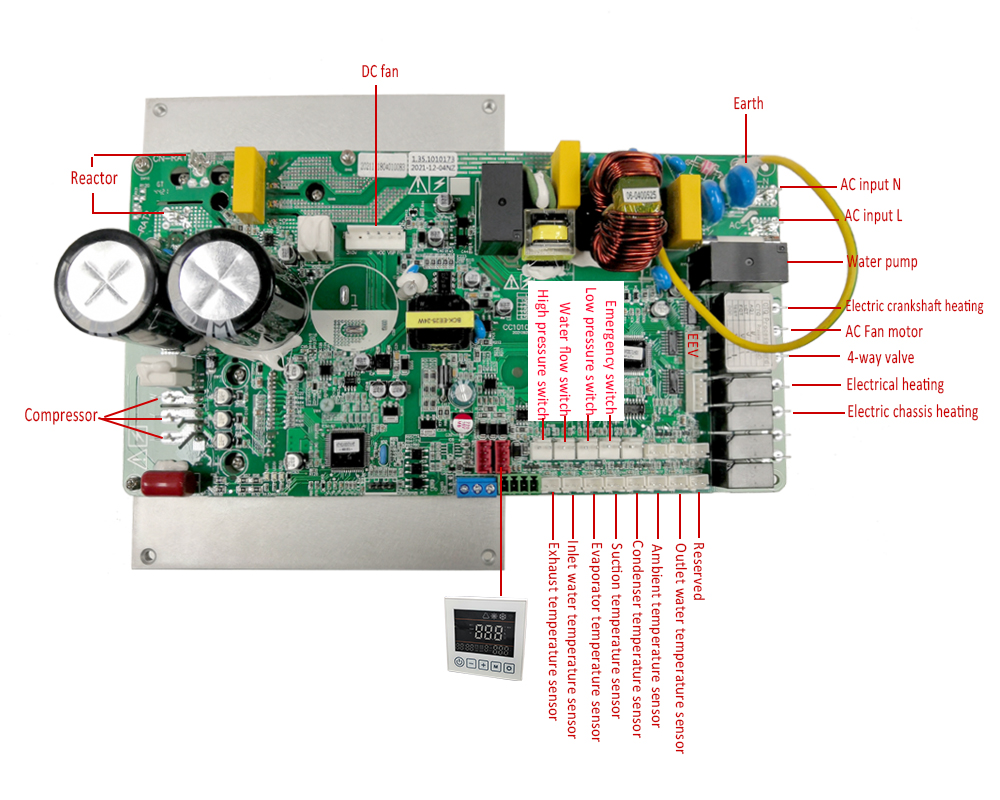

| Output:Compressor ,4-way valve, Fan motor, cycle water pump…etc

| Simulation sensor:Inlet water temperature sensor, Outlet temperature sensor, Climate temperature sensor…etc

| Dry contact input signal:Low pressure switch, Low pressure switch, Water flow switch…etc

| One compressor control

| With EEV function, 24 hour cycle Timing ON/OFF function

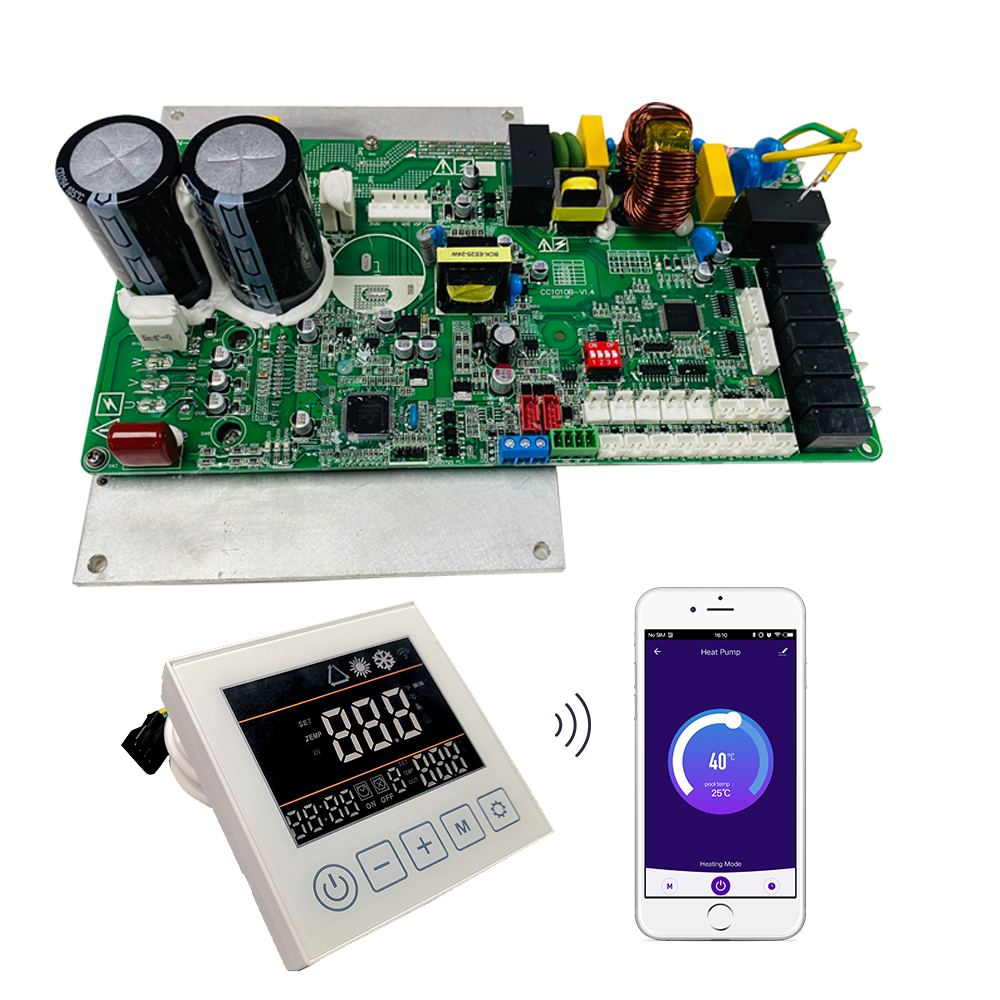

| With WIFI function

| Mounting size:  267×200×126mm

| Wring control : LED  display or  LCD display

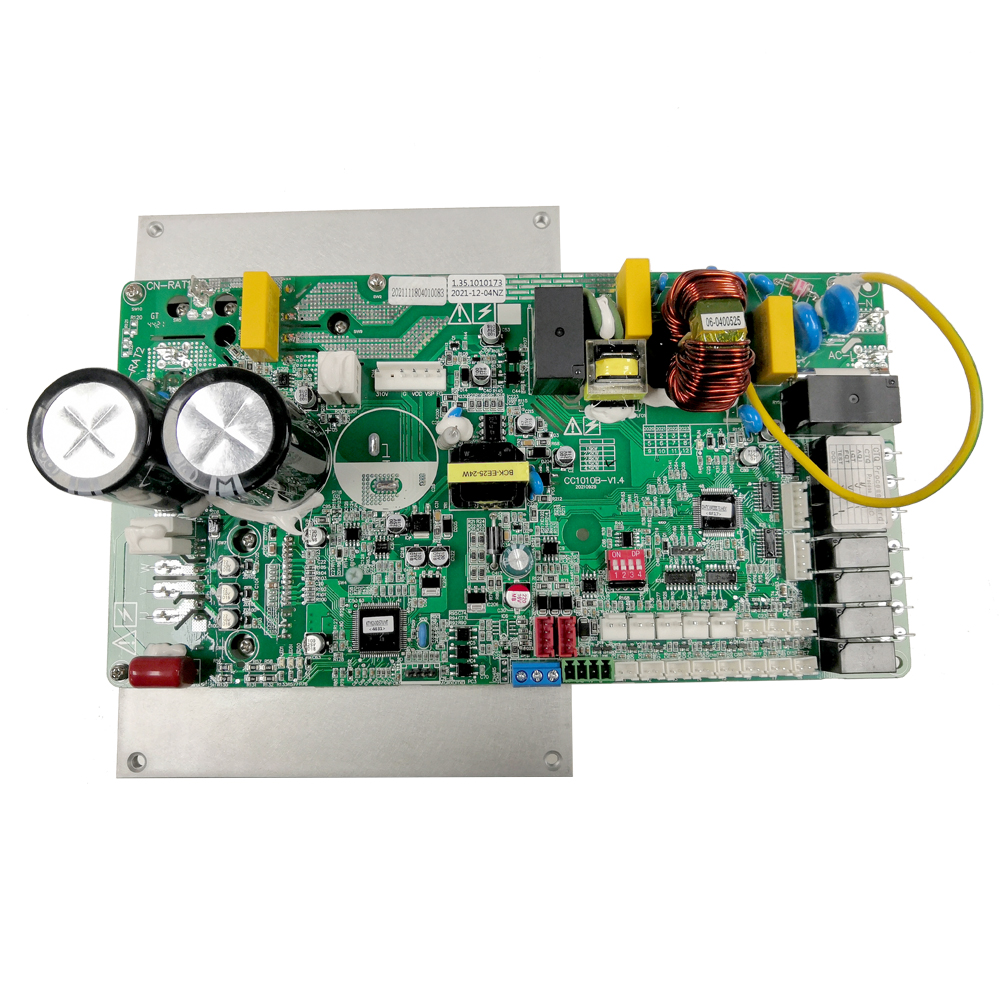

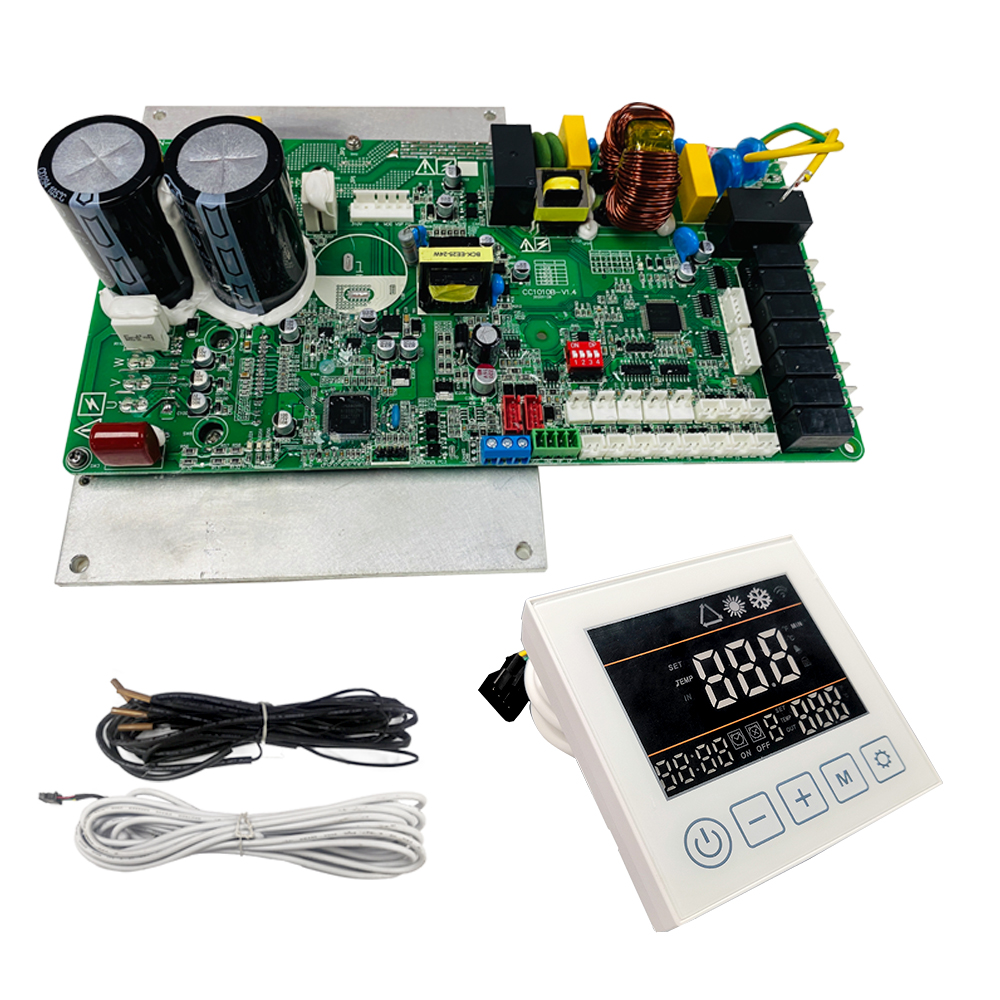

| Product list:Main board(1) +display(1)+connection wires(1) +temp.sensors(7) +reactor(1)

| Suitable for inverter swimming pool heat pump machine.

| Inverter compressor drive module and system operation control module are integrated. Reduce installation  space to achieve the purpose of reducing costs.
