CCYC005 Air source Tuya wifi swimming pool inverter heat pump controller

| Type: CCYC005

| Setting-range: 8~40 Celsius

| Temperature control Accuracy : +/-1 Celsius

| Power supply: 220±10%(VAC), 50/60Hz

| Mode: cooling, heating, Auto

| Sensor type: NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K)

| Output:Compressor ,4-way valve, Fan motor, cycle water pump…etc

| Simulation sensor:Inlet water temperature sensor, Outlet temperature sensor, Climate temperature sensor…etc

| Dry contact input signal:Low pressure switch, Low pressure switch, Water flow switch…etc

| One compressor control

| With EEV function, 24 hour cycle Timing ON/OFF function

| With TUYA WIFI function

| Mounting size:  178×110×35mm

| Wring control : LED  display

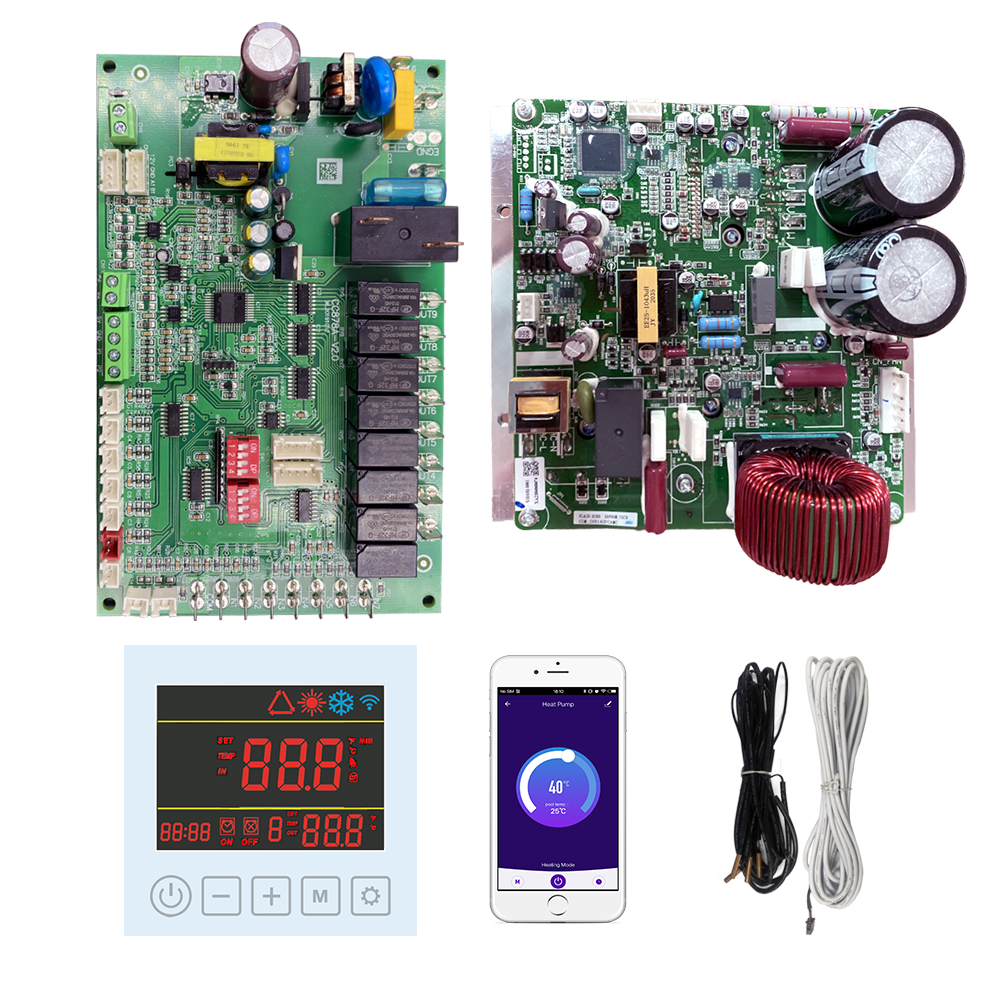

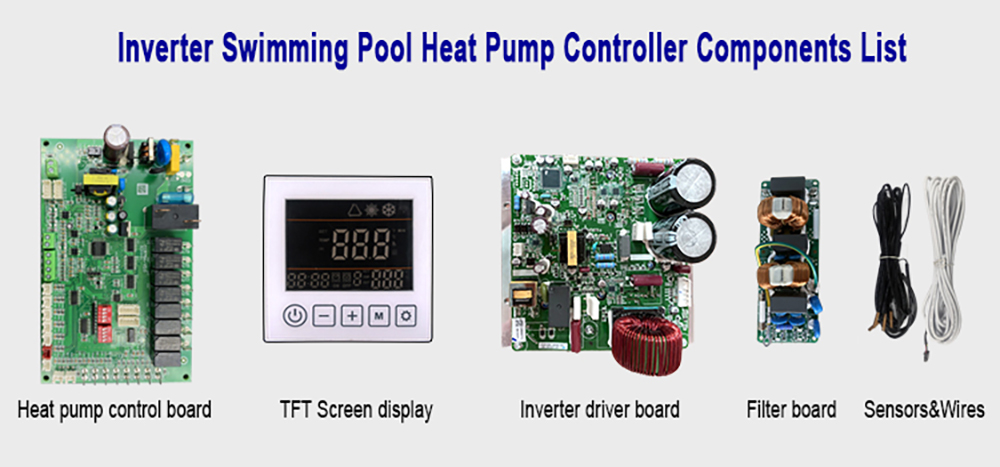

| Product list:Main board(1) +display(1)+connection wires(1) +temp.sensors(7) +Inverter driver  board(1)+Filter board(1pcs)

| Suitable for inverter swimming pool heat pump machine.

| Frequency conversion function makes the machine run more efficiently.
