CCRS001-1 Air source Tuya wifi domestic hot water heater heat pump controller

| Type: CCRS001-1

| Setting-range: 5~60 Celsius

| Temperature control Accuracy : +/-1 Celsius

| Power supply: 220±10%(VAC), 50/60Hz

| Mode: cooling, heating

| Sensor type: NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K)

| Output:Compressor ,Electronic heater, Fan motor,water circular pump, Four-way valve…etc

| Simulation sensor: Water tank temperature sensor, Outlet temperature sensor, Ambient temperature sensor, Discharge temperature sensor, Coil  temperature sensor, Suction temperature sensor…etc

| Dry contact input signal:Low pressure switch, Low pressure switch, Water flow switch…etc

| One compressor control

| With EEV function, 24 hour cycle Timing ON/OFF function

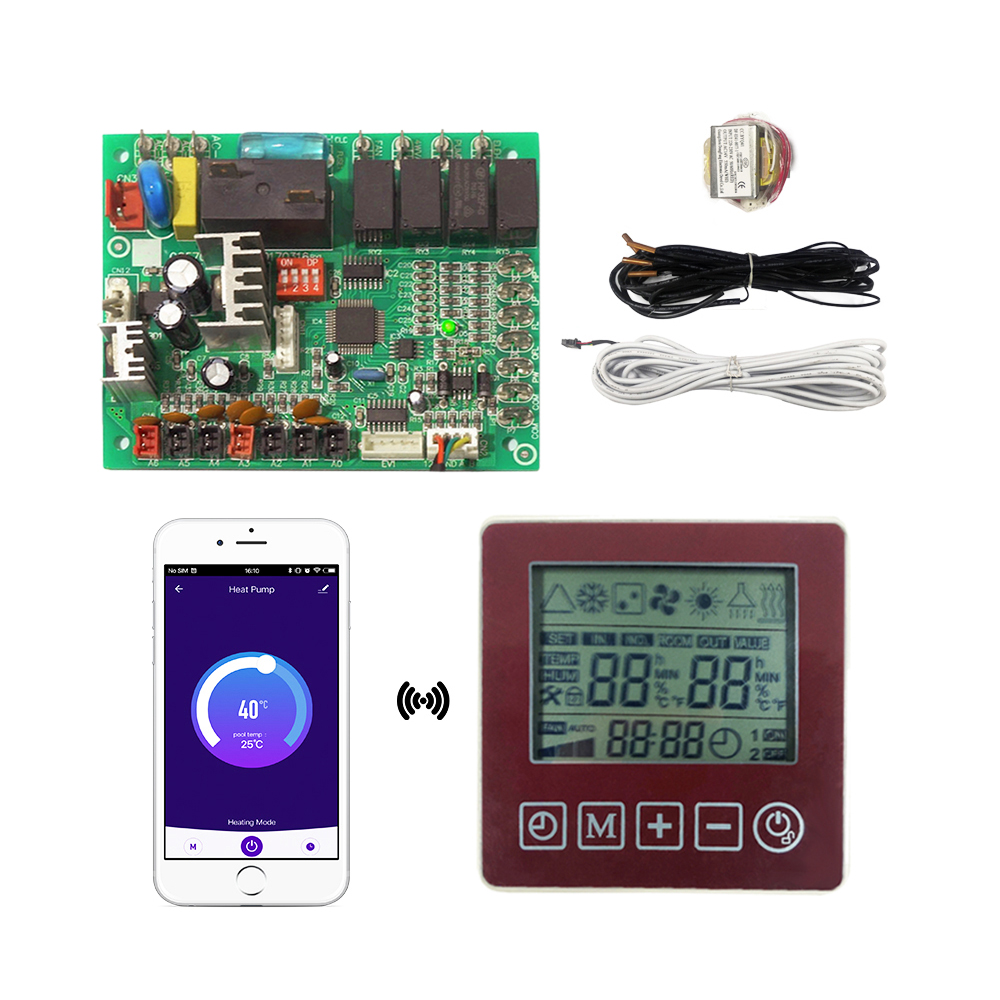

| With Tuya WIFI function

| Mounting size:  110×90×25mm

| Wring control : LCD  display

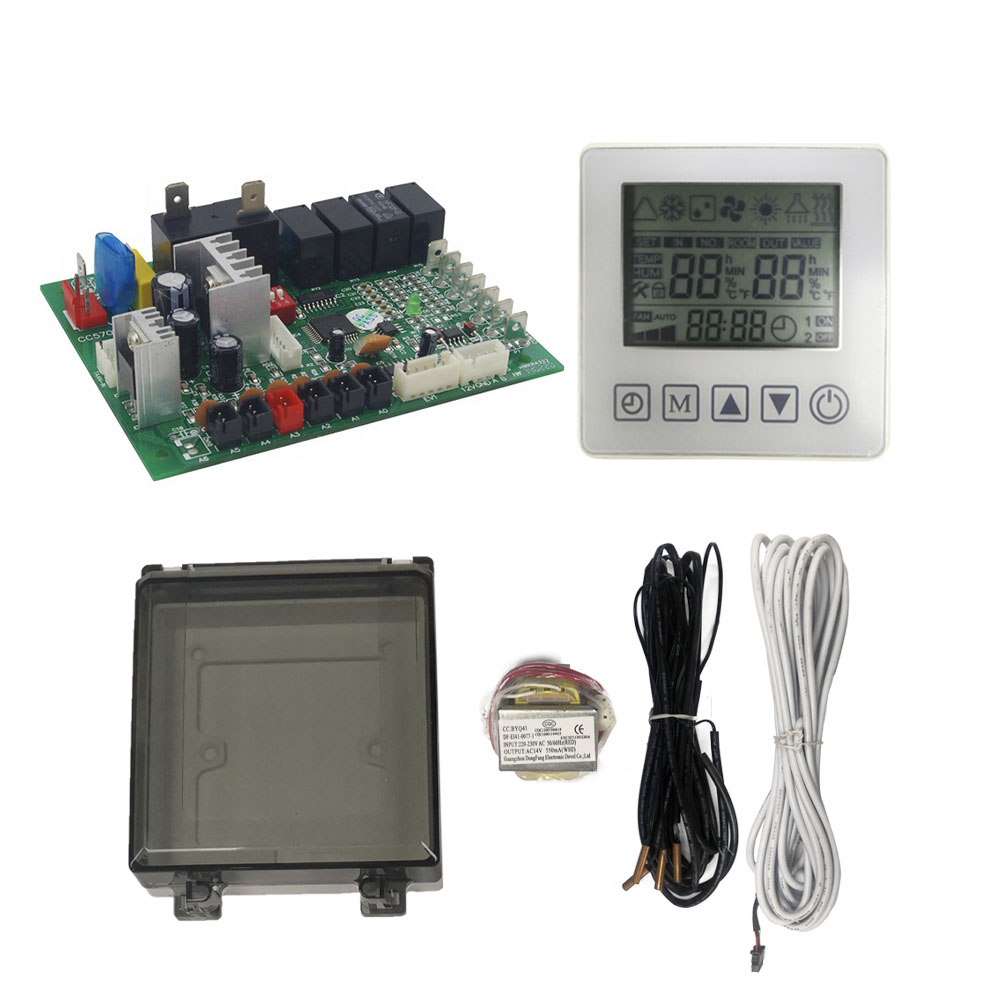

| Product list: Main board(1) +LCD display(1)+connection wires(1) +temp.sensors(7) +transformer (1)

| Suitable for domestic hot water heater pump machine.
