CCHW002-1 commercial single system water heating heat pump Controller
| Type: CCHW002-1
| Setting-range: 5~60 Celsius
| Temperature control Accuracy : +/-1 Celsius
| Power supply: 380/220±10%(VAC), 50/60Hz
| Mode: cooling, heating
| Sensor type: NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K)
| Output:Compressor ,Electronic heater, Fan motor,water circular pump, Four-way valve…etc
| Simulation sensor: Water tank temperature sensor, Outlet temperature sensor, Ambient temperature sensor, Discharge temperature sensor, Coil temperature sensor, Suction temperature sensor…etc
| Dry contact input signal: Low pressure switch, Low pressure switch, Water flow switch…etc
| One compressor control, With EEV controller
| Air source or ground source are optional
| With three phase function,Compressor current detection
| With Tuya WIFI function
| Mounting size: 173×104×25mm

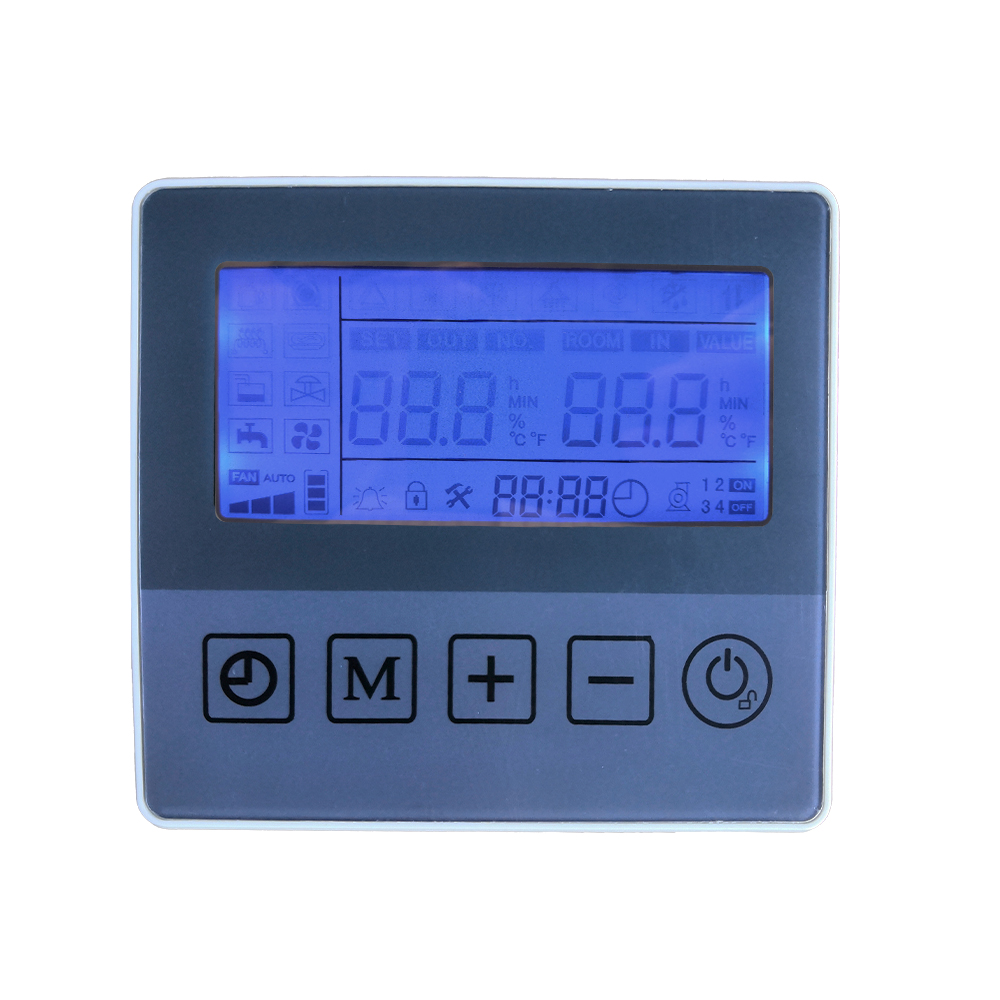

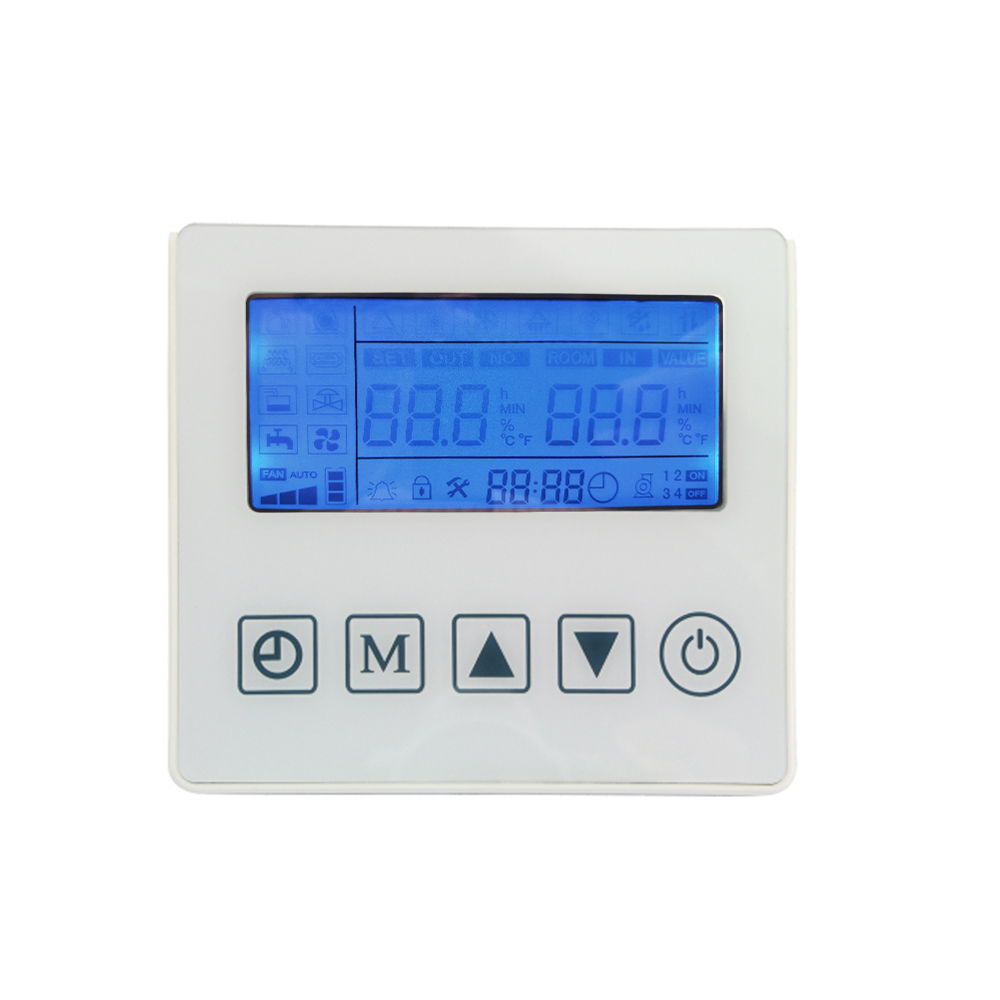

| Wring control : LCD display

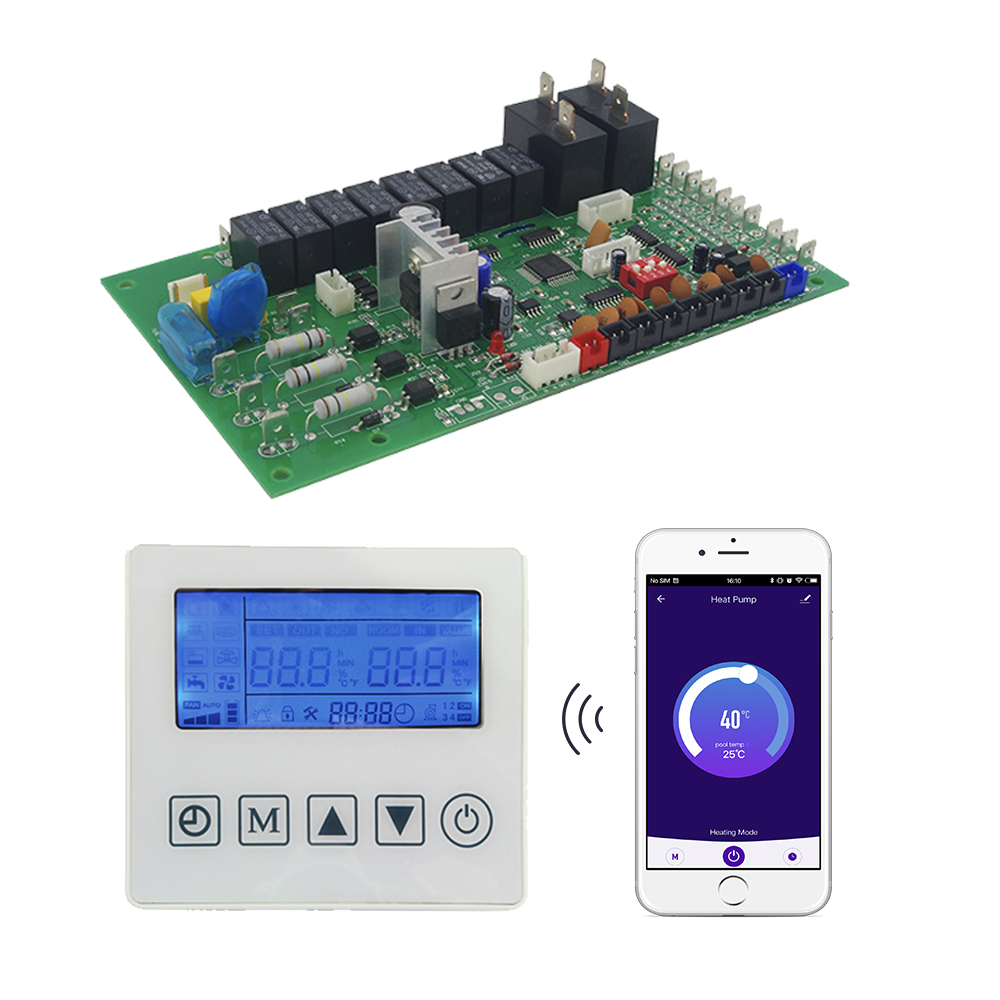

| Product list: Main board(1) +LCD display(1)+connection wires(1) +temp.sensors(9) +transformer (1)
| Suitable for commercial swimming pool / water heating heat pump machine.
