CCHW003 commercial inverter heating heat pump controller

| Type: CCHW003

| Setting-range: 5~60 Celsius

| Temperature control Accuracy : +/-1 Celsius

| Power supply: 380/220±10%(VAC), 50/60Hz

| Mode: cooling, heating

| Sensor type: NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K)

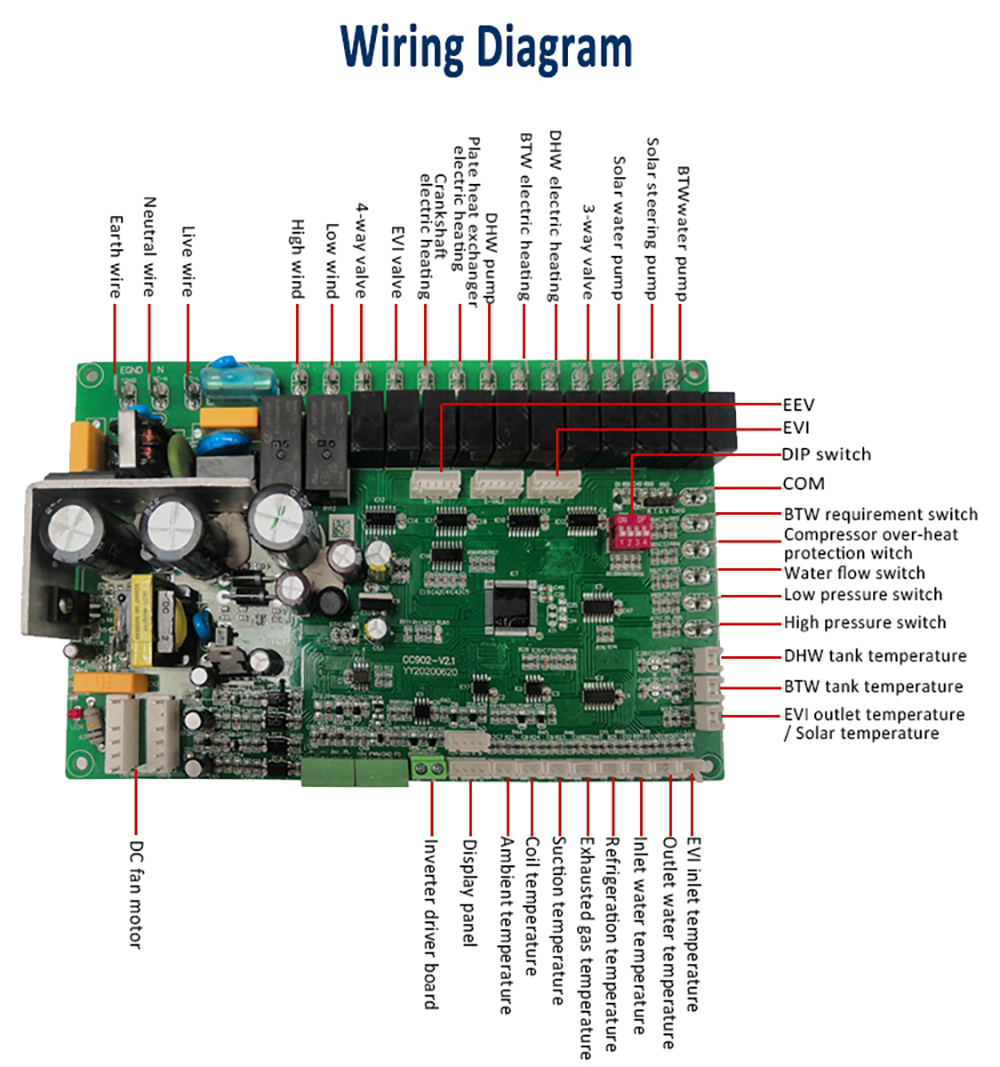

| Output: Compressor , Electronic heater, fan, water pump, Crankshaft heater, Backwater value, Water supply pump, Solar water pump…etc

| Simulation sensor: Water tank temperature sensor, Outlet temperature sensor, Ambiment temperature sensor, Discharge temperarure sensor, Coil  temperarure sensor, Suction temperature sensor, Backwater  temperature sensor, Solar water temperature sensor…etc.

| Dry contact input signal: High pressure switch ,Low pressure switch ,Water flow switch,Air conditioning demand switch…etc

| One compressor control, Compressor current detection, with EEV control, EVI control

| AC fan, DC fan are optional

| Swimming pool, hot water or HVAC are optional

| Power off memory function

| With Tuya WIFI function

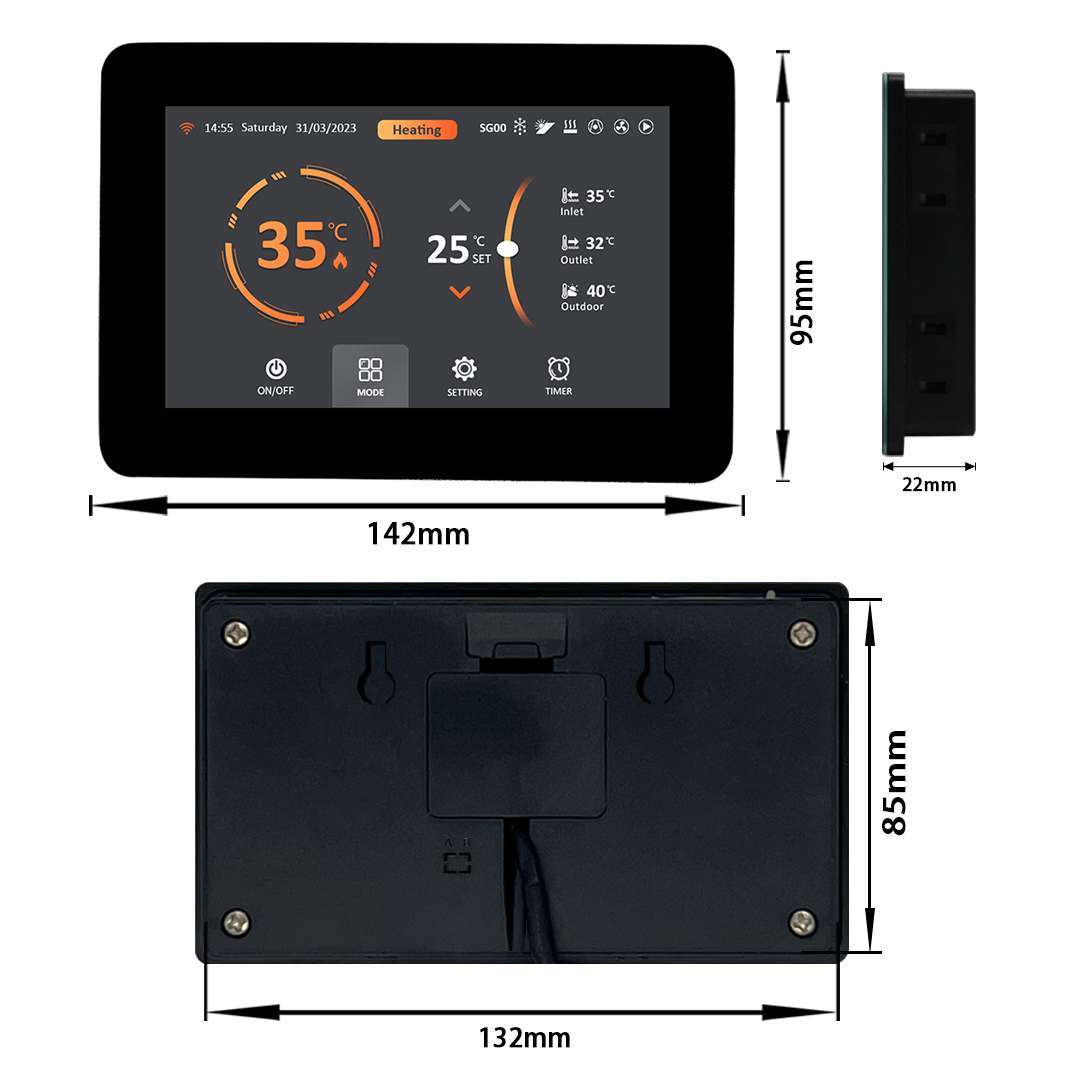

| Mounting size:  210*134*34mm

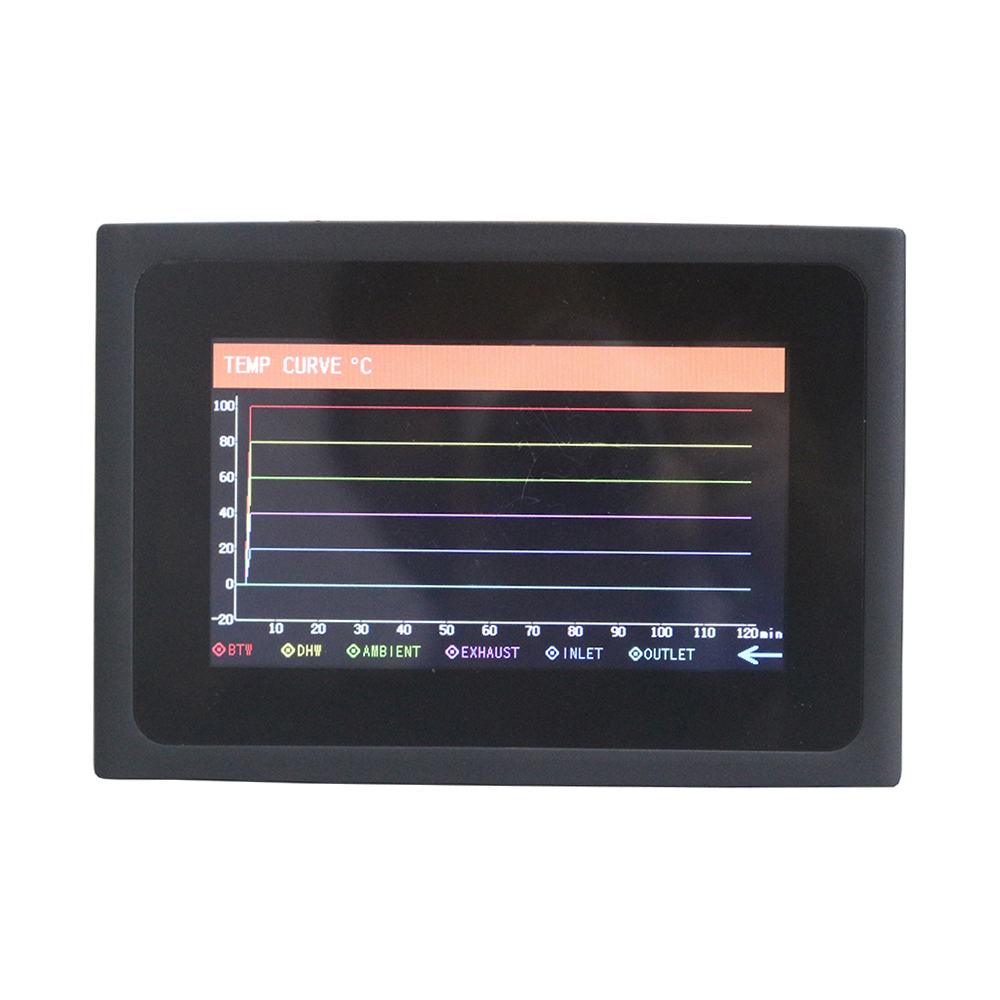

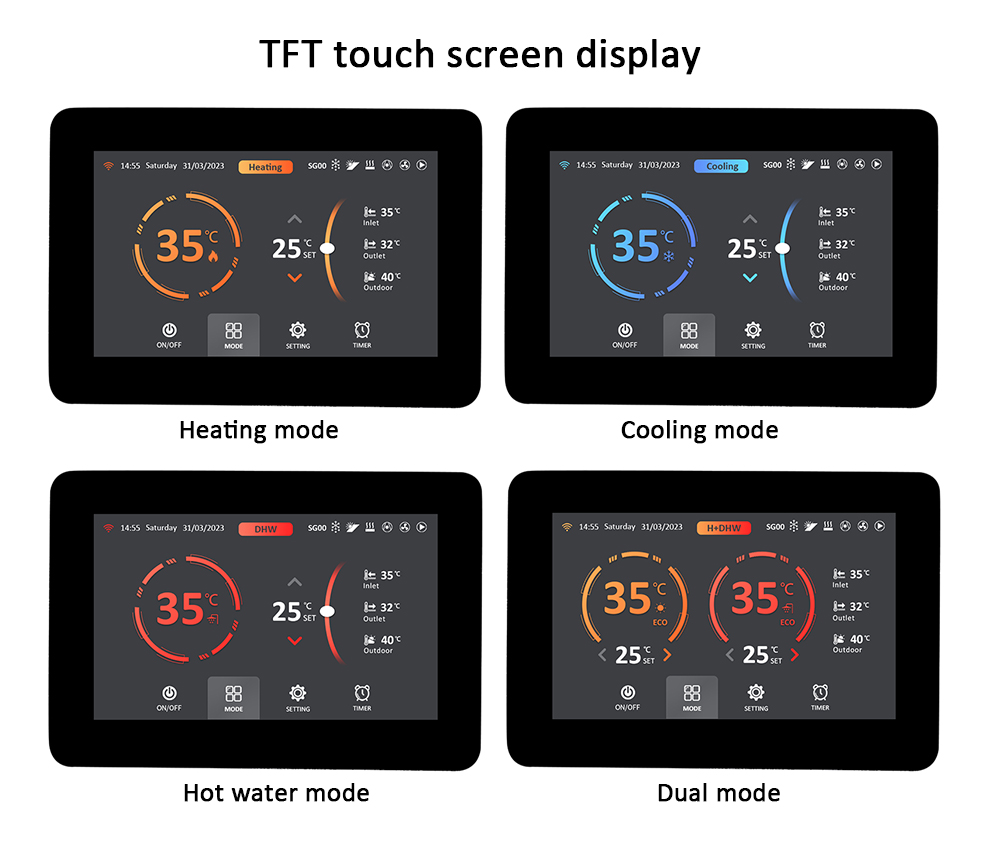

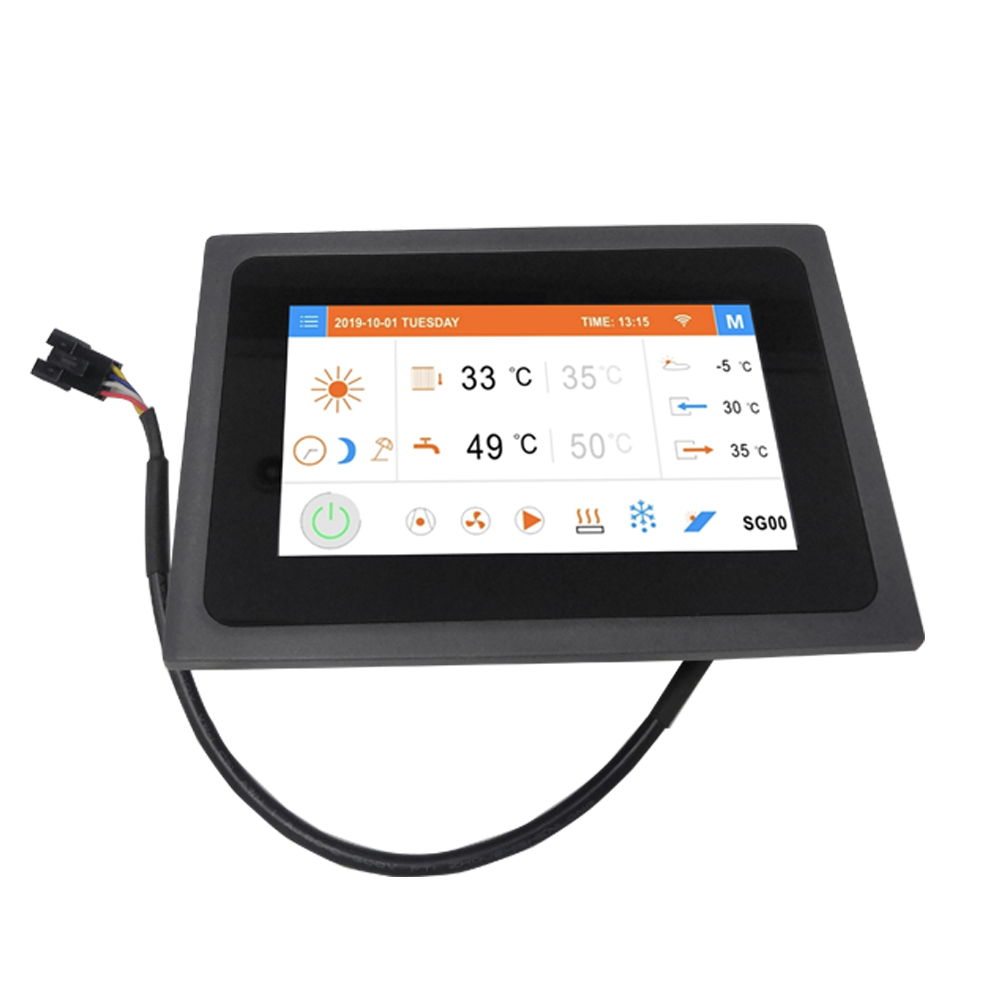

| Wring control : TFT color touch display

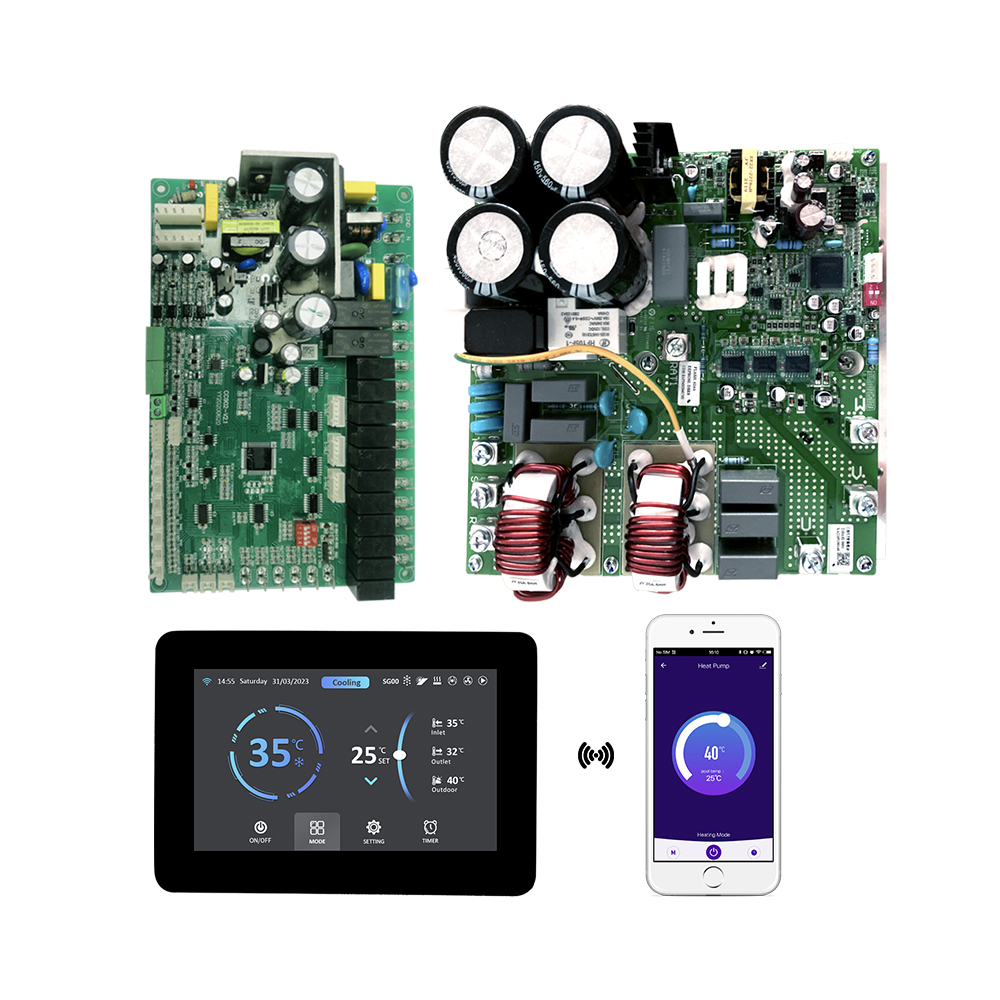

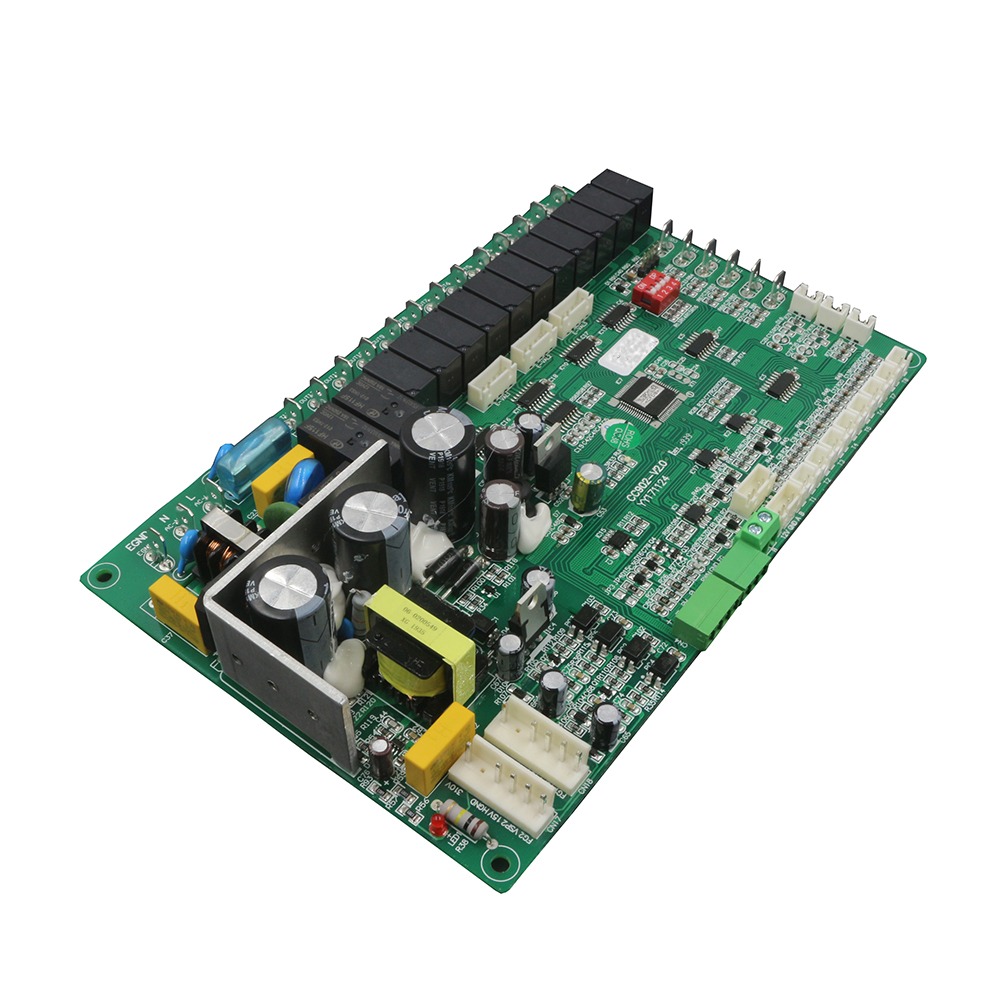

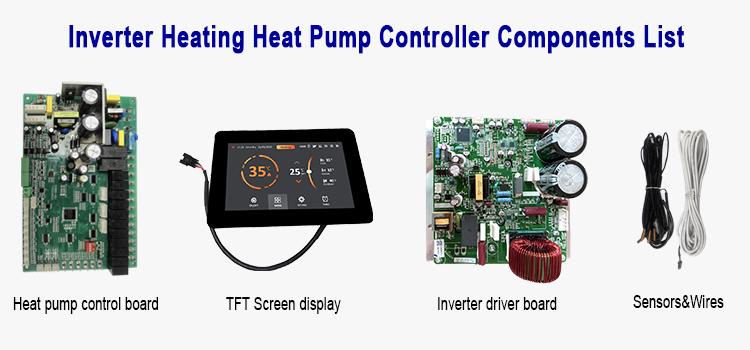

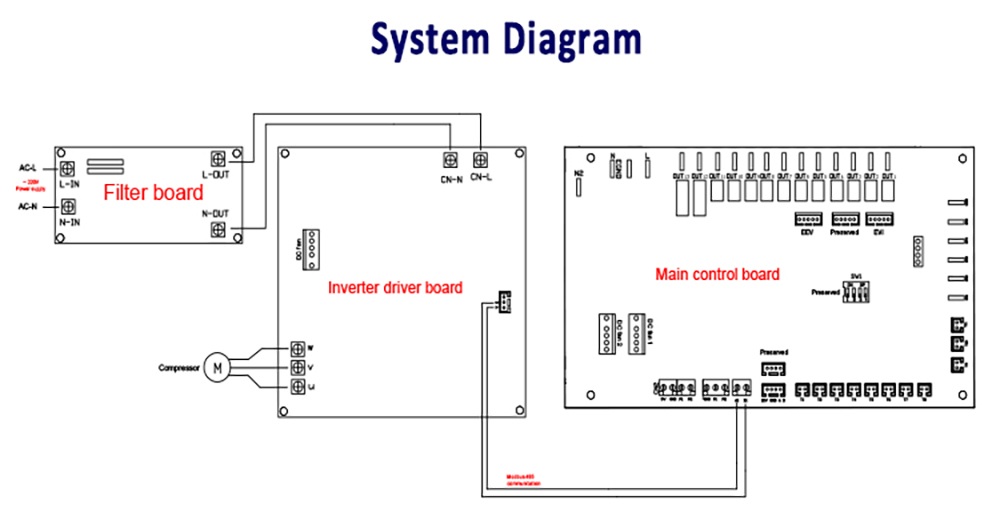

| Product list: :Main board(1) +Inverter driver(1)+display(1)+connection wires(2) + temp.sensors(11)

| Suitable for commercial heating inverter heat pump machine.
