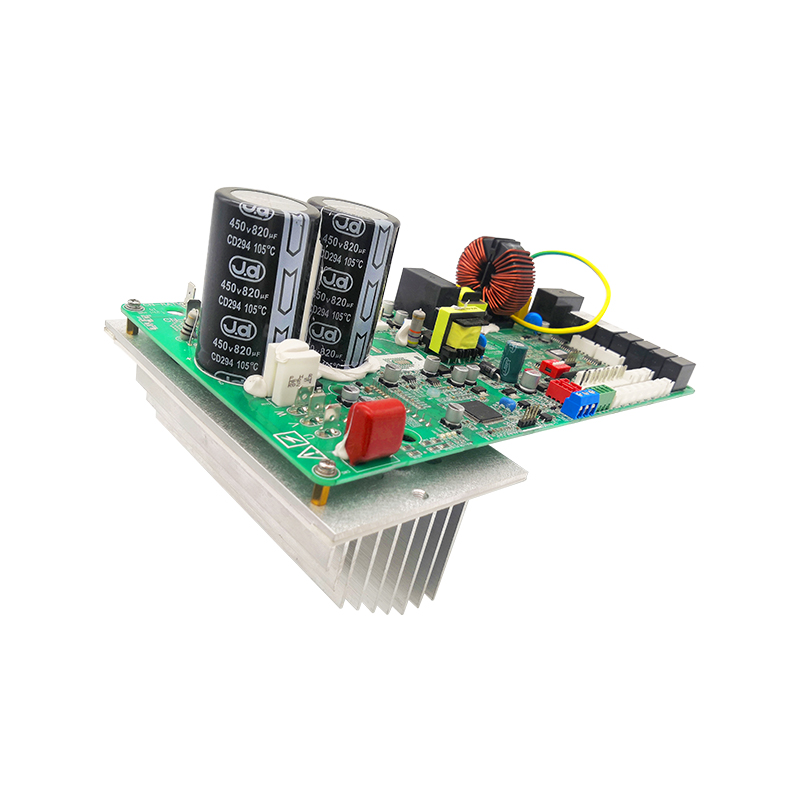

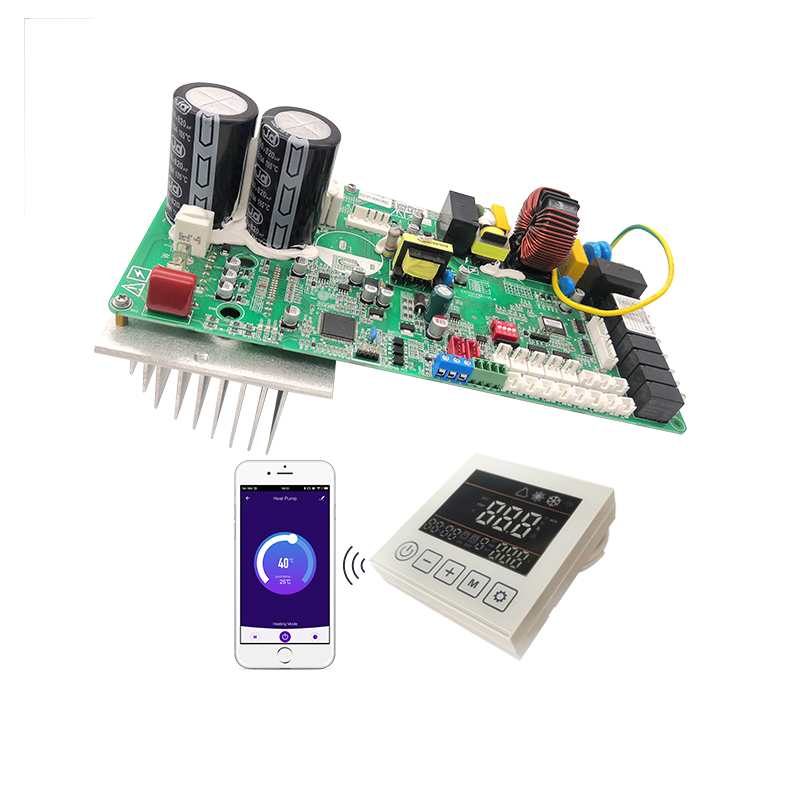

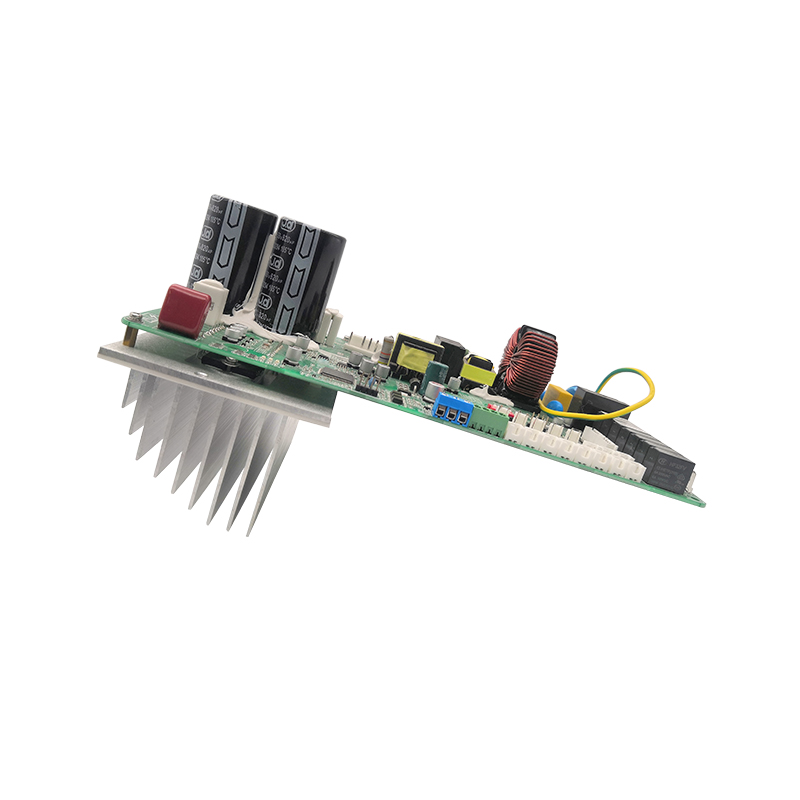

CCYC004-2 1.5KW-2.8KW Air source Tuya wifi swimming pool Inverter heat pump controller
| Type: CCYC004-2
| Setting-range: 8～40 Celsius
| Temperature control Accuracy : +/-1 Celsius
| Power supply: 220±10%(VAC), 50/60Hz
| Inverter Power：1.5KW-2.8KW
| Inverter frequency range：20HZ-120HZ
| Mode: cooling, heating, Auto
| Sensor type: NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K)
| Output:Compressor ,4-way valve, Fan motor, cycle water pump…etc
| Simulation sensor:Inlet water temperature sensor, Outlet temperature sensor, Climate temperature sensor…etc
| Dry contact input signal:Low pressure switch, Low pressure switch, Water flow switch…etc
| One compressor control
| With EEV function, 24 hour cycle Timing ON/OFF function
| With WIFI function
| Mounting size: 267×140×160mm
| Wring control : LED display or LCD display
| Product list:Main board(1) +display(1)+connection wires(1) +temp.sensors(7) +reactor(1)
| Suitable for inverter swimming pool heat pump machine.
| Inverter compressor drive module and system operation control module are integrated. Reduce installation space to achieve the purpose of reducing costs.
