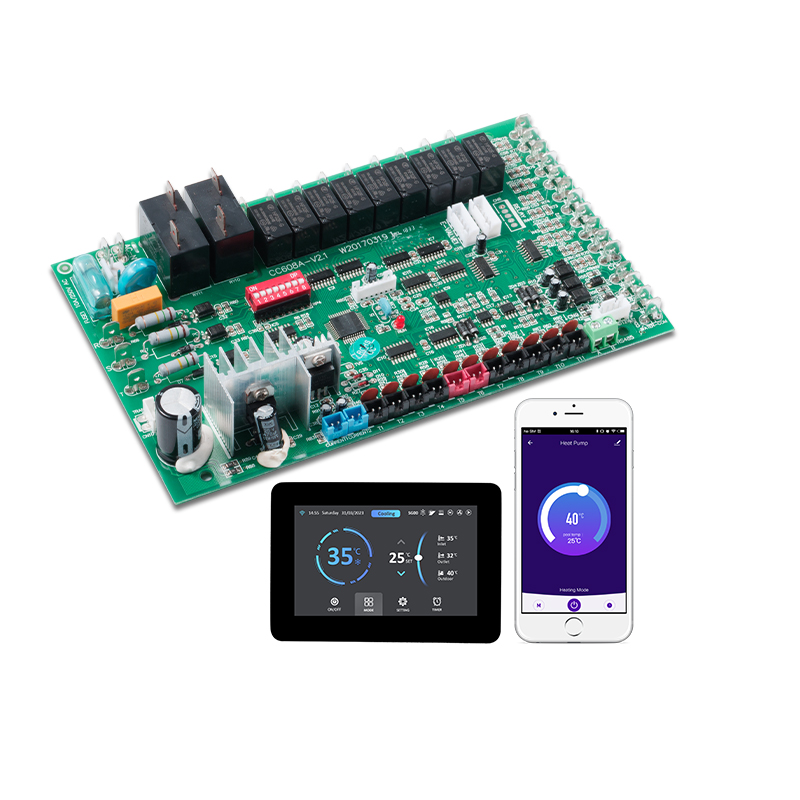

CCHW001 commercial double system heating  heat pump Controller

| Type: CCHW001
| Setting range: 5~60 Celsius
| Temperature control Accuracy : +/-1 Celsius
| Power supply: 380/220±10%(VAC), 50/60Hz
| Mode: cooling, heating
| Sensor type: NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K)
| Output:Compressor, Electronic heater, Fan motor,water circular pump, Four-way valve…etc
| Simulation sensor: Water tank temperature sensor, Outlet temperature sensor, Ambient temperature sensor, Discharge temperature sensor, Coil  temperature sensor, Suction temperature sensor…etc
| Dry contact input signal: Low pressure switch, Low pressure switch, Water flow switch…etc
| Two compressor control, With EEV controller
| Air source or ground source are optional
| With three phase function,Compressor current detection
| Power off memory function
| With Tuya WIFI function
| Mounting size:  198×120×25mm
| Wring control : TFT display
| Product list: Main board(1) +display(1)+connection wires(1) +temp.sensors(12) +transformer (1)
| Suitable for commercial swimming pool / water heating heat pump machine.
