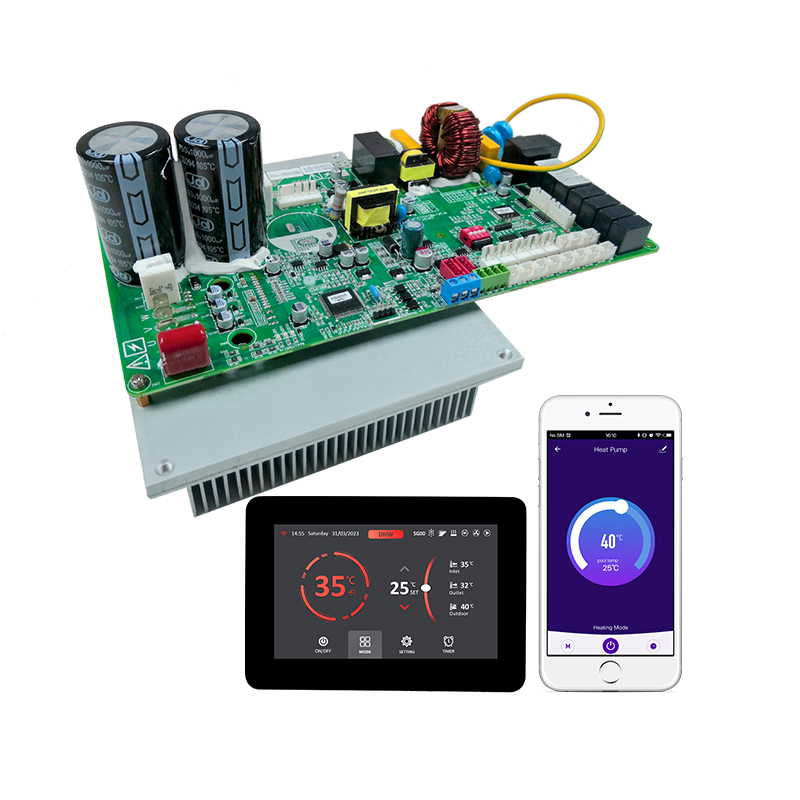

CCHW008 Commercial Inverter Heating Cooling Hot Water Heat Pump Controller PCBA

* Type: CCHW008

*  Setting-range: 5~60 Celsius

*  Temperature control Accuracy : +/-1 Celsius

*  Power supply: 380/220±10%(VAC), 50/60Hz

*  Mode: Heating & Cooling & Hot Water

*  Sensor type: NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K)

*  Output: Water pump, Fan, Electric chassis heating, Electric crankshaft heating, Three-way valve, Four-way valve, Waterway electric Heating, Solenoid valve…etc

*  Simulation sensor: Water inlet temperature, Water outlet temperature, Return gas temperature, Exhaust gas temperature, Ambient temperature, Evaporator coil temperature, Cooling coil temperature, Water tank temperature…etc.

*  Dry contact input signal: Compressor high pressure switch, Compressor low pressure switch, Water flow switch, emergency switch, Air Conditioning Demand Switch…etc

*  Two pressure sensor input: High pressure sensor, Low pressure sensor

*  One compressor control, Compressor current detection, with EEV control, EVI control

*  AC fan, DC fan are optional

*  Swimming pool, hot water or HVAC are optional

*  Power off memory function

*  With Tuya WIFI function

*  Wring control : TFT color touch display

*  Product list: Main board +display+connection wires+ temp.sensors

*  Suitable for commercial heating inverter heat pump machine.
