CCIB001 Cold plunge pools heat pump controller pcba

| Type: CCIB001

| This pcba is designed for cold plunge pools heat pump.

| Setting range:  3~45°C(50℉～113℉)

| Mounting size: 100**99*35mm

| Temperature control Accuracy : +/-1 Celsius

| Power supply: 110V or 220V±10%(AC), 50/60Hz

| Working modes: Heating mode, cooling mode, Auto mode.

| Sensor type: NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K)

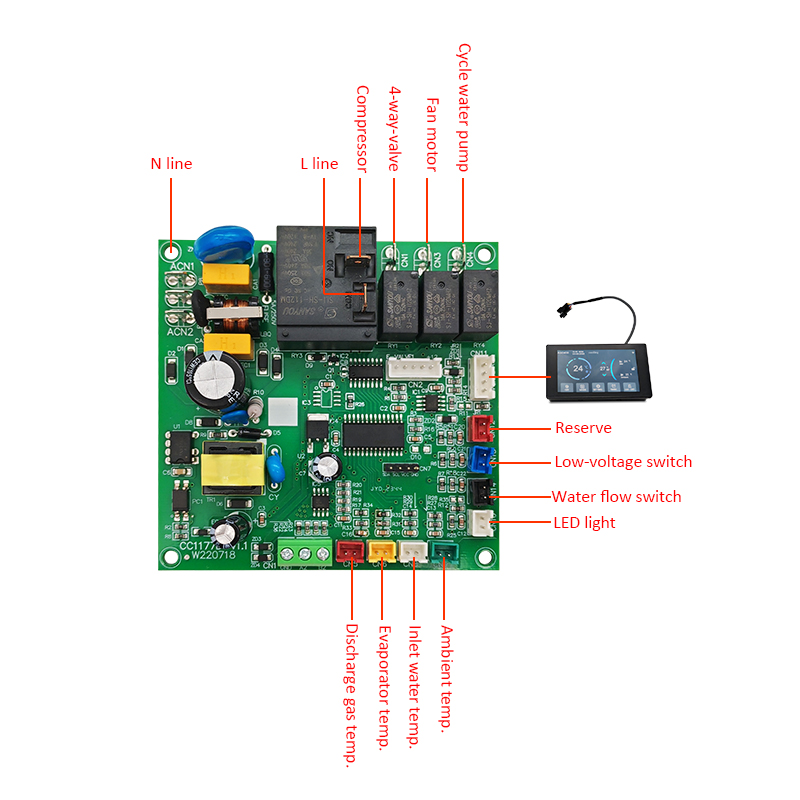

| Output: Compressor, 4-way-valve, Fan motor, Cycle water pump…etc

| Simulation sensor: Inlet water temperature sensor, Discharge gas temperature sensor, Ambient temperature sensor, Evaporator temperature sensor…etc

| Dry contact input signal: Low pressure switch, Water flow switch…etc

| Power-off memory, don't worry about data loss.

| It can be controlled remotely via a mobile APP.

| F degree and C degree optional.

| It can be controlled remotely via a mobile APP.

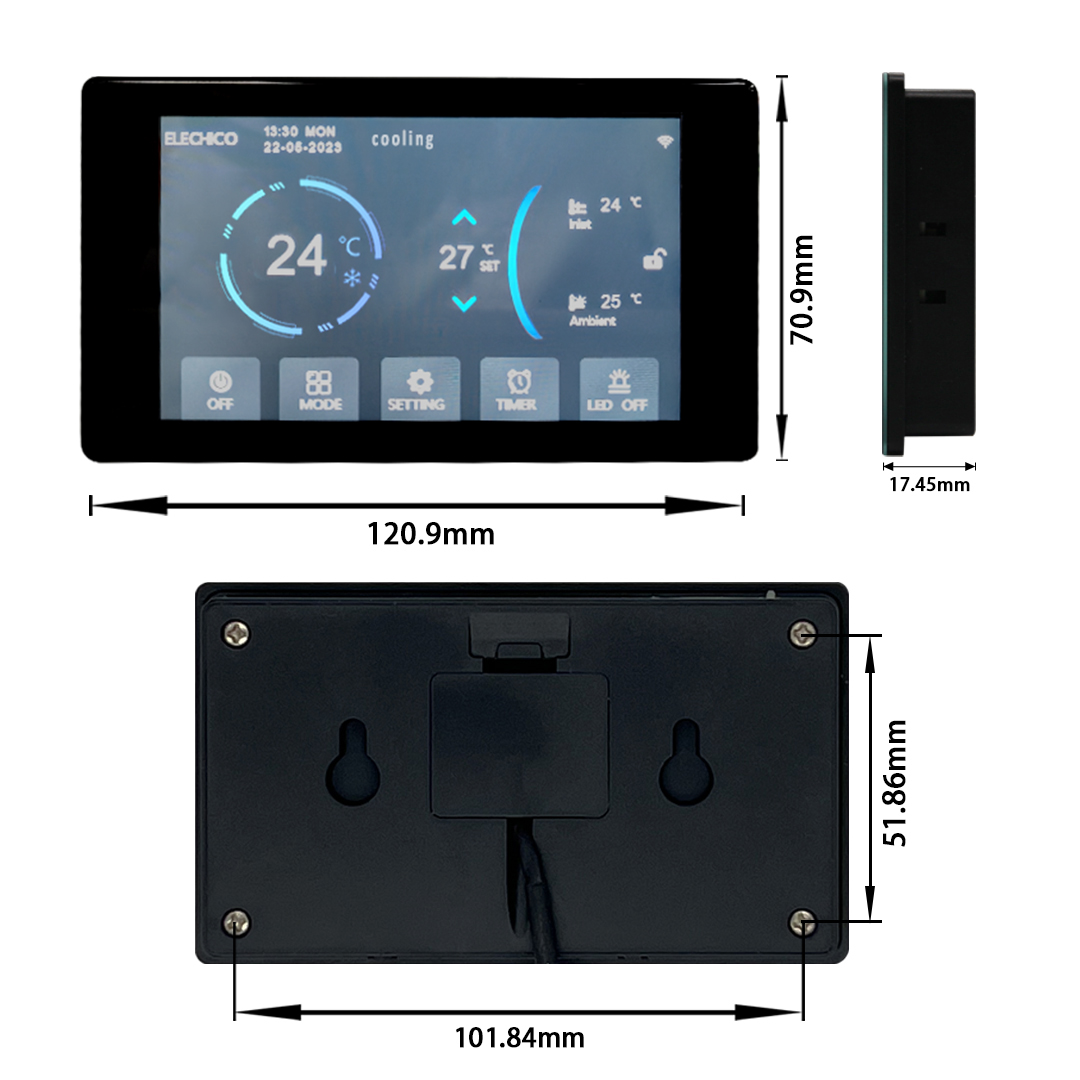

| 4.3 inch TFT touch screen display, visual icon, easy operation, quick parameter setting.

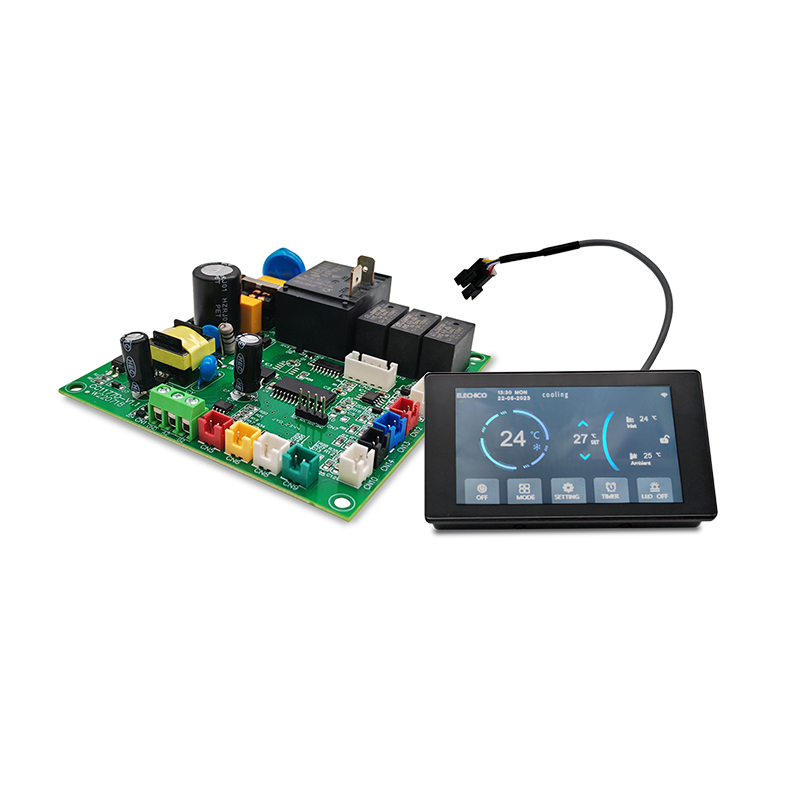

| Product list: Main board(1) +display(1)+connection wires(1) +temp.sensors(4) +transformer (1)
