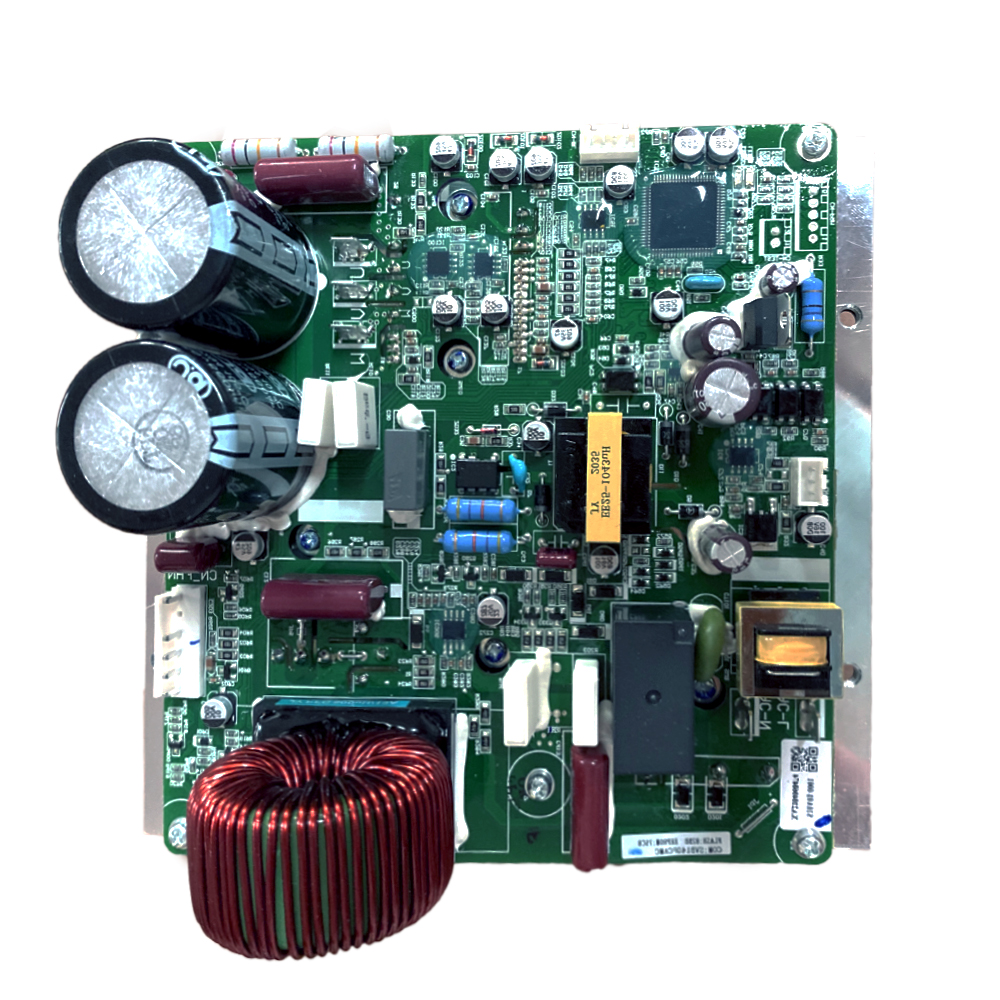

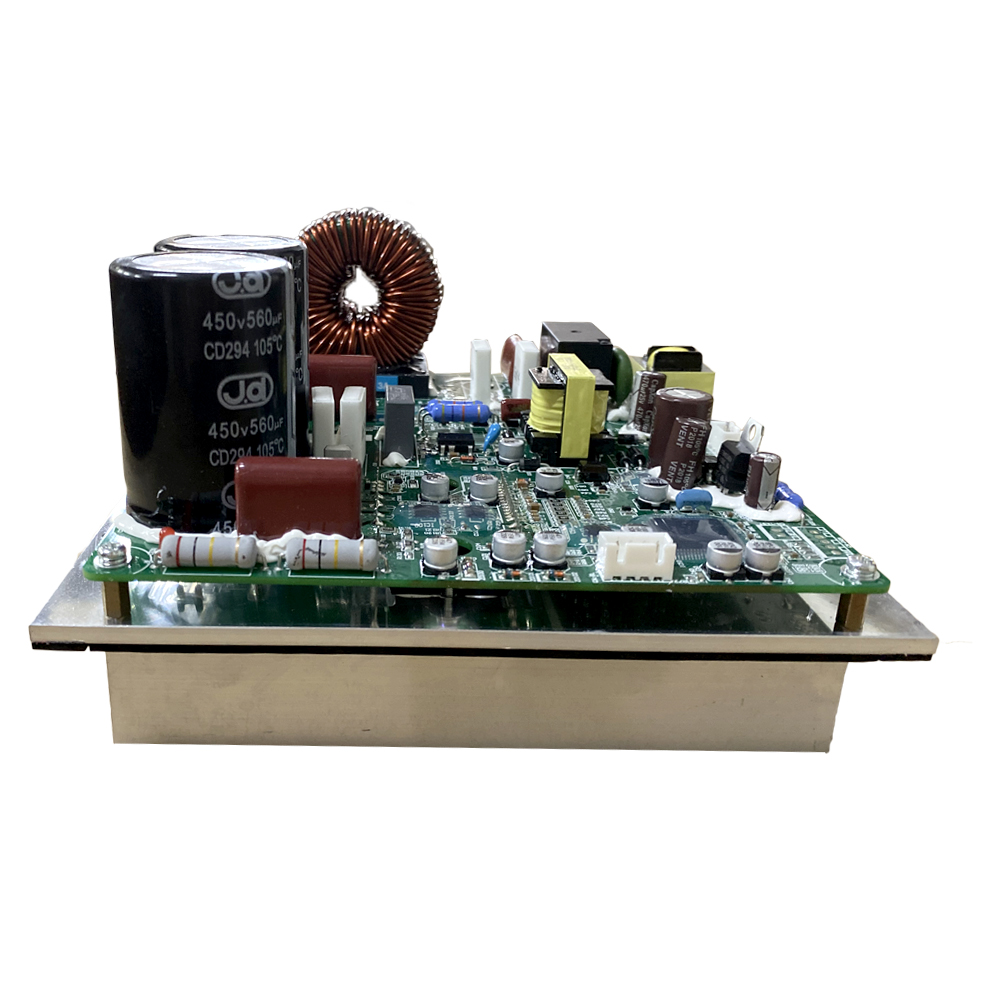

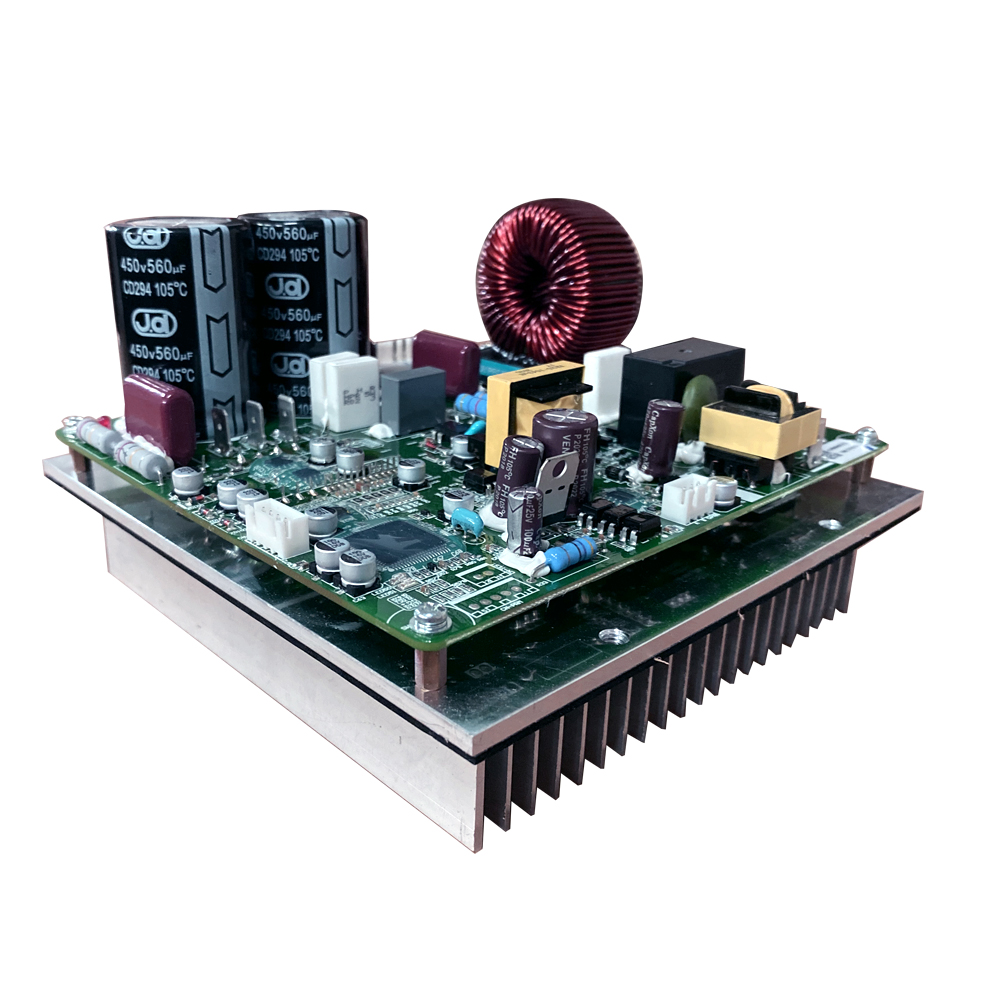

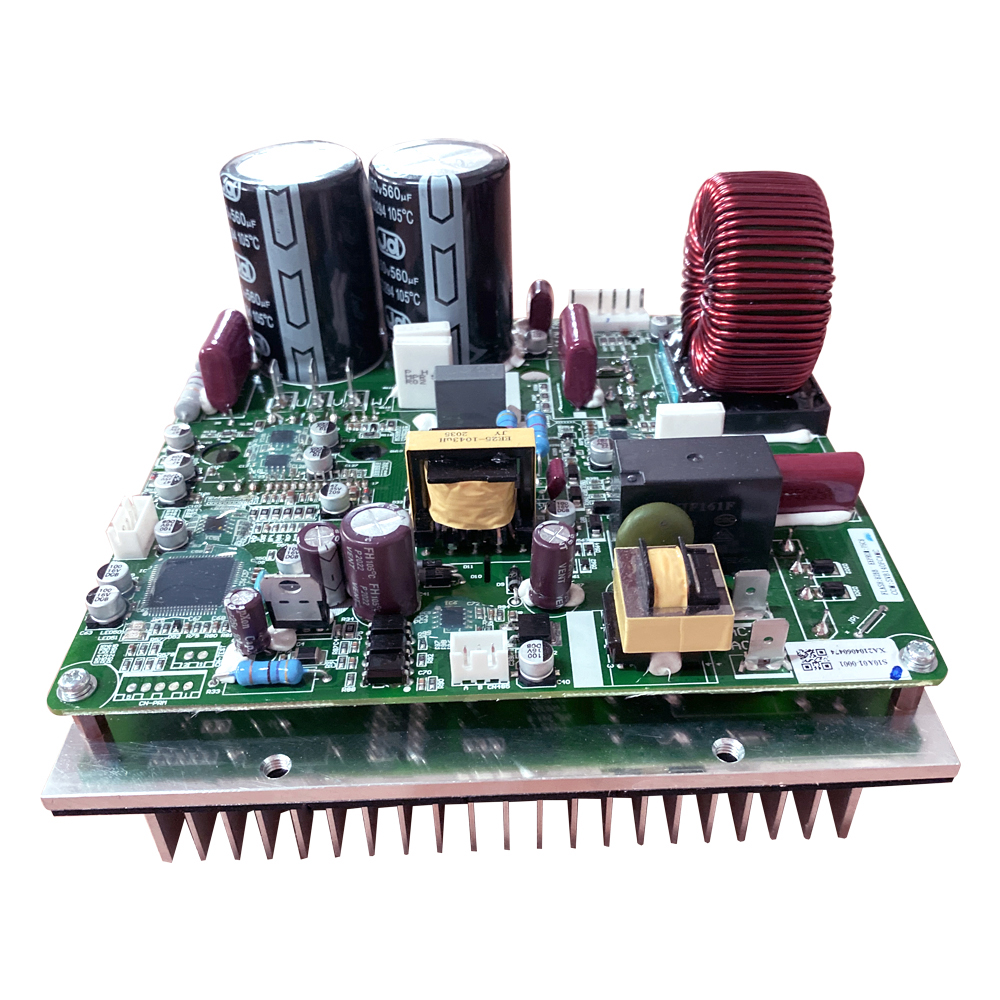

2.2 kw to 3.5kw single phase of inverter compressor driver board



ELECHICO has completed the research and development of single-phase and three-phase full series inverter compressor control products, and widely used in heat pump, air conditioning, swimming pool machine, refrigeration units and other industries.



Features

  Isolated RS485 differential serial communication

|  Built-in reactor

|  External two-stage EMC filtering,Convenience for electronic control box internal structure design

|  Compatible with dc fan control

|  Small size for easy installation



Parameters

Type
180 °sinusoidal DC inverter driver
Rated input voltage
Single phase standard voltage 220 V 50 / 60 Hz, operable voltage 170-265 V
Input maximum power
2.2-3.5KW 220V AC
Input maximum current
10-16A
PFC
PF value (0.90-0.99)
Carrier frequency
5.0k Hz (adjustable according to compressor noise)
Output mechanical frequency
15-120Hz (ultimately according to the specification of the compressor)
Control type
180-degree sinusoidal vector driving
Communication interface
RS485
Communication protocol
Standard Modbus RTU Baud rate 1200 bps
Operating temperature range
-20 To 60℃
Operating humidity range
<95% and noncondensing
