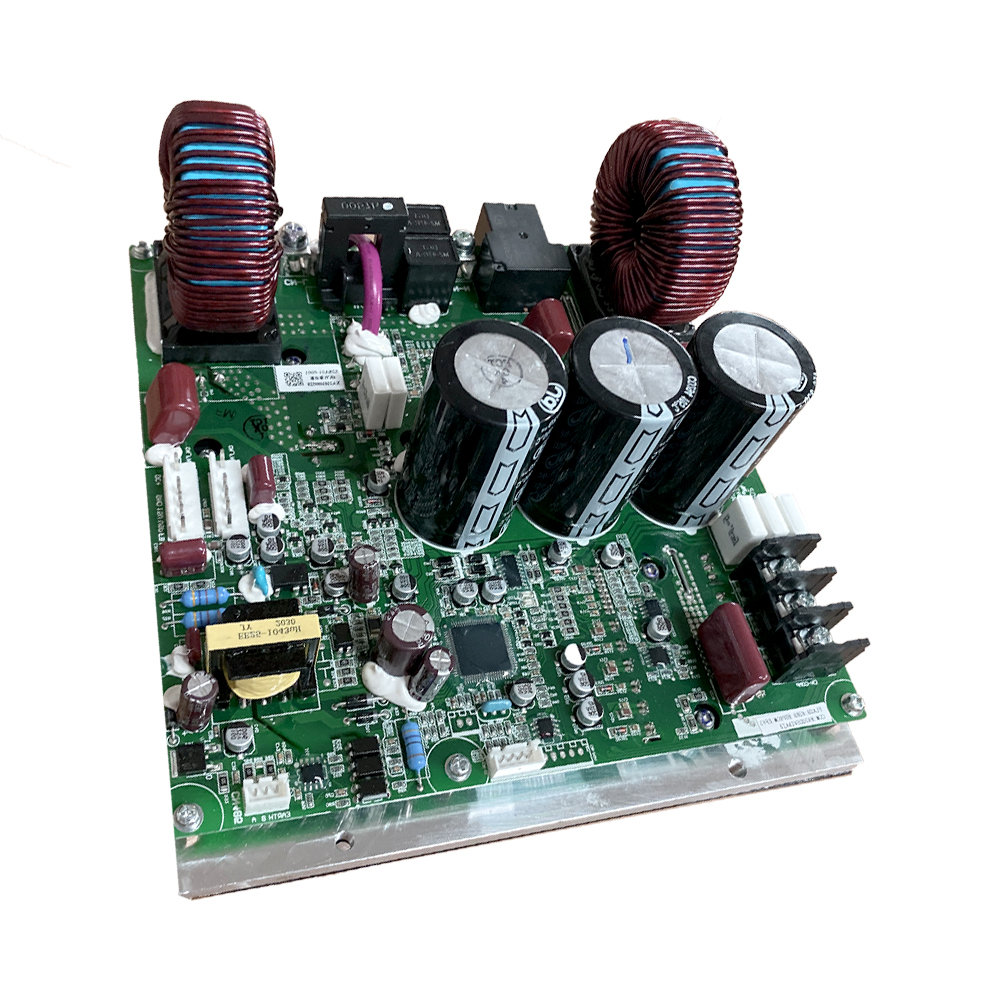

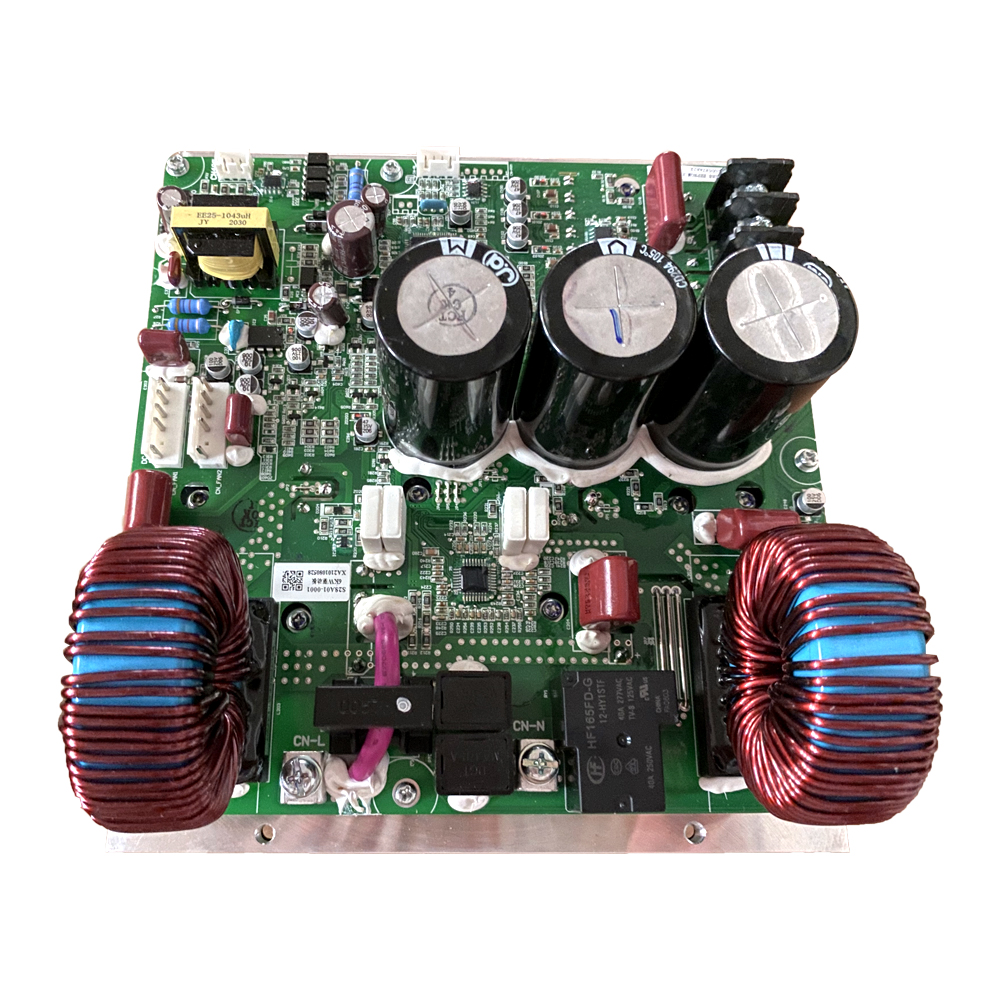

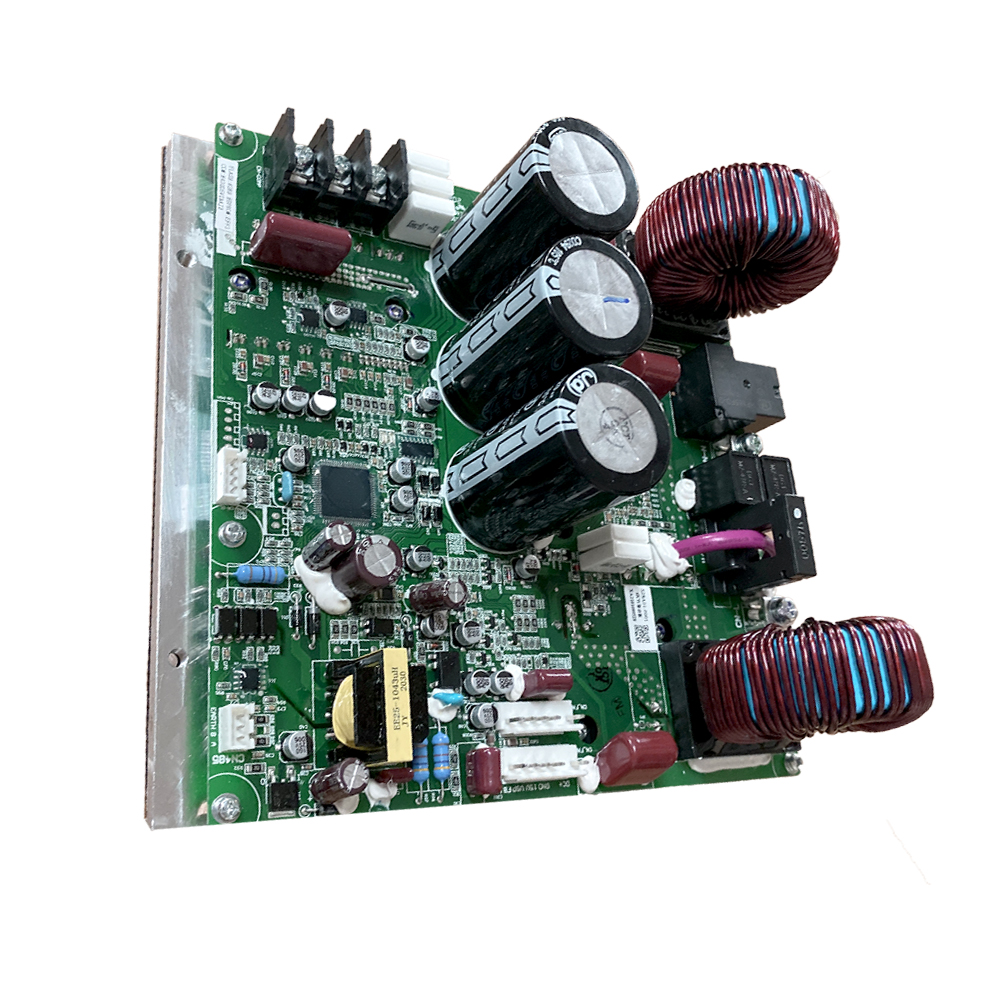

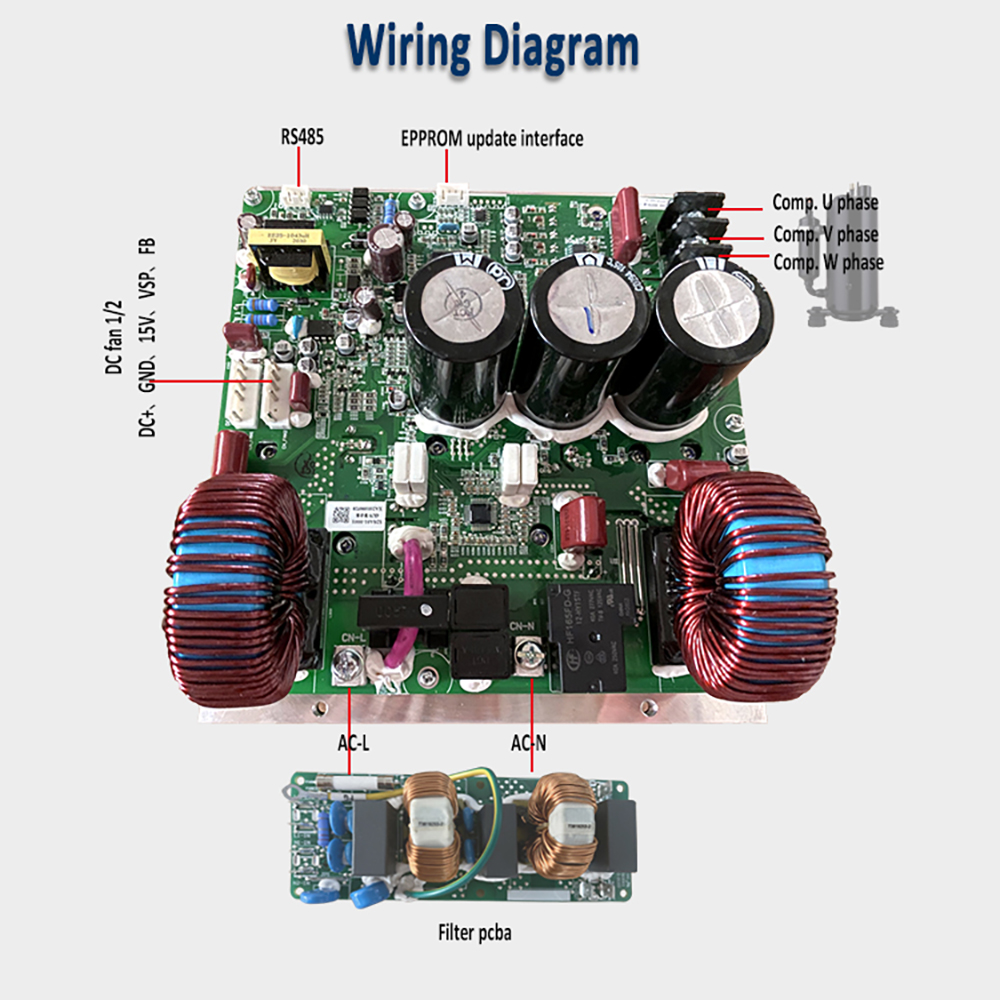

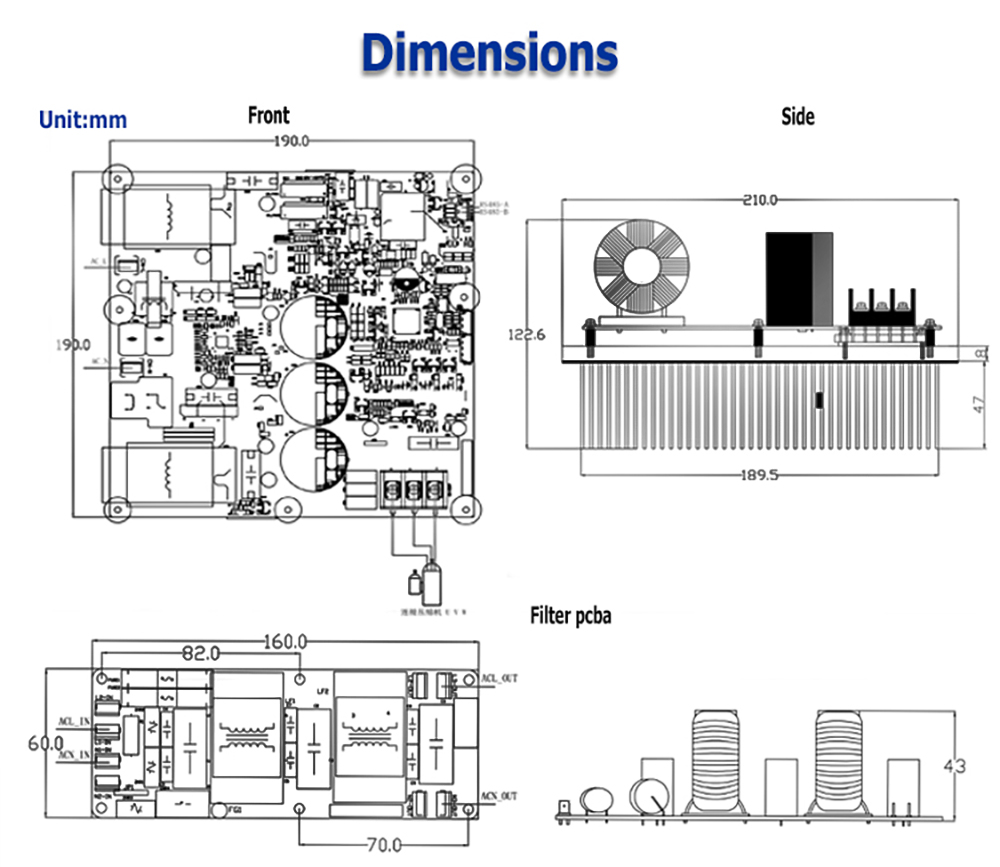

4.7 kw to 6.6kw single phase of inverter compressor driver board
ELECHICO has completed the research and development of single-phase and three-phase full series inverter compressor control products, and widely used in heat pump, air conditioning, swimming pool machine, refrigeration units and other industries.
Features
| Staggered parallel PFC design, Built-in reactor
| Compatible with two dc fans control
| Single resistance sampling and vector control algorithm
| DC overvoltage and undervoltage protection, module overtemperature
| Compressor over-power and under-phase protection function
Parameters
|
Type
|
180 °sinusoidal DC inverter driver
|
|
Rated input voltage
|
Single phase standard voltage 220 V 50 / 60 Hz, operable voltage 170-265 V
|
|
Input maximum power
|
4.7-6.0KW 220V AC
|
|
Input maximum current
|
22-30A
|
|
PFC
|
PF value (0.90-0.99)
|
|
Carrier frequency
|
5.0k Hz (adjustable according to compressor noise)
|
|
Output mechanical frequency
|
15-120Hz (ultimately according to the specification of the compressor)
|
|
Control type
|
180-degree sinusoidal vector driving
|
|
Communication interface
|
RS485
|
|
Communication protocol
|
Standard Modbus RTU Baud rate 1200 bps
|
|
Operating temperature range
|
-20 To 60℃
|
|
Operating humidity range
|
<95% and noncondensing
|
