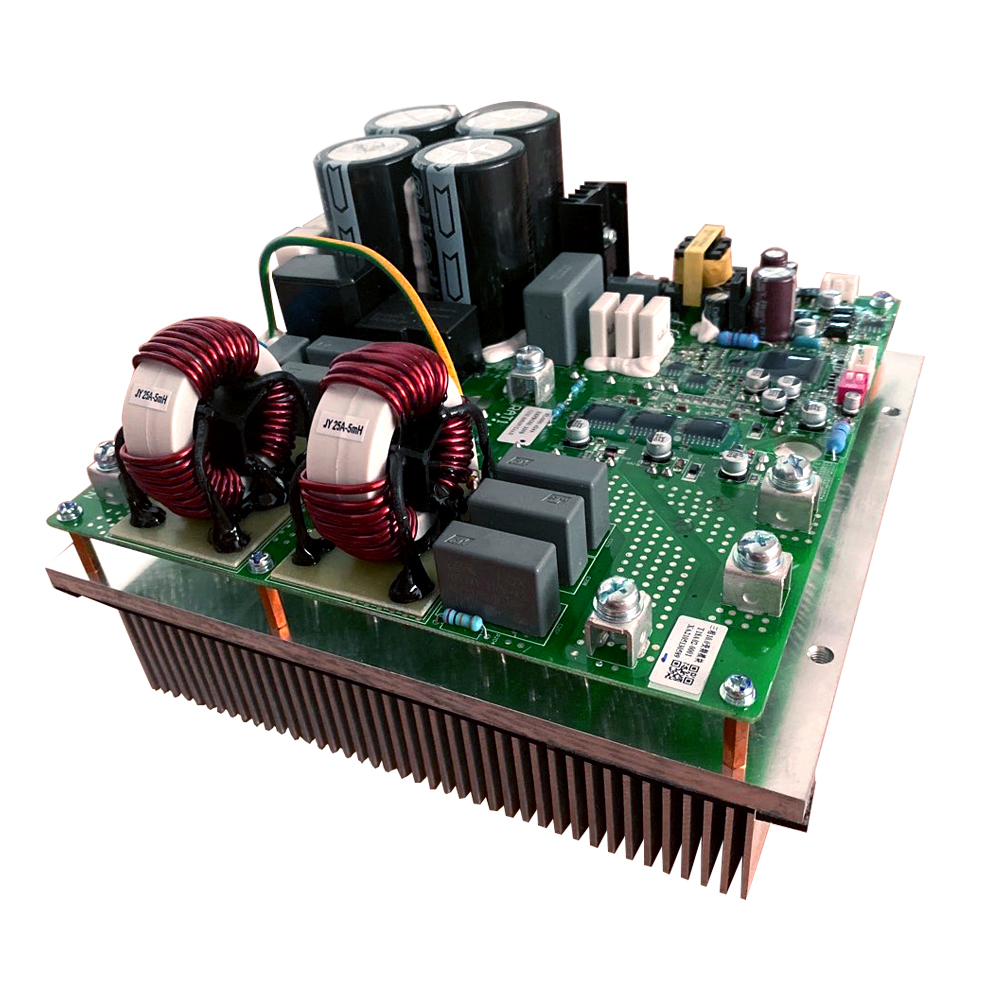

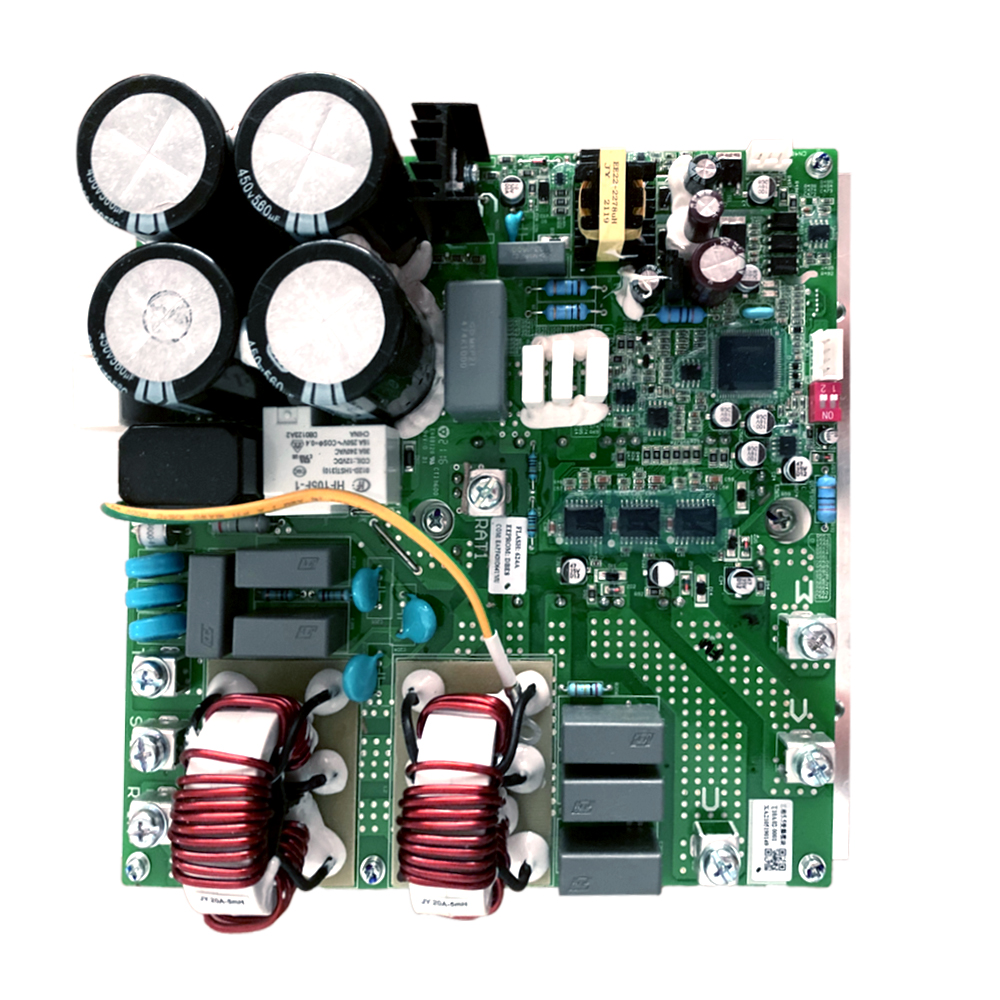

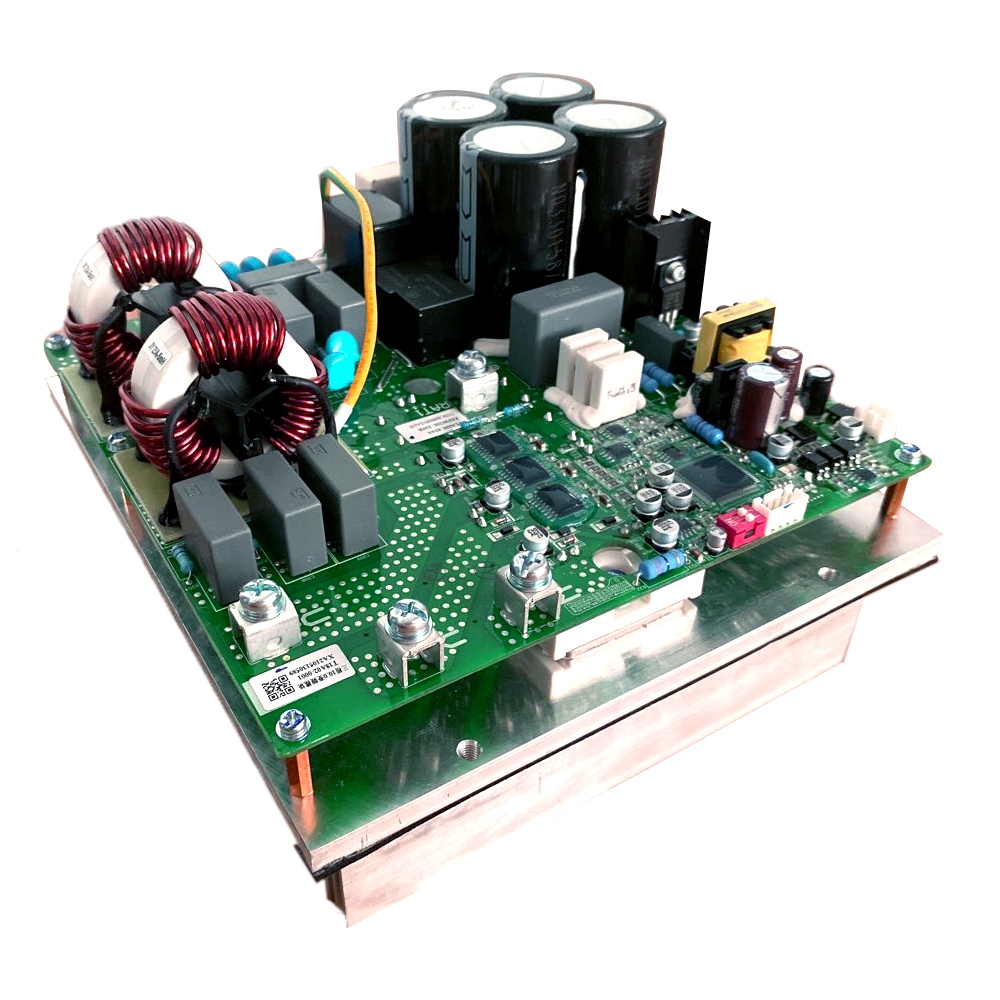

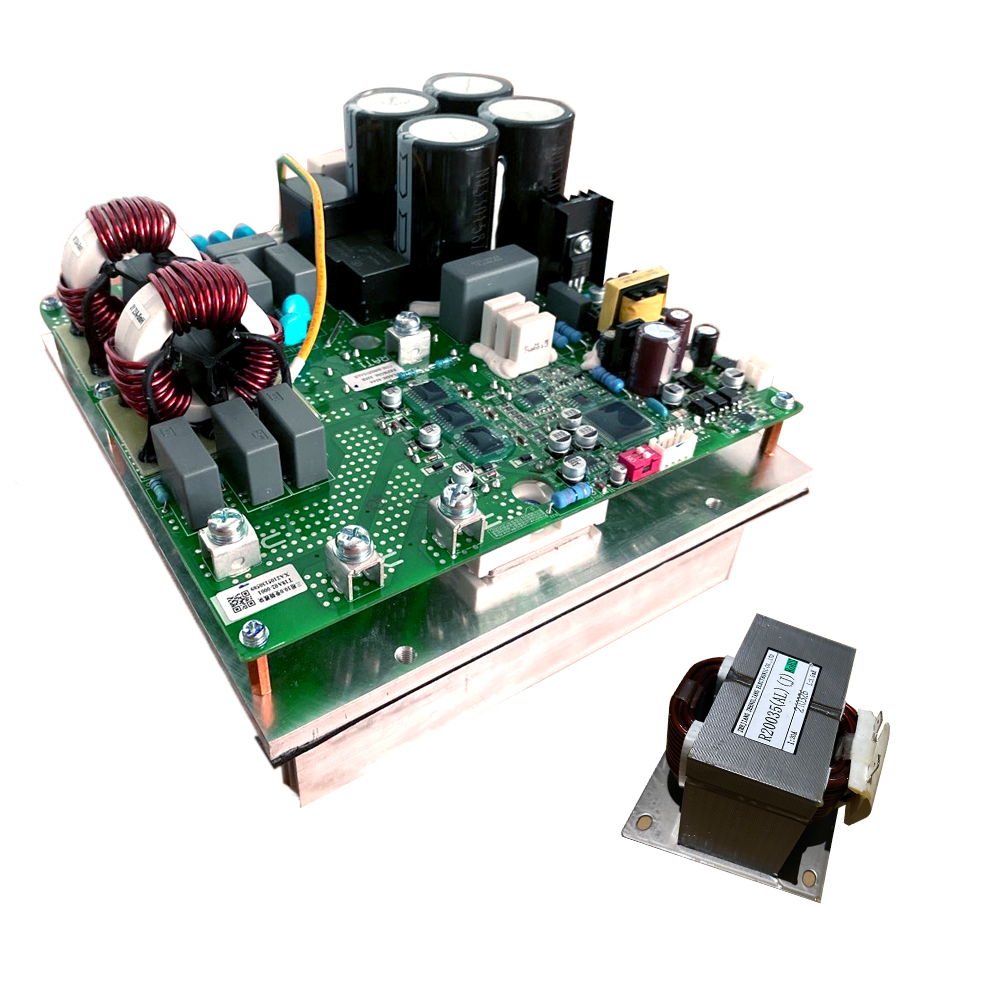

5.5 kw and 10kw three phase of inverter compressor driver board



ELECHICO has completed the research and development of single-phase and three-phase full series inverter compressor control products, and widely used in heat pump, air conditioning, swimming pool machine, refrigeration units and other industries.



Features

|  Staggered parallel PFC design

|  Built-in capacitor for convenient installation

|  Two stage EMC filtering

|  Supporting central air conditioner of VRF one to four



Parameters

Rated input voltage
Three phase standard voltage 380 V 50 / 60 Hz, operable voltage 320-460 V
Input maximum power
5.5-10KW 380V AC
Input maximum current
10-18A
PFC
PF value (0.70-0.99)
Carrier frequency
5.0k Hz (adjustable according to compressor noise)
Output mechanical frequency
15-120Hz (ultimately according to the specification of the compressor)
Control type
180-degree sinusoidal vector driving

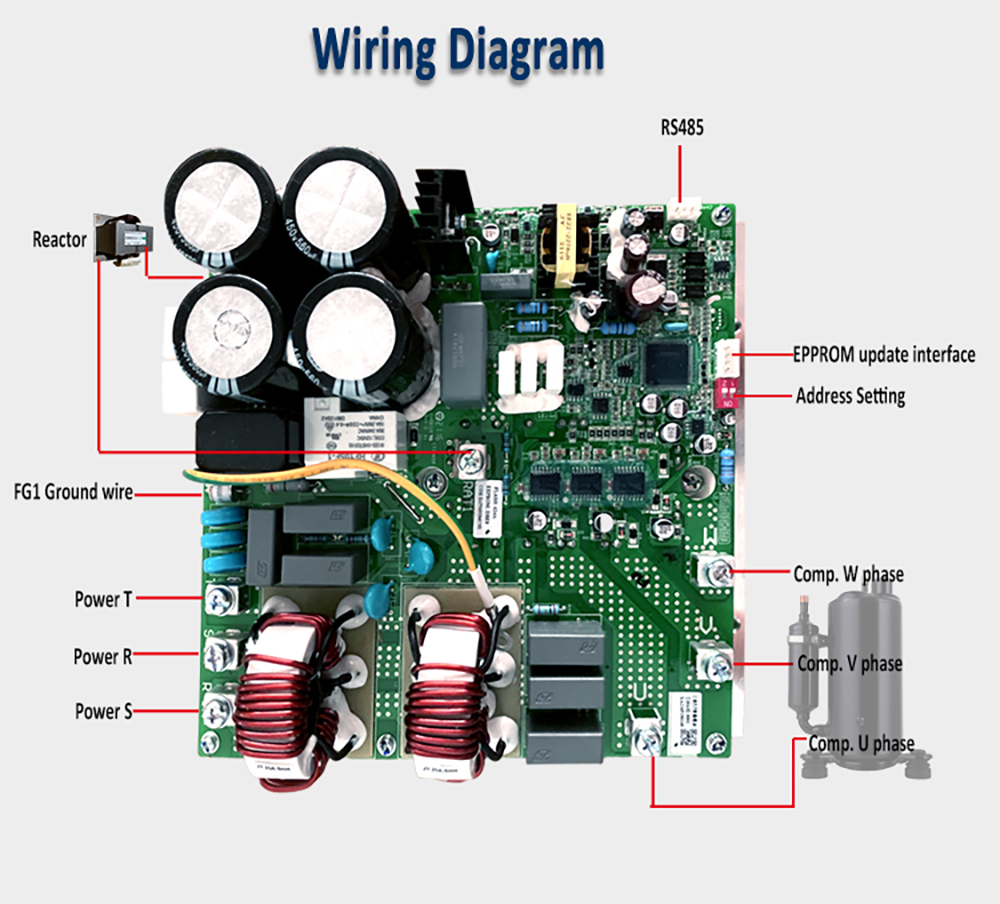

Communication interface
RS485
Communication protocol
Standard Modbus RTU Baud rate 1200 bps
Operating temperature range
-20 To 60℃
Operating humidity range
<95% and noncondensing
