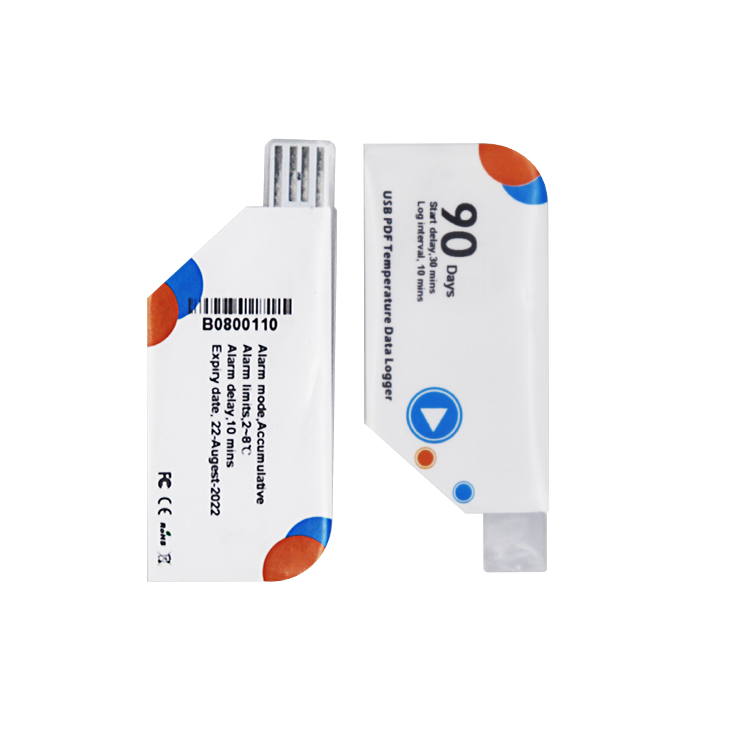

M501 Single-use Temperature Humidity Data Logger



INTRODUCTION

M501 data logger is used to record temperature and humidity etc of food, medicine and chemicals during storage and transportation. It is widely applied in process of warehouse storage and cold chain logistics such as refrigerated containers, refrigerated trucks and labs.

--------------------------------------------------------------------------------------------------------------------------

PARAMETERS

Recording options
Single use
Start mode
Manual
Temperature range
-30℃ to 70℃(-22℉ to 158℉)
Stop mode
Manual / USB connection/ Date limit
Temperature accuracy
±0.5℃/ 0.9℉
Report
Encrypted PDF report
Data storage capacity
14400 readings
USB connection
USB 2.0
Shelf life/ battery
1 year/ 3.0v lithium battery
Indicator
LED
Recording interval
10 minutes, customizable
Calibration
Factory 3 point calibration
Recording cycle
Up to 90 days
Protection class
IP67 / NEMA 6
Alarm mode
High/Low limit
Dimensions

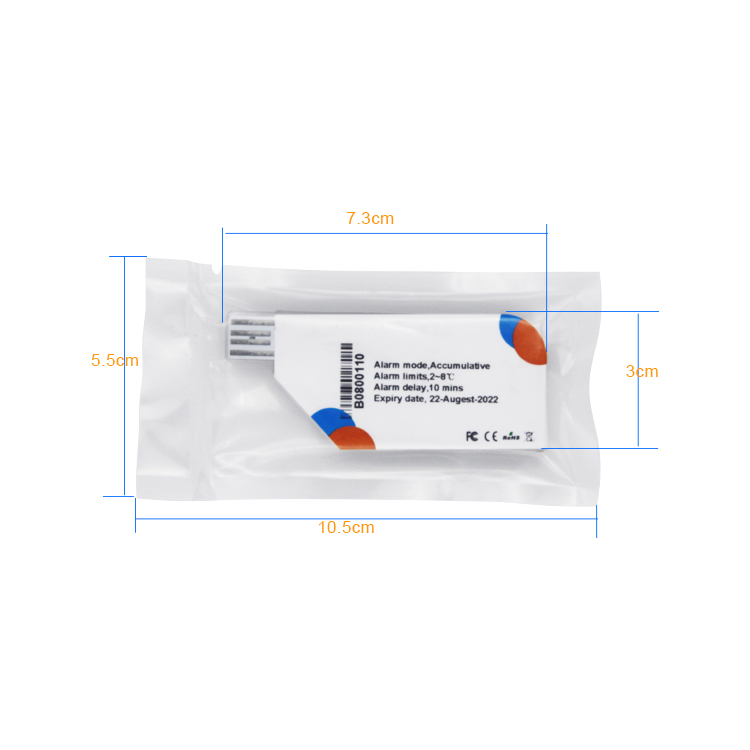

73 mm x 30 mm x 6 mm (L x W x H)
Alarm type
No alarm, single, accumulated
Weight
Approx. 13 g

Know More Detail, Please Contact Us!

FEATURE

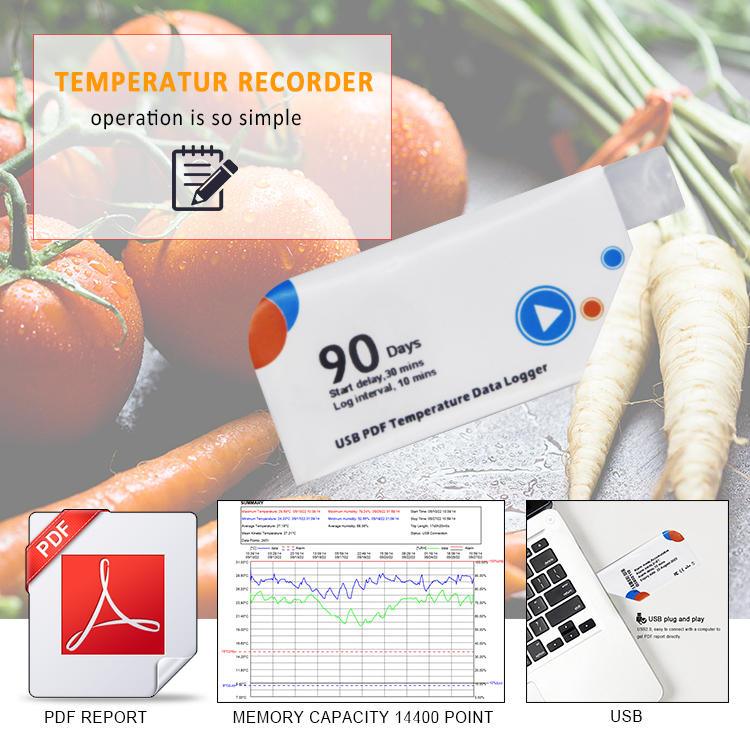

1.Connect the computer to automatically generate encrypted PDF reports;

2.Ultra-low power design, super battery life;

3.Easy to use, can be reused without reconfiguration;

4.Support USB2.0 data export;

5.NIST traceable 3-point calibration;

6.Meet the IATA aviation certification;

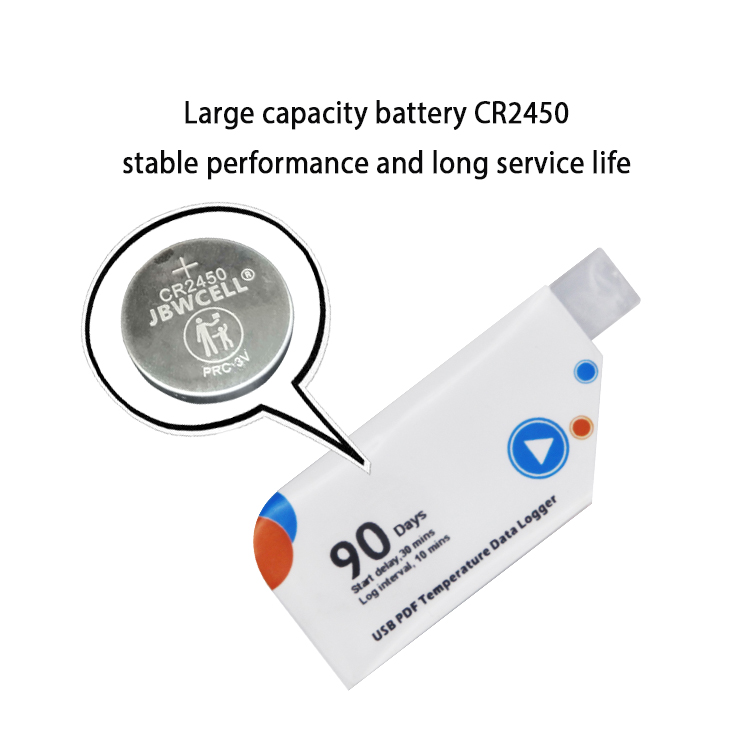

7. Large capacity battery CR2450;

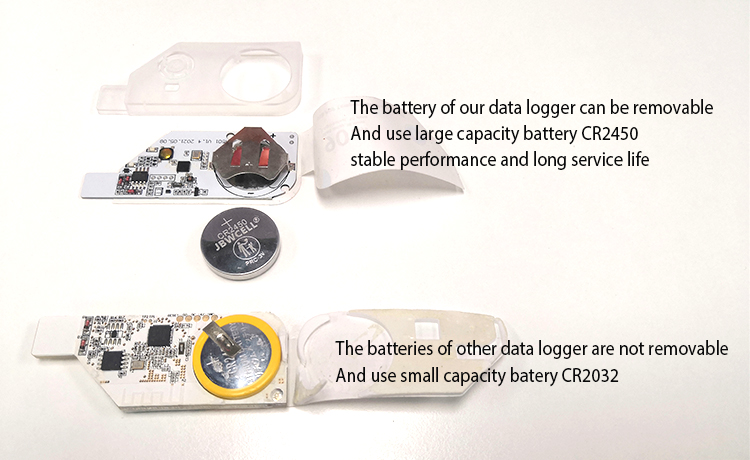

8. The battery can be removable.
