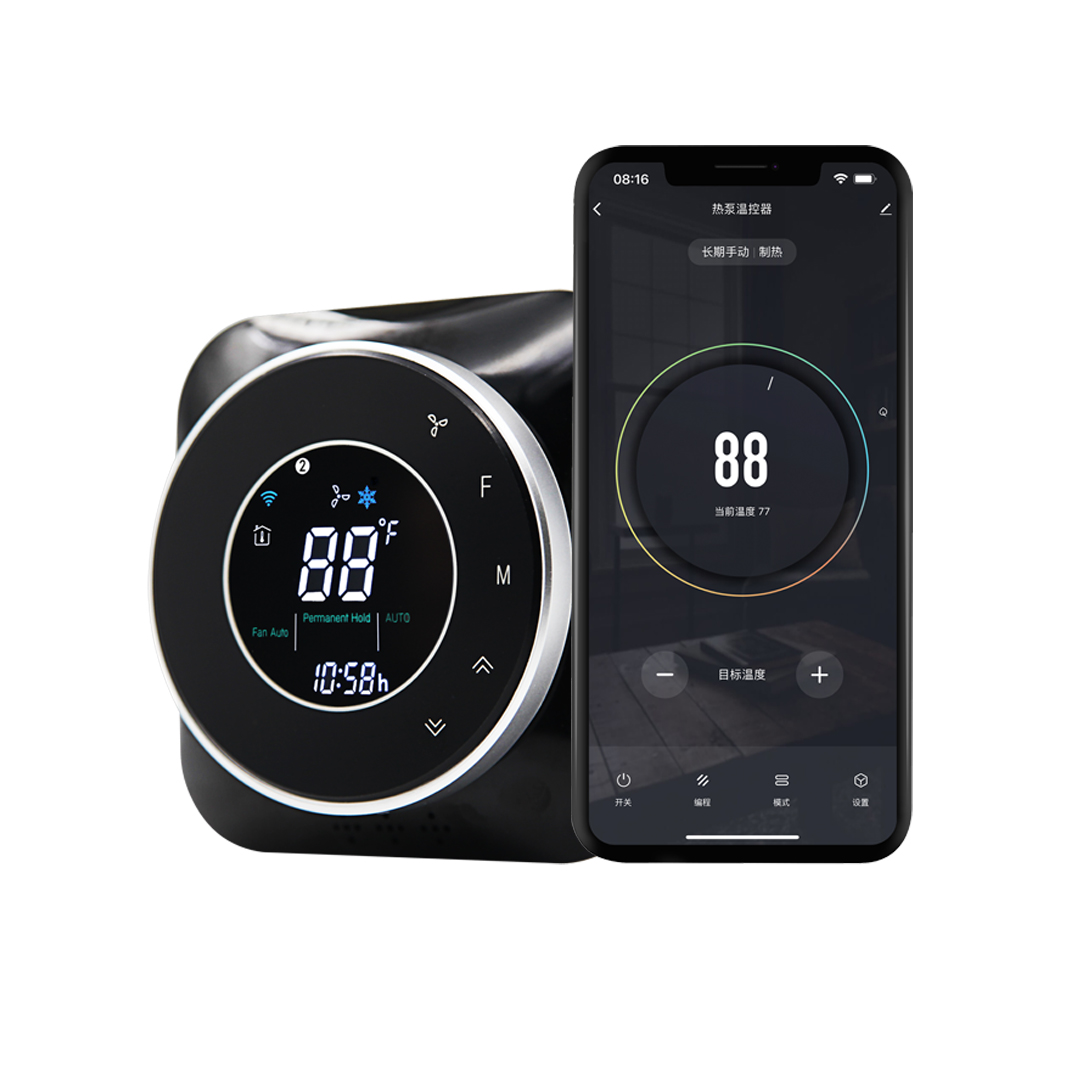

24V Air Conditioning Heat Pump Smart Wifi Thermostat

APPLICATION

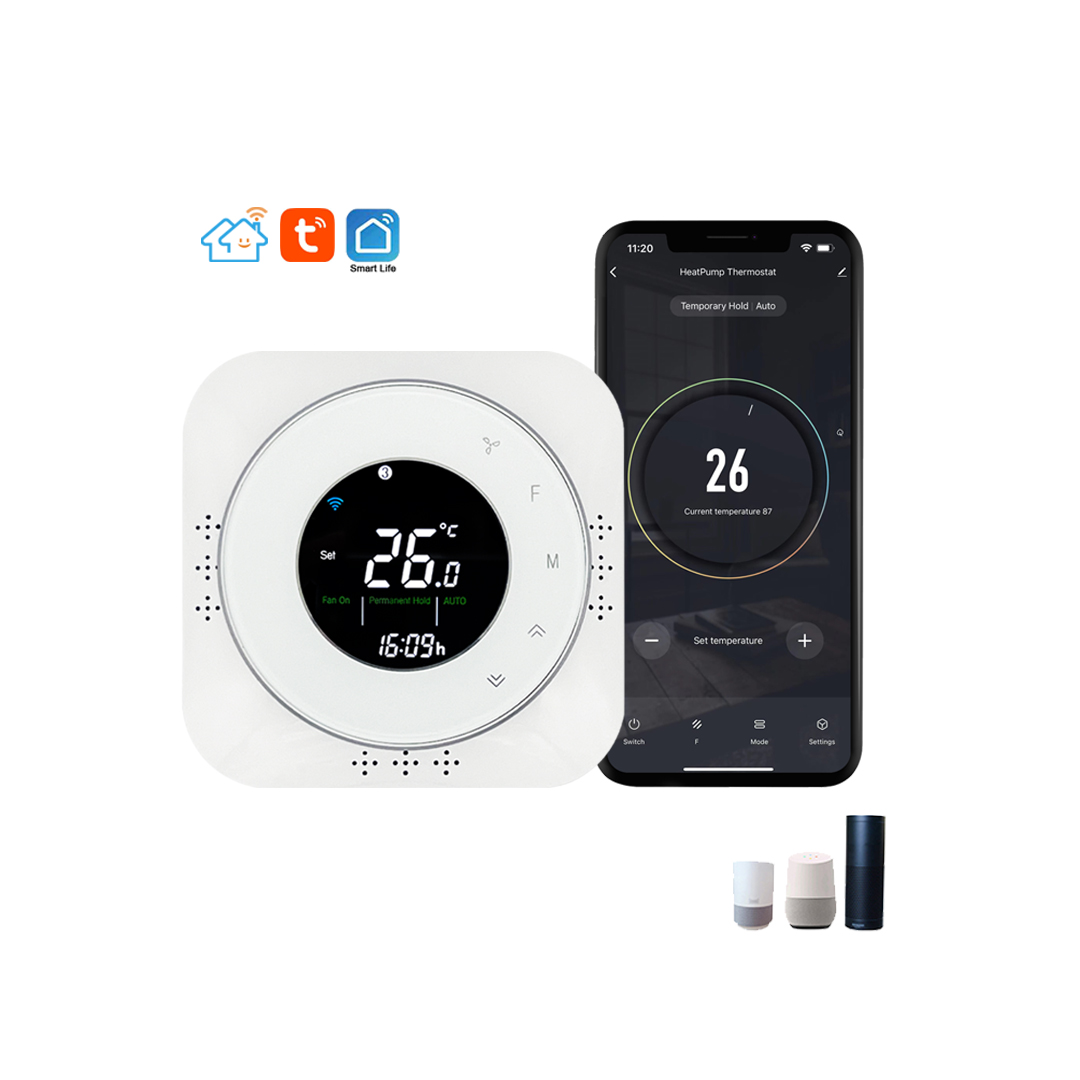

THP6001 WIFI Thermostat for Heat Pump Smart Thermostat Temperature Regulator with Heating & Cooling .The wifi thermostat could be controlled by Smart home devices such as Alexa, Echo, Google Home, IFTTT etc.

SYSTEM TYPE
1. Gas, oil, or electric heat with air conditioning.
2. Warm air, hot water, high efficiency furnaces, heat pumps, steam, gravity.
3. Heat only--including power to open and close zone valves, and normally open zone valves.
4. Heat only with fan.
5. Cool only.

-----------------------------------------------------------------------------------------------------------------------

 TECHNICAL DATA

Power Supply: AC/DC24V ±10%

Current Load: 1A (Inductive) 3A (Resistance)

Sensor: NTC3950, 10K

Set Temp. Range: 42-122(5~50)

Accuracy: ±1

Display Temp. Range: 41~210(5~99)

Ambient Temp: 32~113(0~45)

Ambient Humidity: 5~95%RH(Non Condensing)

Storage Temp: 23~113(-5~45)

Timing Error: <1%

Power Consumption: <1.5W

Shell Material: PC+ABS(Fireproof)

Available Installation 1: Wall mounted

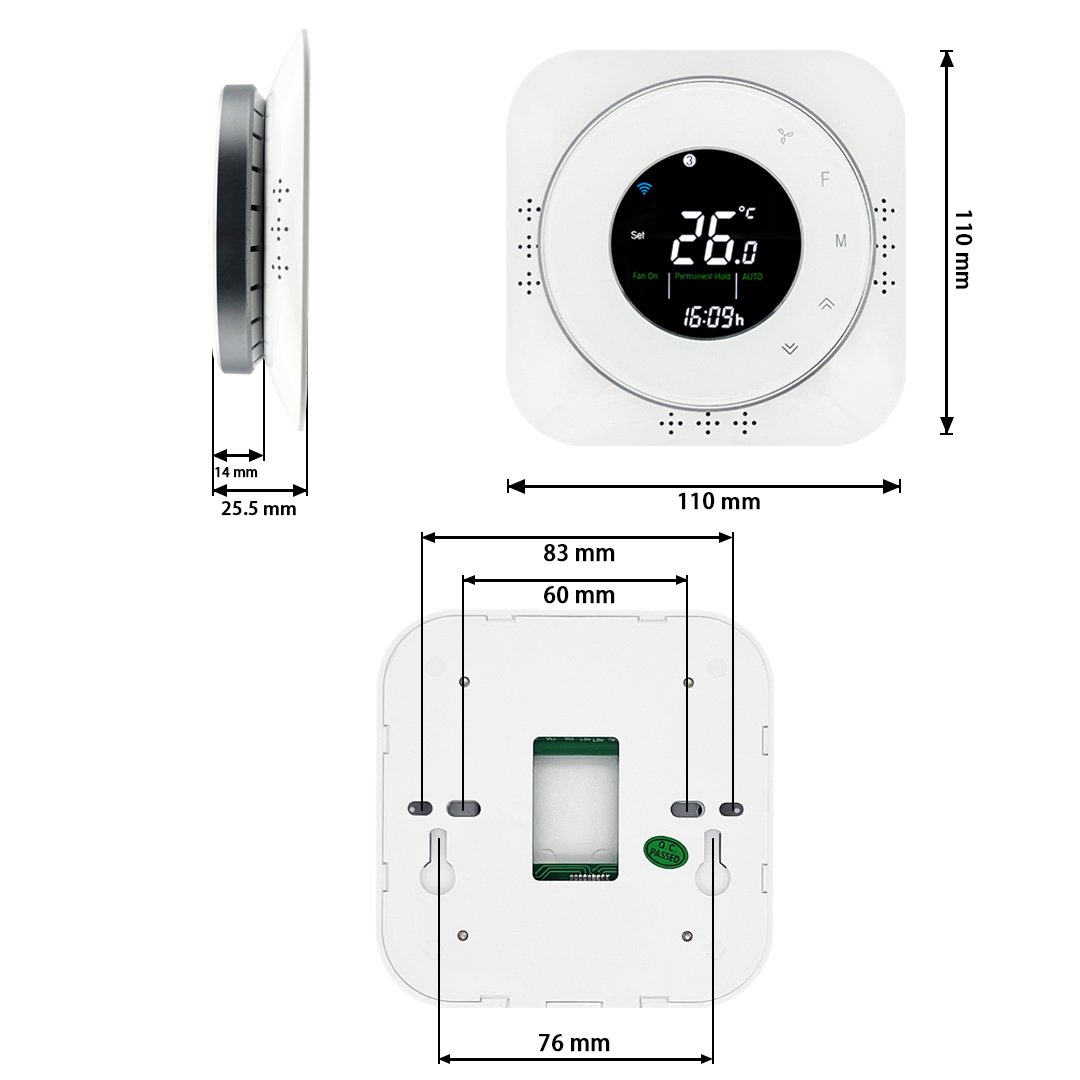

Available Installation 2: Hole Distance of 62±5mm (Europe, China and Japan)

Available Installation 3: Hole Distance of 86±3mm (USA and Italy etc,.)

Wire Terminals: Wire 2×1.5mm2 or 1×2.5mm2

Protection Class: IP20

Buttons: Capactive Touch Buttons

-------------------------------------------------------------------------------------------------------------------------

 FEATURES

On Appearance

 Negative black sceen will bring you to a secret world.

 51mm round display area helps to protect your eyes.

 Glass or Acrylic Lens is for your selection.( Optional)

 Touch buttons to make simple operation.

 Amazing Silver Frame opens your modern life.

 The visiable thickness above the wall is only 11mm.

 Rotation to connect gives you easy installation.

 Wall mounted or suitable for the installation of Europe, China, Japan, USA and Italy.

 White, black or brushless stainless steel housing creates your colorful life.


On Functionality

 Powerful functions are available such as Modbus/WIFI etc,.

 0.5℃ accuracy keeps temperature within the level you set.

 ℃&℉ is changeable.(Customized Function)

 Data memory when power is off.

 5+1+1 four periods programmable.

 Temporary programmable.

 Holiday mode.

 All setting languages sunchronize your time zone, address and language.

 No limit to add thermostats in App.

 Support Smart Scene.

 Support to make group and two stage groups.

 Support device sharing.

-----------------------------------------------------------------------------------------------------------------------
