TP808 heat pump prorammable wifi 24v thermostat
APPLICATION
This thermostat is used to control up to 3 stages heating and 2 stages cooling system with 8 types control system, EM heat activation, adjustable compressor delay time and O/B changeover. It is with tempered touch sensitive button, quick connecting terminals to save installer’s time. 7 days programmable and four modes everyday make users’ life convenient and comfortable.
TECHNICAL DATA
** Power Supply: 24VAC, 50-60Hz
** Setpoint Range: 41℉ to 95 ℉ (5℃ to 35 ℃)
** Accuracy: ±1℉
** Timing Error: <1%

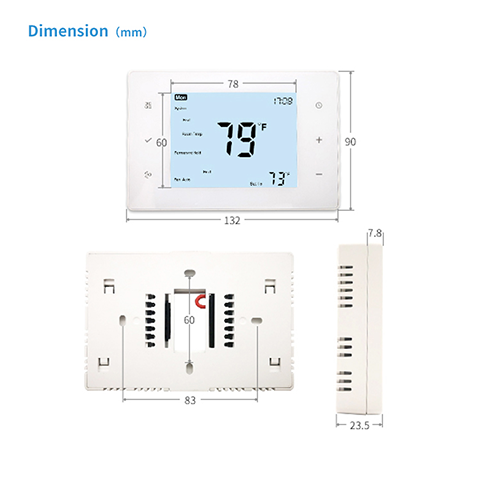

** Dimension: 132x90x23.5mm
** Shell Material: PC(Fireproof)
** Dimension: 132x90x23.5mm
** Installation box: US Standard box
PRODUCT FEATURES
** Application--Apply with various kind of heating and cooling system. Including Single stage, Multi-stage And Heat Pump (Up to 3-stage heat, 2-stage cool, with Aux. or Emergency heat)
** Wi-Fi Connection --Easily connect your Wi-Fi thermostat and control your temperature settings from your mobile device.
** Voice Control --Be compatibel with Amazon Alexa & Google Assistance.

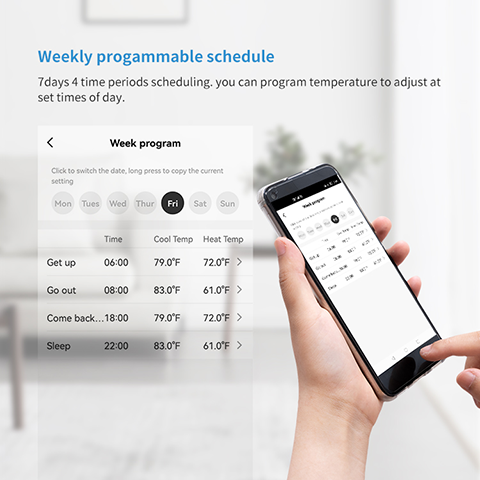

** Scheduling --7days 4 time periods scheduling. you can program temperature to adjust at set times of day.
** Recirculating Air -- circulate the air in your home using your indoor blower fan.
** Smart Alerts -- the reminder to change UV lamp; the reminder of replacement run time of Chgpad; the reminder of replacement run time of Chg Filter.
** C/F Selection --Temperature display of Celsius or Fahrenheit scale.
