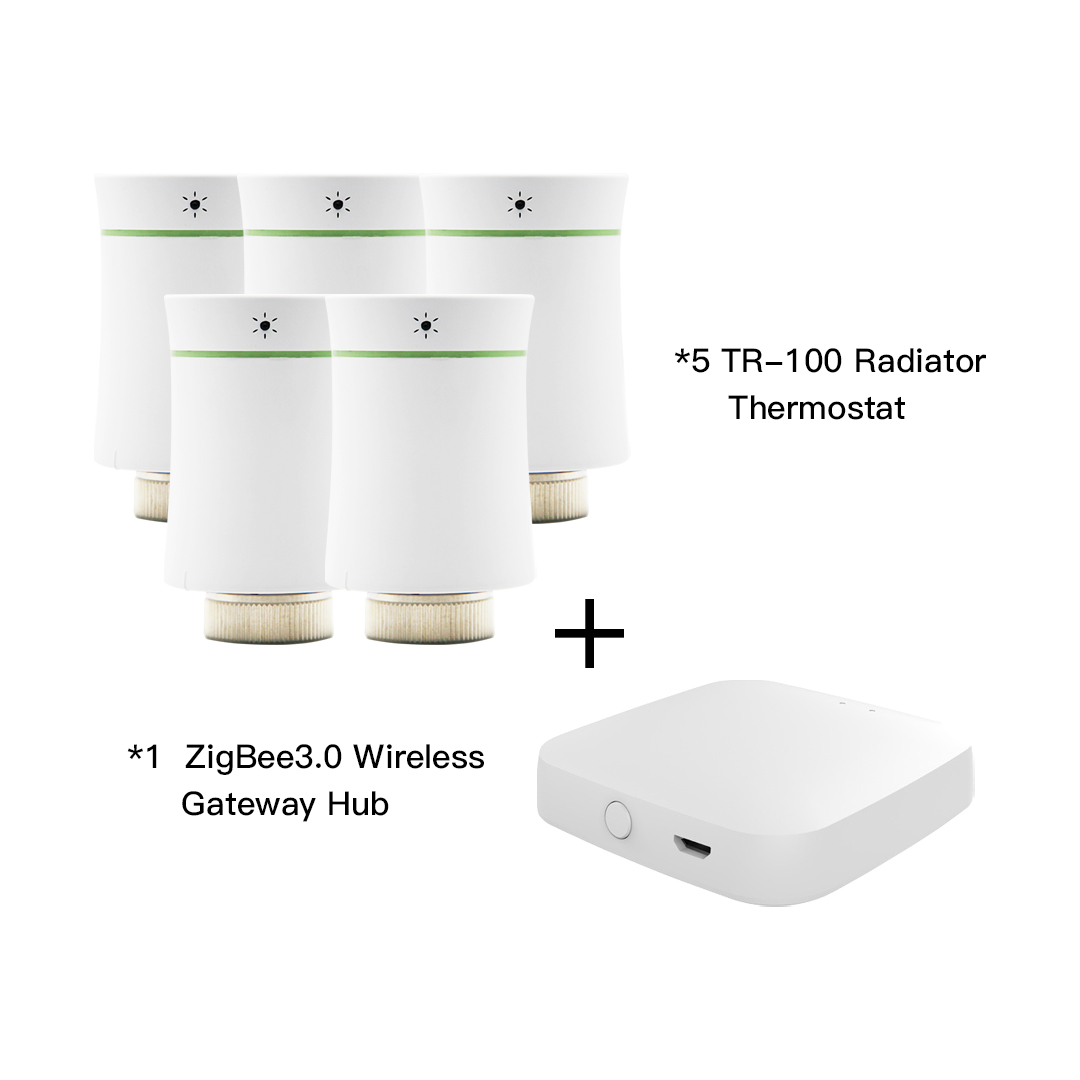

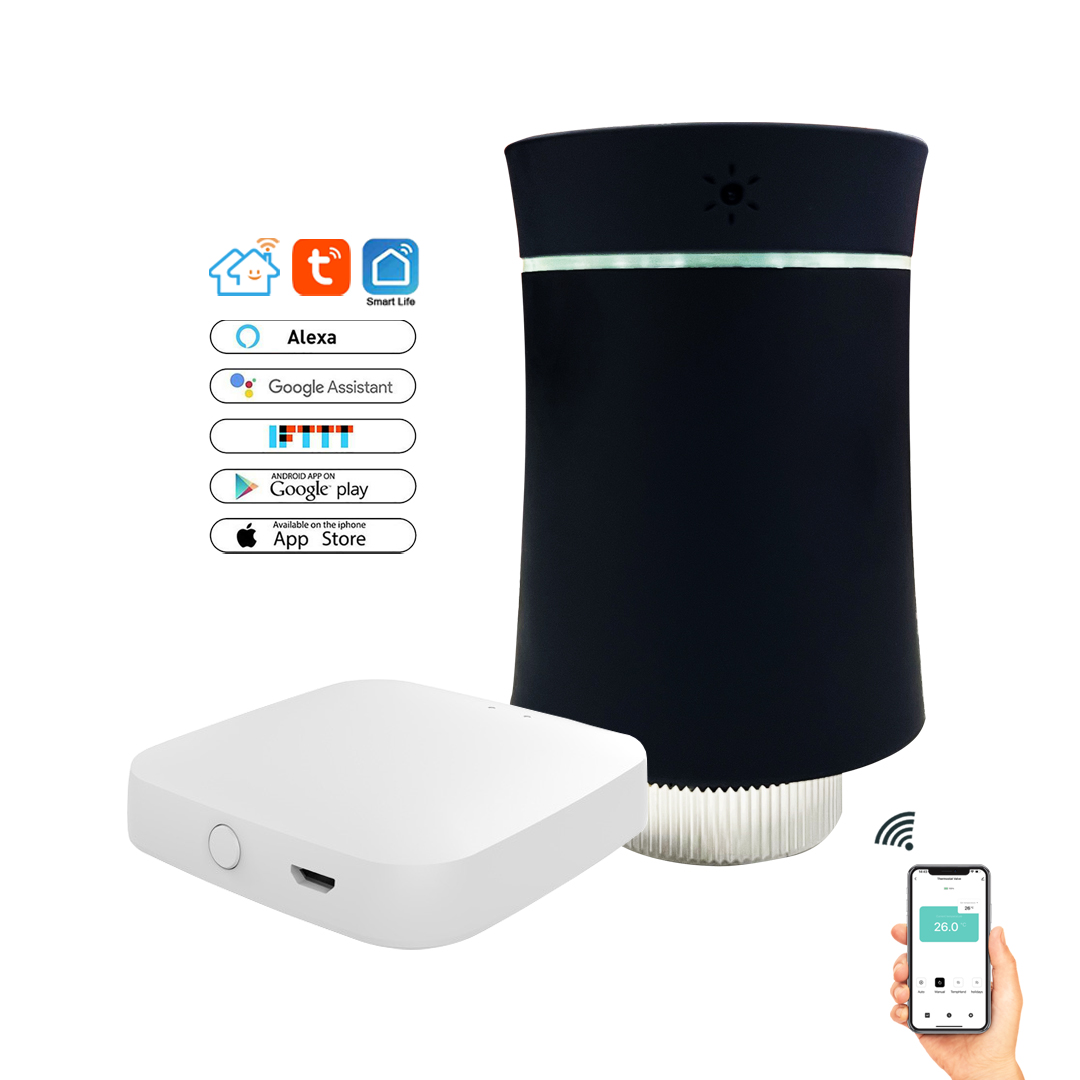

TR-100 Tuya Zigbee Wifi Thermostatic Radiator Valve TRV Thermostat

APPLICATION

TR-100 series TRV thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels and etc. to main an ideal room temperature purpose. It can be used in radiator heating systems.

------------------------------------------------------------------------------------------------------------

 TECHNICAL DATA

|  Power Supply: 3 V,2xAA Batteries, Packaging not have battery.

|  Maximum stroke: 4.5mm

|  Accuracy: ±0.5℃

|  Set Temp. Range: 5-45℃

|  Display temp. Range: 5-45℃

|  Timing Error: <1%

|  Shell Material: PC+ABS (Fireproof)

|  Protection Class: IP20

|  Ambient Temp.: 0-45℃,5-95%RH(Non condensing)

|  Storage Temp.: -5-45℃

------------------------------------------------------------------------------------------------------------

 FEATURES

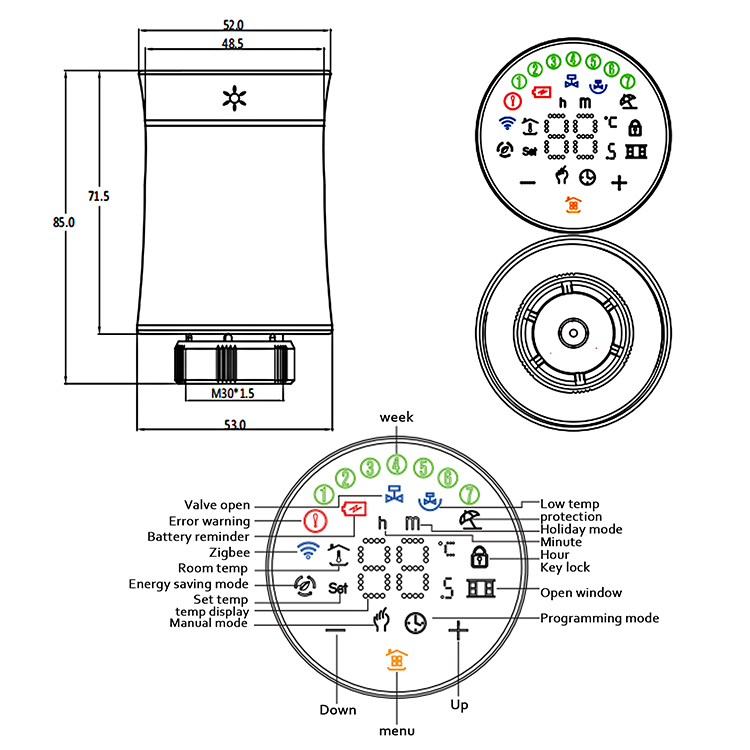

| LED display, no window, wider perspective.

| Colorful display.

| Graceful arc waist shape.

| Rubber stretch paint, feel like baby skin.

| Night Halo colors your home.

| Low power consumption,battery can last 1 year for normal use and standby for 2 years.

| Low battery tip.

| Diagram of temperature curve added in APP.

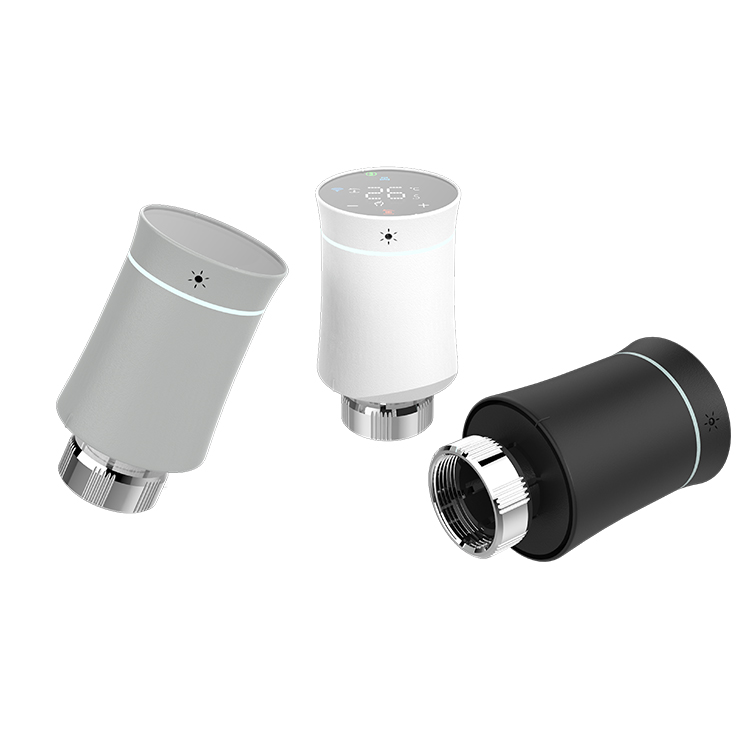

| Vary colors are available like white, Black, gray etc.

------------------------------------------------------------------------------------------------------------
