TRV602 Programmable Zigbee Wifi Thermostatic Radiator Valve TRV Thermostat

APPLICATION

TRV602 LED TRV thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels and etc. to main an ideal room temperature purpose. It can be used in radiator heating systems.

TECHNICAL DATA

** Power Supply: 3*1.5V alkaline AA batteries(not included)

** Standby Current: 6uA Min

** Display Accuracy: 0.5°C

** Set Temp. Range: 5~30 °C

** Thread Size:: M30*1.5mm

** Linear Travel: 4.3mm

** Running Program: set per 1 week as a cycle

** Zigbee Gateway App: Tuya Smart/ Smart Life

** Voice Control: Alexa/Google Home

** Protection Class: IP20

** Ambient Temperature : 0-50°C

** Surface Temperature: 90°C Max (at the radiator)

 PRODUCT FEATURES

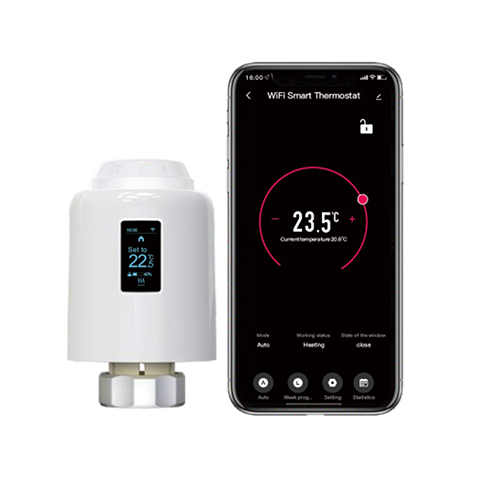

** Accessible via your smartphone app , easy remote control after successful network configuration.

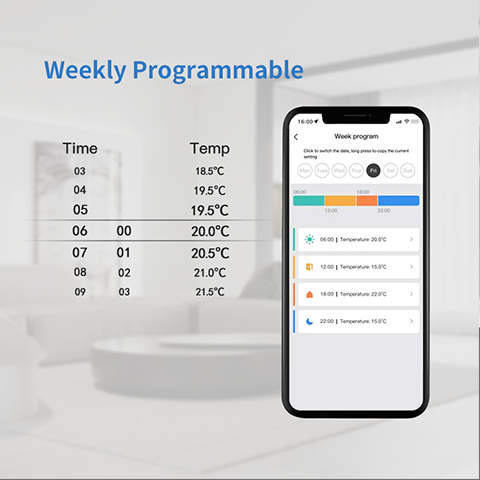

** Programmable device with customized exclusive temperature plan, up to 6 events allowed to set each day.

** After no operation for more than 5 seconds , the device enters sleep mode , which can save energy and prolong battery life.

** Long press the Set Button for 3 seconds to switch the screen display direction.
