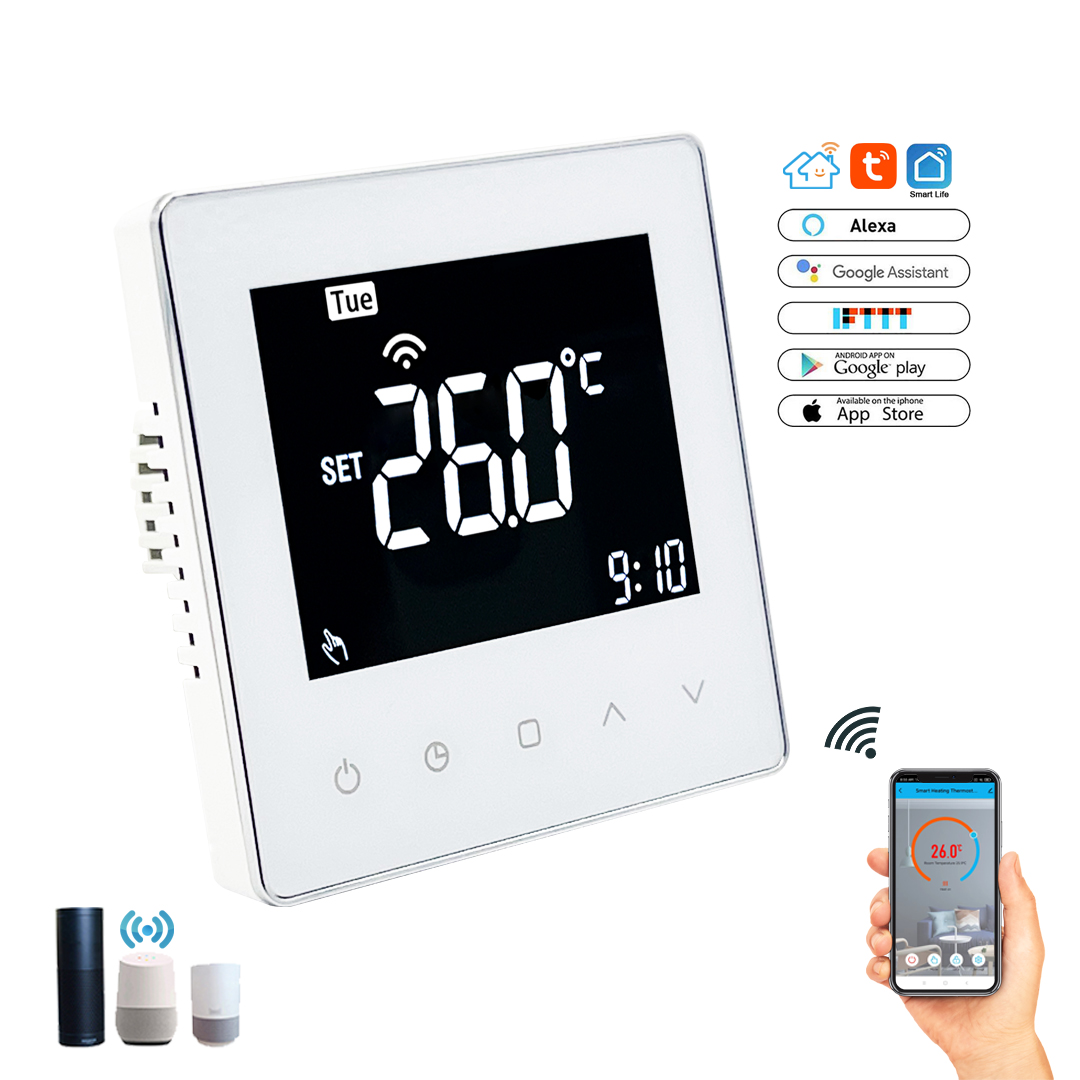

TP528 WIFI HEATING THERMOSTAT WORK WITH AMAZON ALEXA
INTRODUCTION

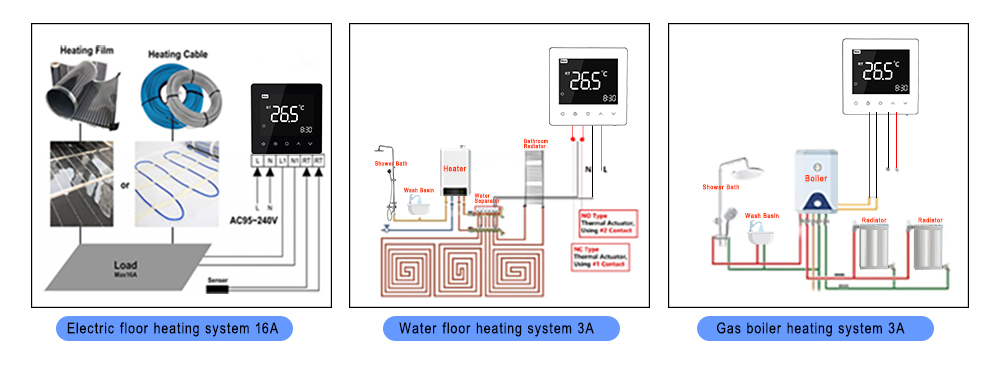

The TP528 series range has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.
------------------------------------------------------------------------------------------------------------
PARAMETER
Accuracy
|
±1℃
|
Timing Error
|
<1%
|
Power Consumption
|
< 1.5W
|
Power Supply
|
95 ~ 240VAC, 50 ~60Hz
|
Current Load
|
3A(water heating, water/gas boiler), 16A(electric heating)
|
Shell material
|
PC+ABS (flame retardant)
|
Ambient Temp.
|
0-45℃,5-95%RH (Non-condensing)
|
Storage Temp.
|
-5-55℃
|

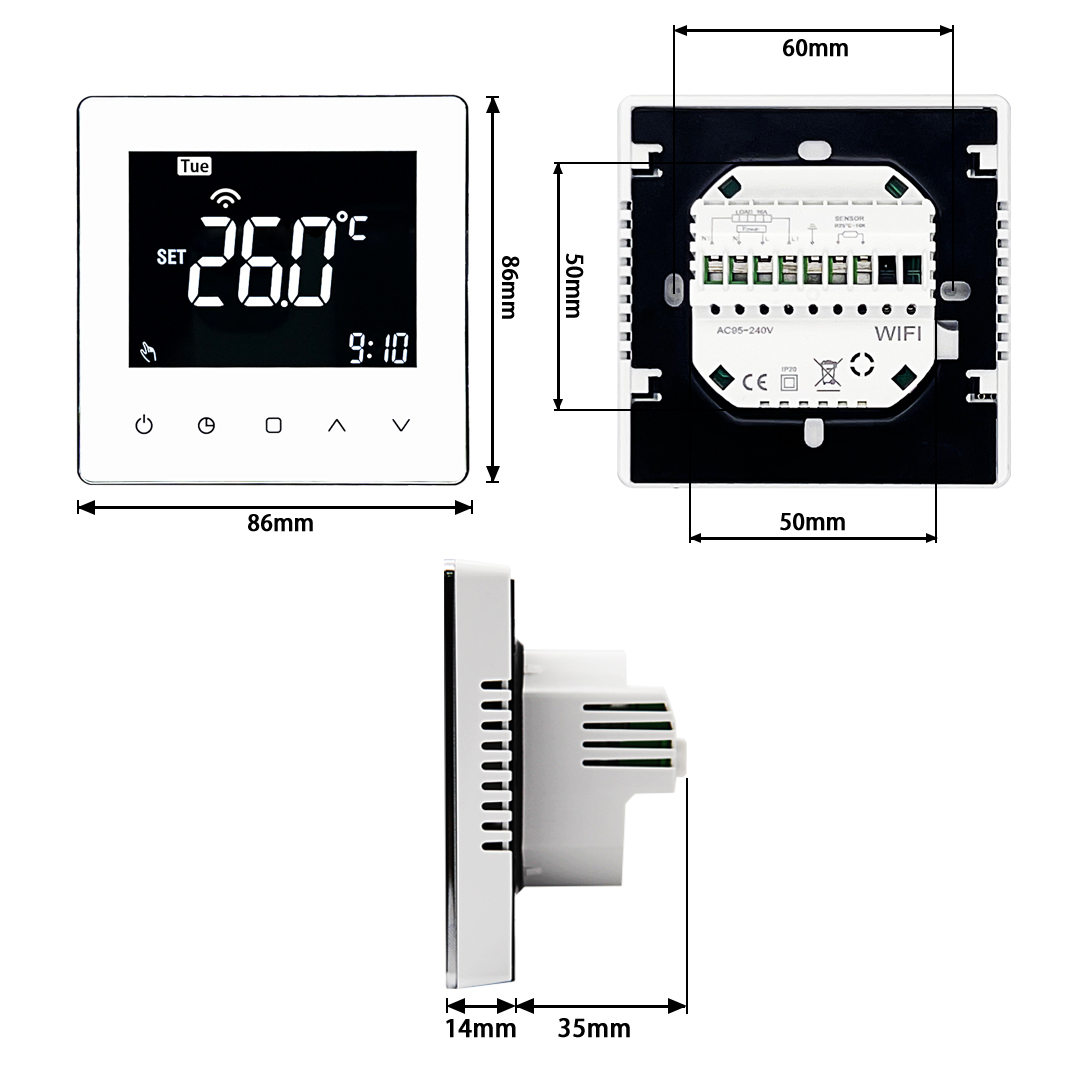

Installation Hole distance
|
60mm
|
-----------------------------------------------------------------------------------------------------------
FEATURE
** Simple installation;
** Acrylic face plate;

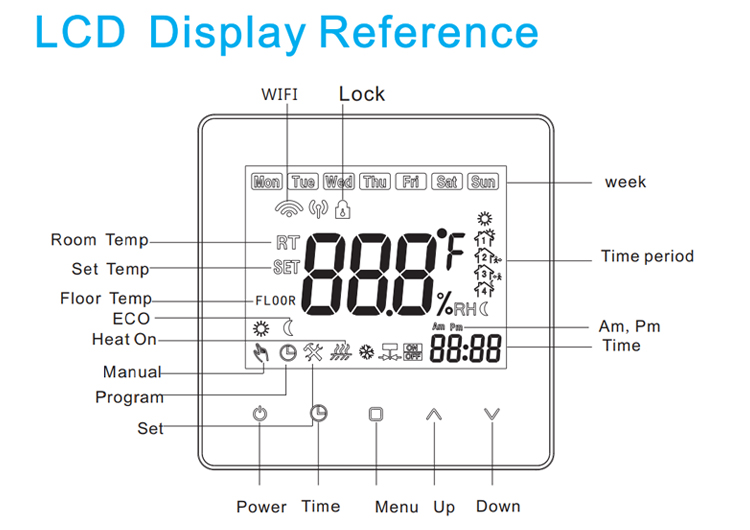

** Large, backlit display;
** Sleek, contemporary design;
** Elegant chrome frame;
** Feather touch control panel;

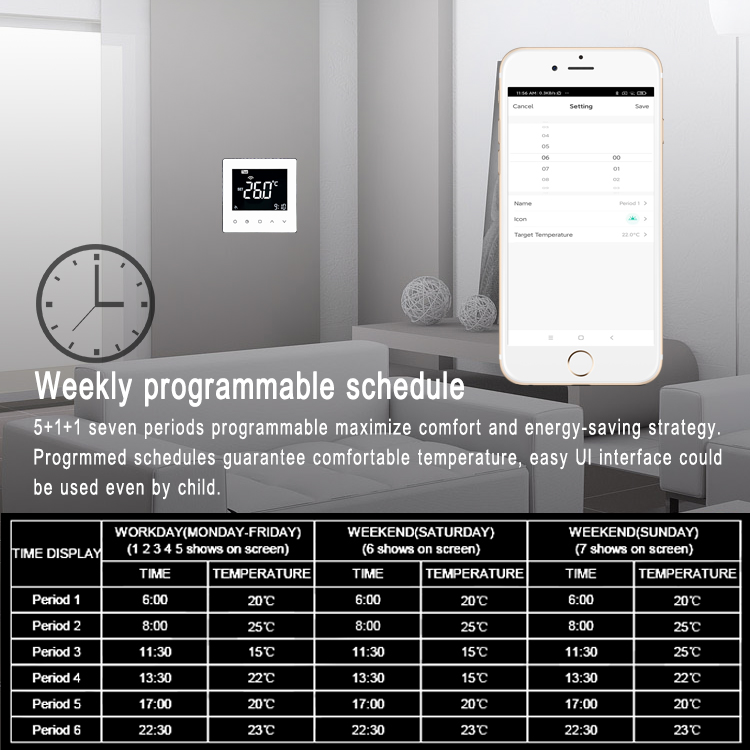

** 5+1+1 six period per day programming;
** Simple, one-touch temperature control over-ride;
** Pre-set temperatures maintained within +/- 1°C;

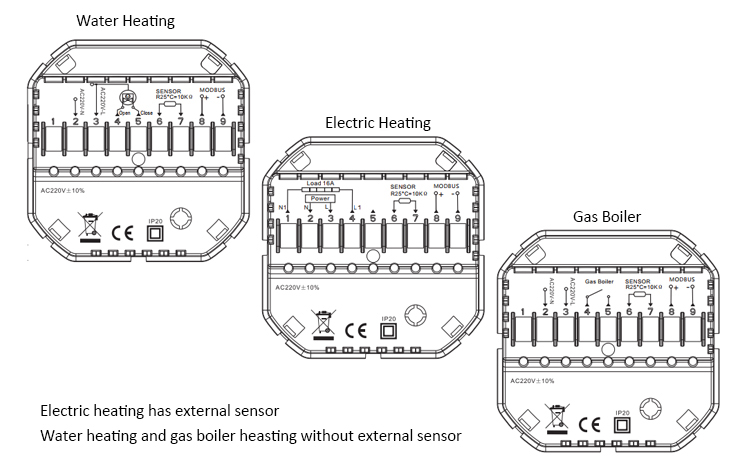

** Internal and external sensors allow control of both air and/or floor temperatures;
** Suitable for installation in a standard single pattress box or European 60mm round box;
