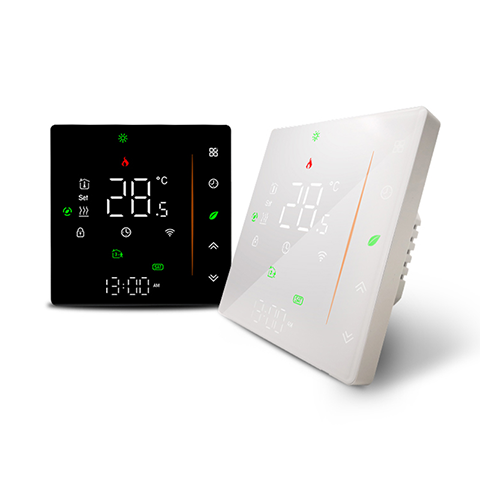

HT-006 Programmable Smart wifi Room Heating Thermostat

The HT-006 thermostat has been developed to control electric underfloor, water heating or water/ gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.

TECHNICAL DATA

>> Power Supply:95 ~240 VAC, 50~60Hz

>> Current Load: 5A (water heating, gas boiler), 16A (electric heating)

>> Sensor: NTC3950, 10K

>> Accuracy: ±1°C

>> Set Temp. Range: 5-35°C

>> Room Temp. Range: 5-99°C

>> Display Temp. Range: 5 ~ 99°C

>> Ambient Temp.: 0~ 45°C

>> Ambient Humidity: 5 ~ 95 % RH (Non Condensing)

>> Storage Temp.:-10~ 45°C

>> Power Consumption: <1. 5W

>> Timing Error: < 1%

>> Shell Material: PC +ABS ( Fireproof)

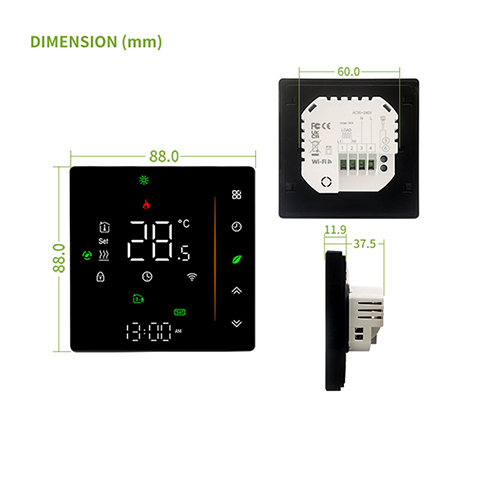

>> Installation Box: 86 * 86mm Square or European 60mm Round Box

>> Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2

>> Protection Class: IP20

>> Buttons: Capacitive Touch Buttons

PRODUCT FEATURES

On Appearance

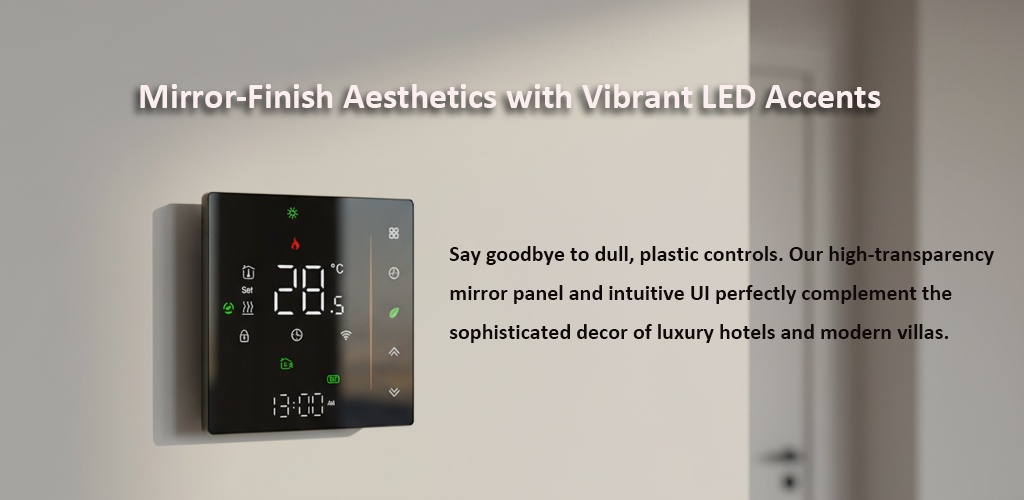

>> LED display, more friendly interface;

>> Touch operation buttons, smoother interaction;

>> The ultra-thin embedded panel perfectly fits all kinds of walls;

>> The borderless small rounded corner design is simple and atmospheric;

>> Compatible with standard 86mm square cassettes and 60mm European cassettes to meet all installation environments;


On Functionality

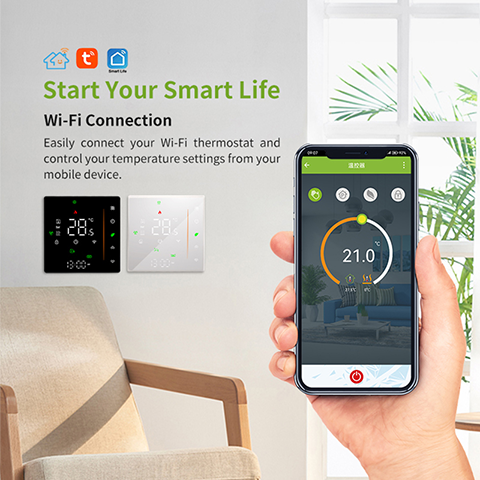

>> Rich function options, Modbus, WIFI, keycard, etc., to meet all your needs;

>> Strict temperature control accuracy (±1℃) to provide the warmth you want;

>> Power off protection, save all your settings safely;

>> Provide weather information and humidity display

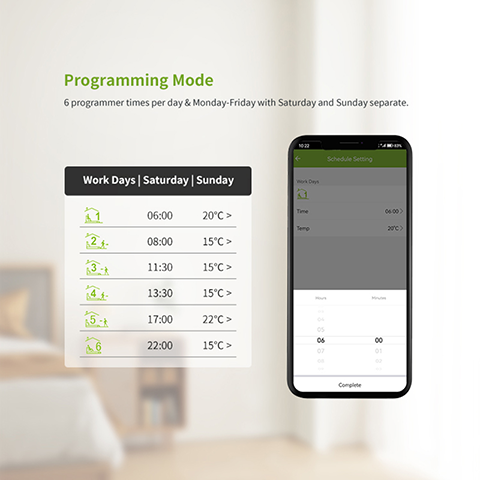

>> Preset adjustment of 5+1+1 mode in a week, programmable setting of 6 time periods a day, green energy saving, Less cost, more intelligent and environmental protection;

>> Support the creation of product local groups/shares to achieve unlimited centralized control of the number of products/ multi-terminal control;

>> Perfect access: Tmall Genie, Amazon echo, Google Home, full experience new voice control method;
