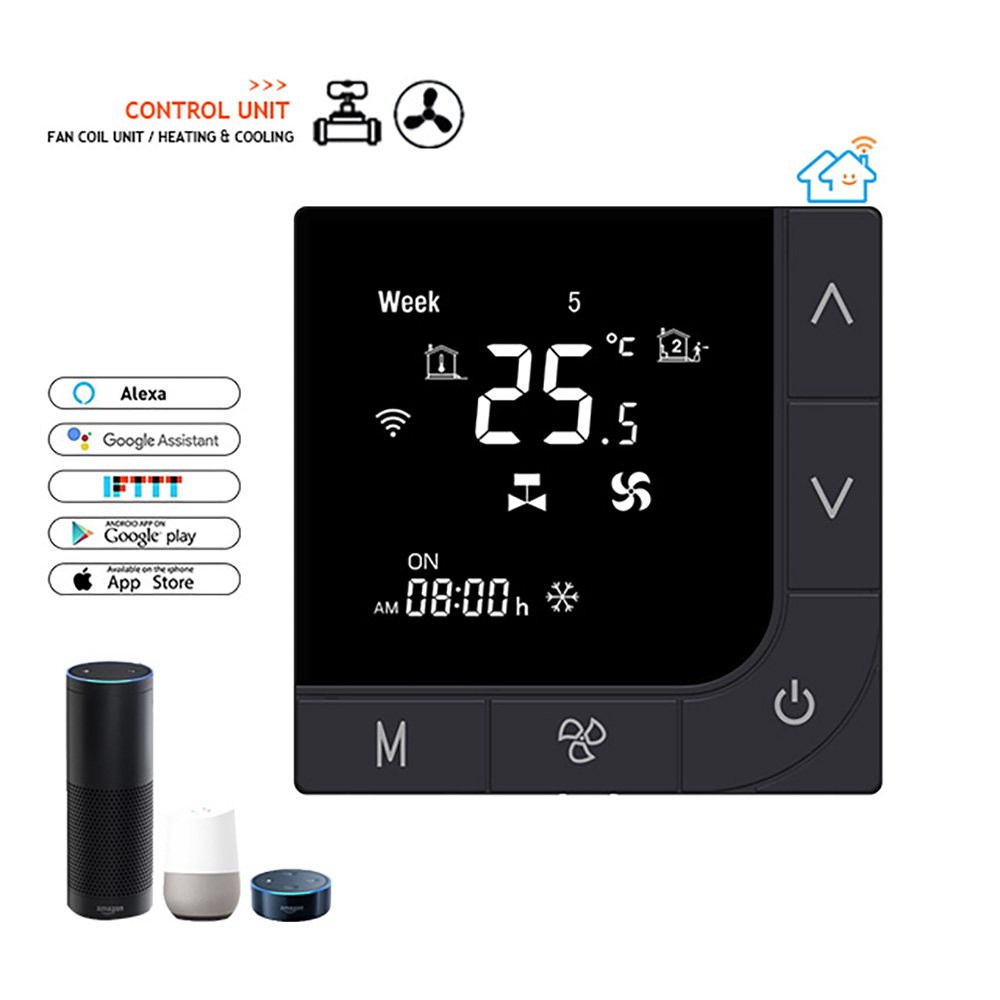

ELECHICO CCST2001 Series Programmable WIFI FCU Room Thermostat
APPLICATION
CCST2001 series Modern Wifi Room Thermostats are designed to in/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temp.as reaching the aim of comfort and saving energy.

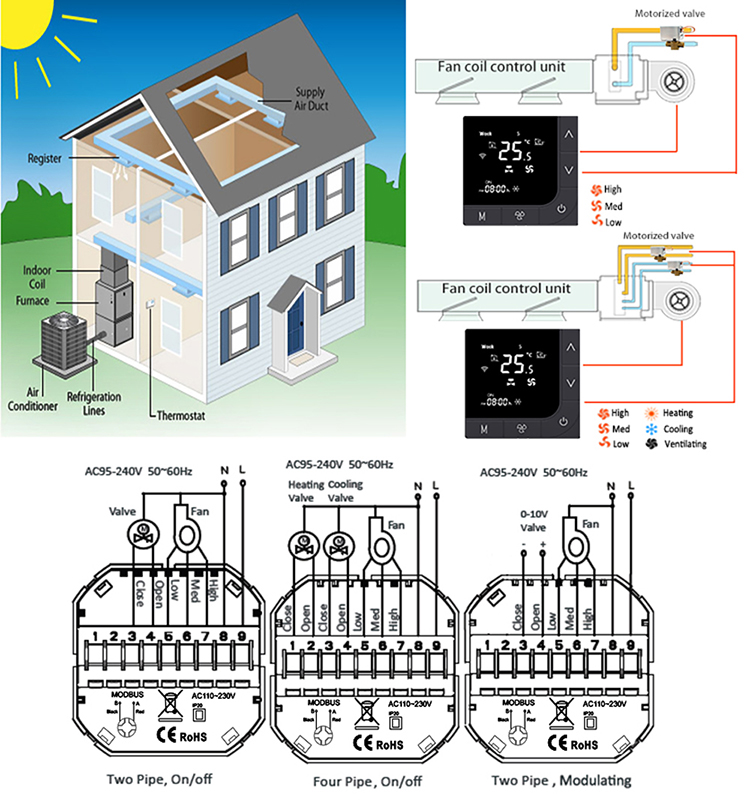

Two pipe; Control Fan Coil Unit and Two Wired Motorized Valve

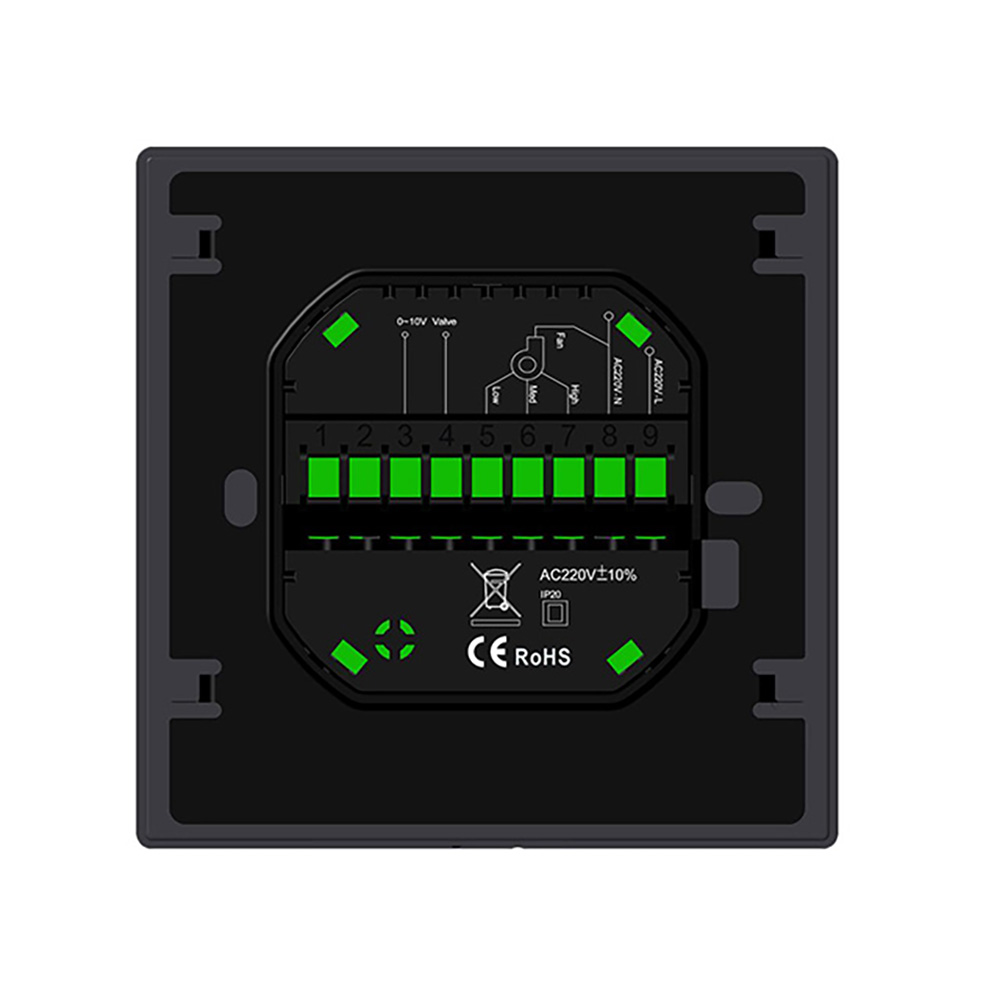

Two pipe; Control Fan Coil Unit and 0-10V Motorized Valve

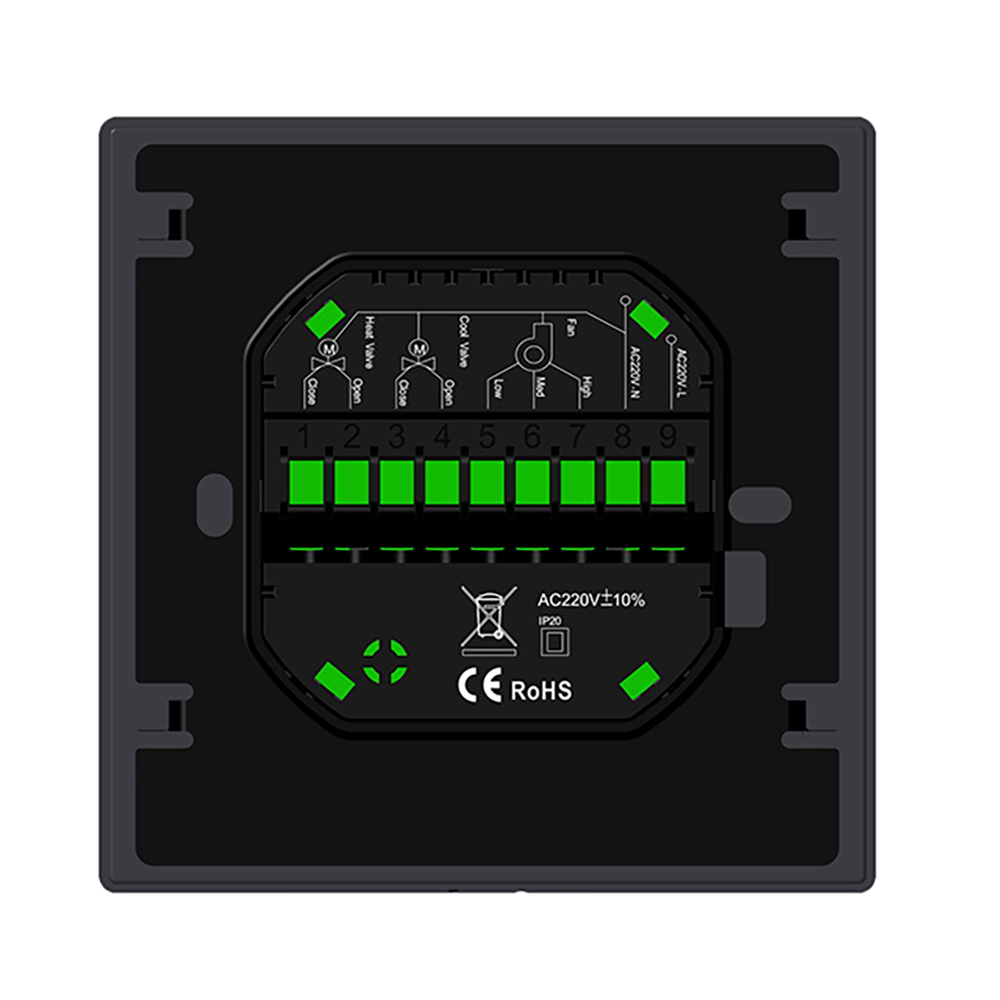

Four pipe; Control Fan Coil Unit and Two Wired Heat Valve and Two Wired Cool Valve.
------------------------------------------------------------------------------------------------------------
TECHNICAL DATA
| Power Supply: 110-240V, 50-60Hz
| Sensor: NTC 3950, 10K
| Accuracy: ±0.5℃
| Temp. Range:5-35℃
| Timing Error: <1%
| Current Load: Induction for fan: 3A; Resistive for fan:5A
| Current Load: Induction for valve: 1A; Resistive for valve:3A
| Shell Material: PC+ABS (Fireproof)
| Protection Class: IP20

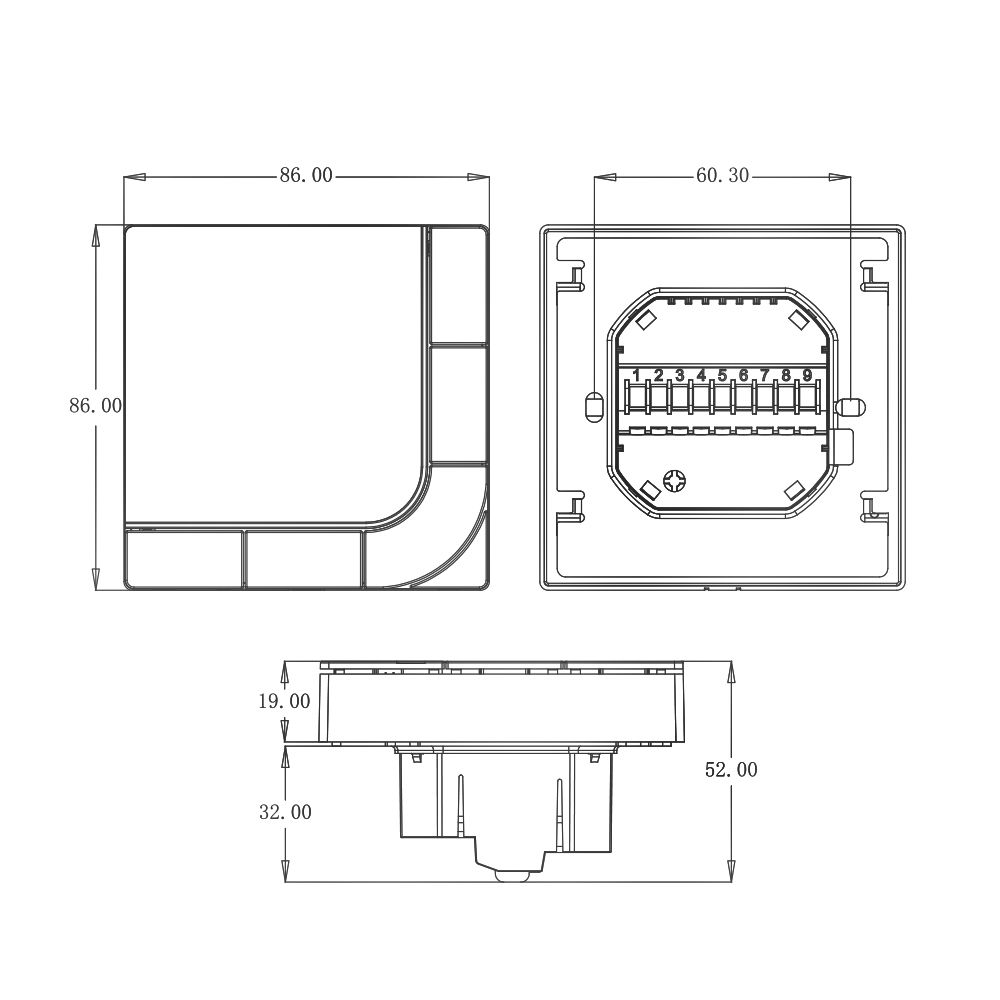

| Dimension: 86*86*19mm
| Installation Box: 86*86mm or European 60mm
| Ambient Temp.: 0-45℃，5-95%RH（Non condensing）
| Storage Temp.: -5-45℃
------------------------------------------------------------------------------------------------------------
FEATURES
| Support WIFI/RS485 wireless communication mode.
| Support multi-voice platform control, Amazon Alexa and Google home.
| 5+1+1 Six Periods Weekly Programmable schedule.
| Mechanical Button to make simple operation

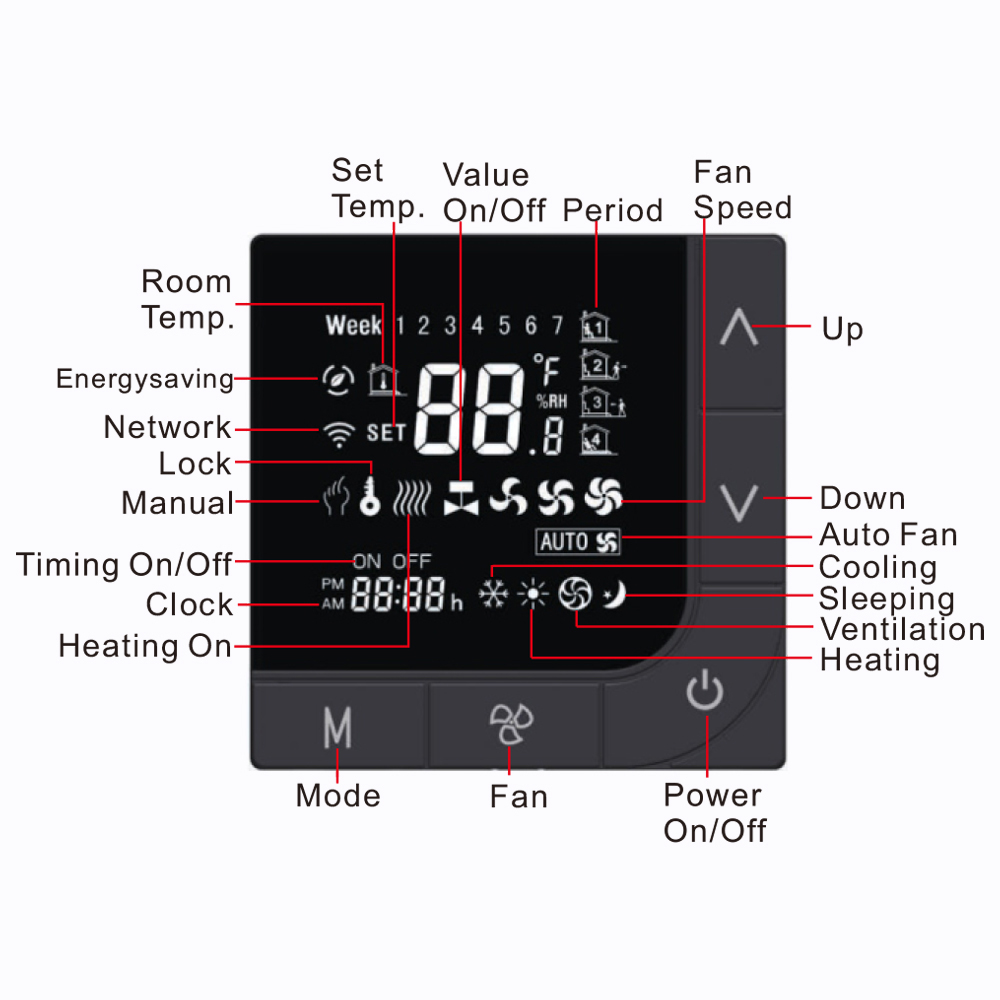

| Large screen display with backlight is easy to read--even in the dark.
| 0.5°C Accuracy keeps temperature within the level you set.
| 86mm hidden box and european 60mm round box is suitable.
| Data memory when power is off.
------------------------------------------------------------------------------------------------------------
The above function are free to combine customize. Please contact with us about more details.
