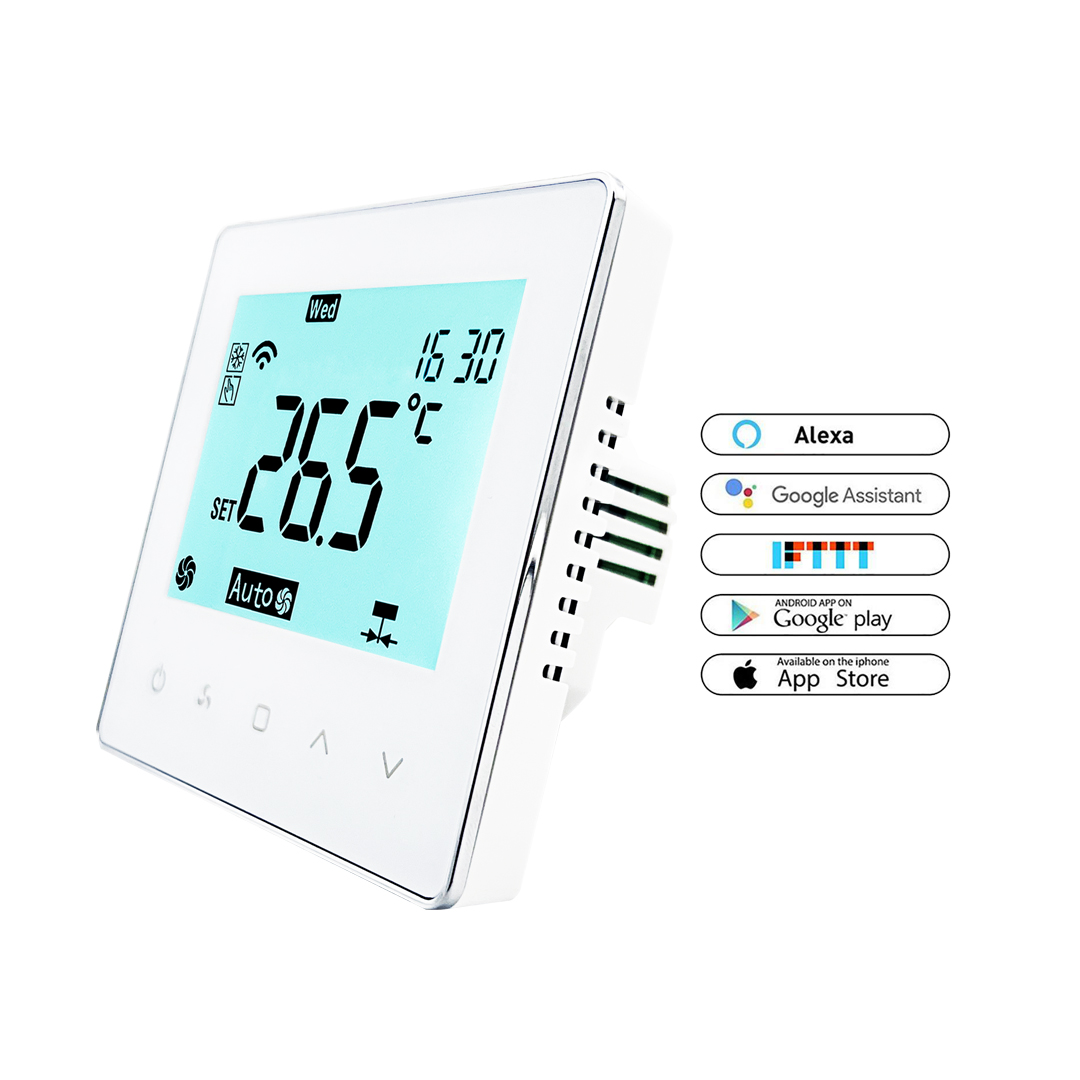

ELECHICO TP528 Series Fan Coil  Smart WiFi thermostat



APPLICATION

TP528 series Modern WIFI Room Thermostats are designed to in/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temp.as reaching the aim of comfort and saving energy.

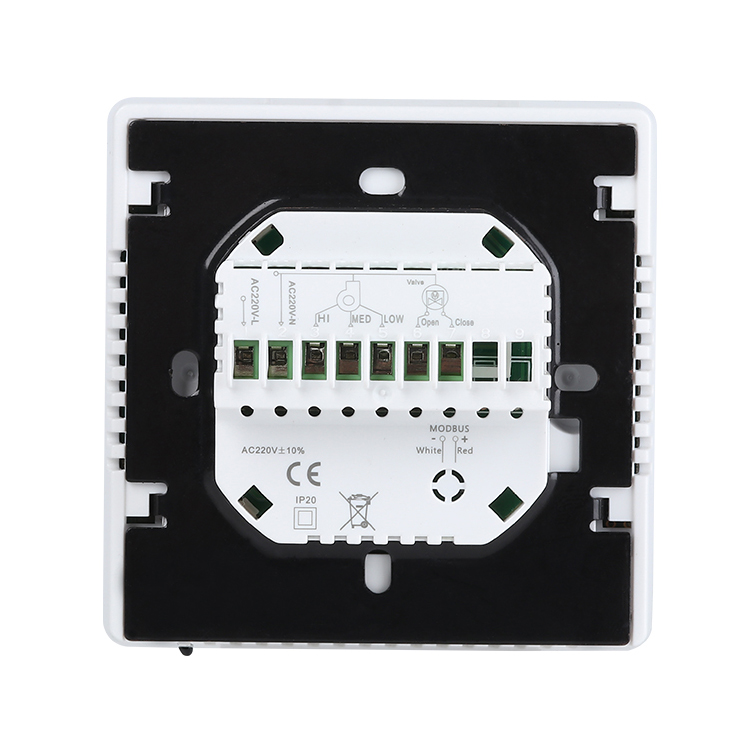

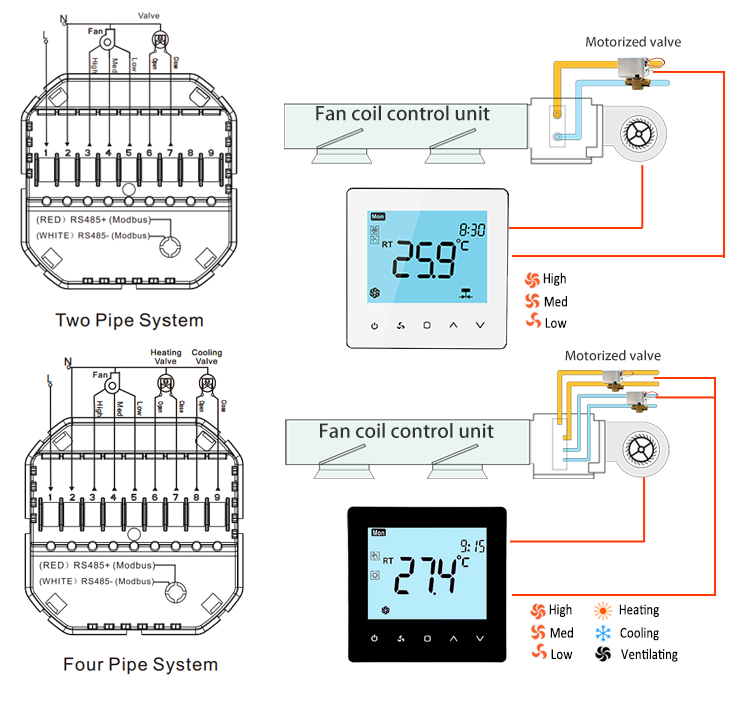

Two pipe; Control Fan Coil Unit and Two Wired Motorized Valve

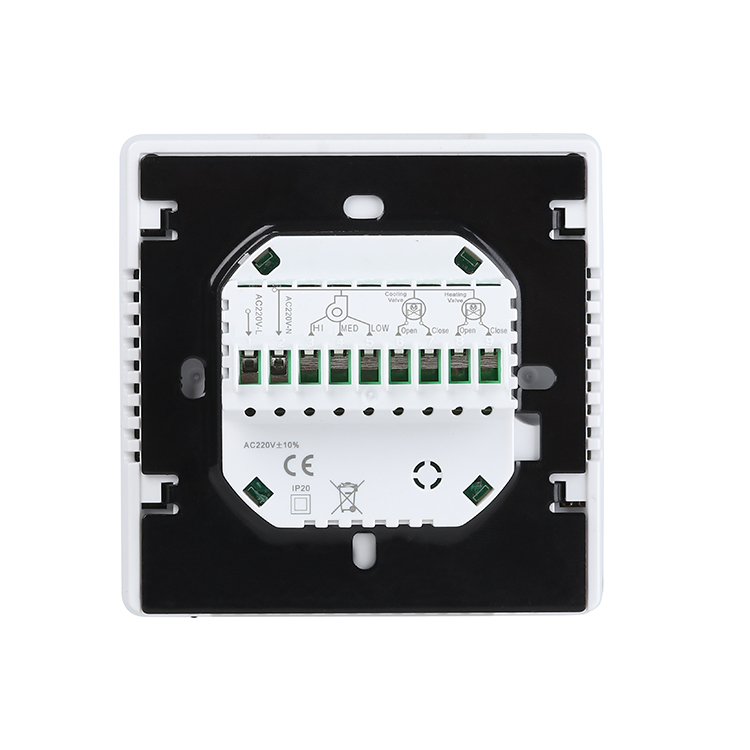

Four pipe; Control Fan Coil Unit and Two Wired Heat Valve and Two Wired Cool Valve.


------------------------------------------------------------------------------------------------------------

 TECHNICAL DATA

|  Power Supply: 110-240V, 50-60Hz

|  Sensor: NTC 3950, 10K

|  Accuracy: ±0.5℃

|  Temp. Range:5-35℃

|  Timing Error: <1%

|  Current Load: Induction for fan: 3A; Resistive for fan:5A

|  Current Load: Induction for valve: 1A; Resistive for valve:3A

|  Shell Material: PC+ABS (Fireproof)

|  Protection Class: IP20

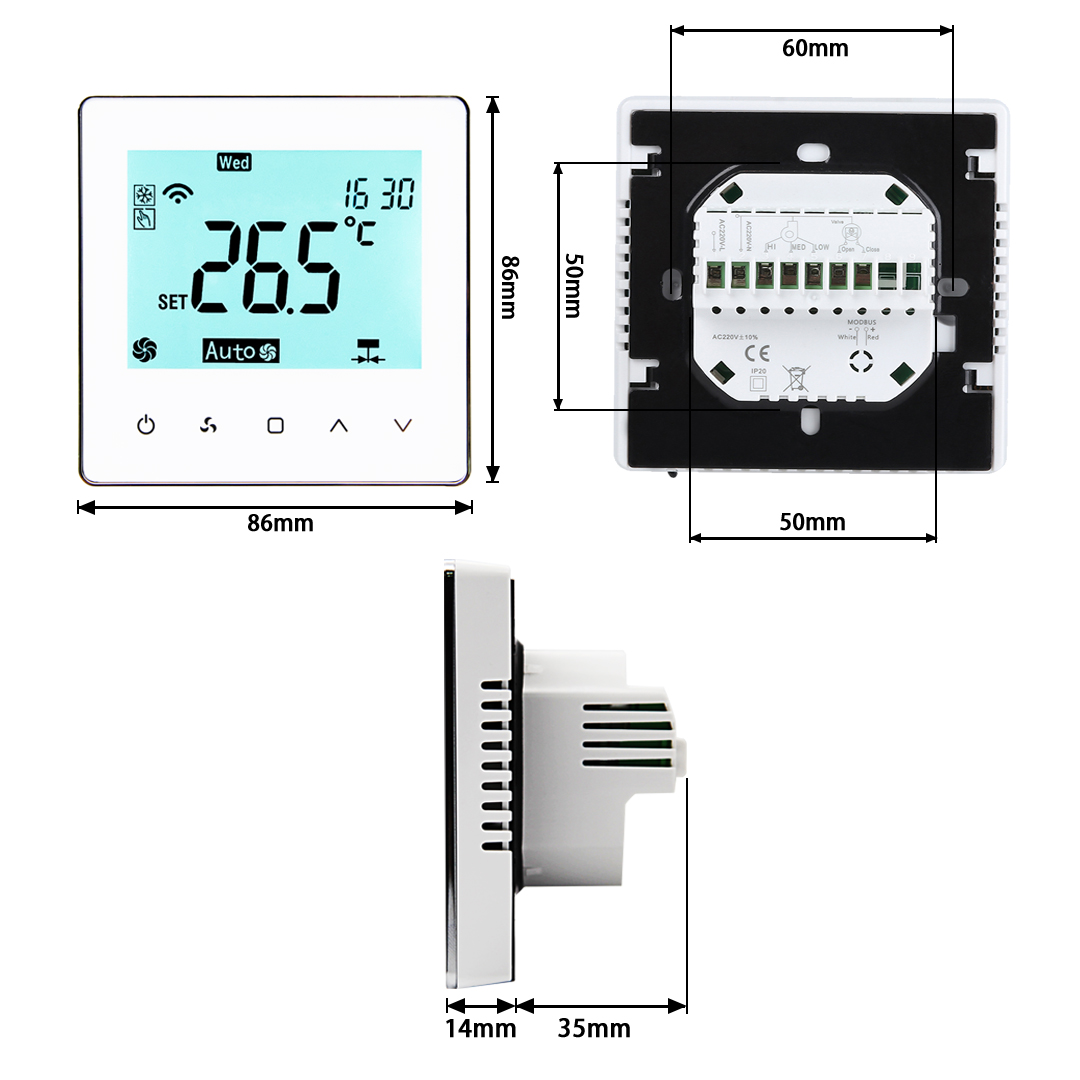

|  Dimension: 86*86*14mm

|  Installation Box: 86*86mm or European 60mm

|  Ambient Temp.: 0-45℃,5-95%RH(Non condensing)

|  Storage Temp.: -5-60℃

------------------------------------------------------------------------------------------------------------

 FEATURES

|  Support WIFI/RS485 wireless communication mode.

|  Support multi-voice platform control, Amazon Alexa and Google home.

|  5+1+1 Six Periods Weekly Programmable schedule.

|  Mechanical Button to make simple operation

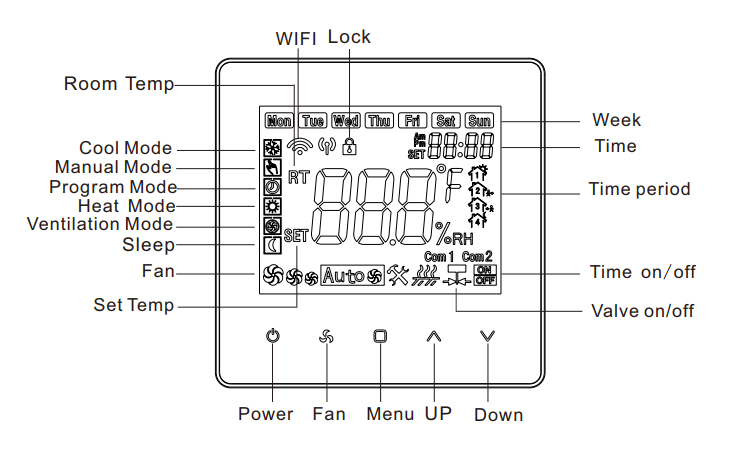

|  Large screen display with backlight is easy to read--even in the dark.

|  0.5°C Accuracy keeps temperature within the level you set.

|  86mm hidden box and european 60mm round box is suitable.

|  Data memory when power is off.

------------------------------------------------------------------------------------------------------------

The above function are free to combine customize. Please contact with us about more details.
