CCST6001 WIFI/Modbus Programmable Fan Coil Thermostat

>> This is a durable, safe and reliable thermostat for Fan Coil Unit HVAC System, which is easy to install and program. It can ensure even and comfortable temperature control.

>> With the free mobile app, you can conveniently control your thermostat from anywhere and anytime, which suits your lifestyle and provides you with an energy-saving and comfortable living environment.

>> It is suitable for use in office buildings, hospitals, schools and entertainment facilities for temperature control.

MODEL DEFINITION

Two pipe; Control Fan Coil Unit and Two Wired Motorized Valve

Four pipe; Control Fan Coil Unit and Two Wired Heat Valve and Two Wired Cool Valve.

TECHNICAL DATA

>> Fan Relay Amps Resistance: 5A; Inductive: 3A

>> Valve Relay Amps Resistance: 3A; Inductive: 1A

>> Sensor: NTC3950, 10K

>> Set Temp. Range: 5 -35 ℃

>> Accuracy: ±0.5 ℃

>> Dispaly Temp. Range: 5 ~ 99℃

>> Ambient Temp.:0~45 ℃

>> Ambient Humidity: 5 ~ 95 % RH (Non Condensing)

>> Storage Temp.:0~ 45℃ Timing Error: < 1%

>> Power Consumption: <1.5W

>> Shell Material: PC +ABS ( Fireproof)

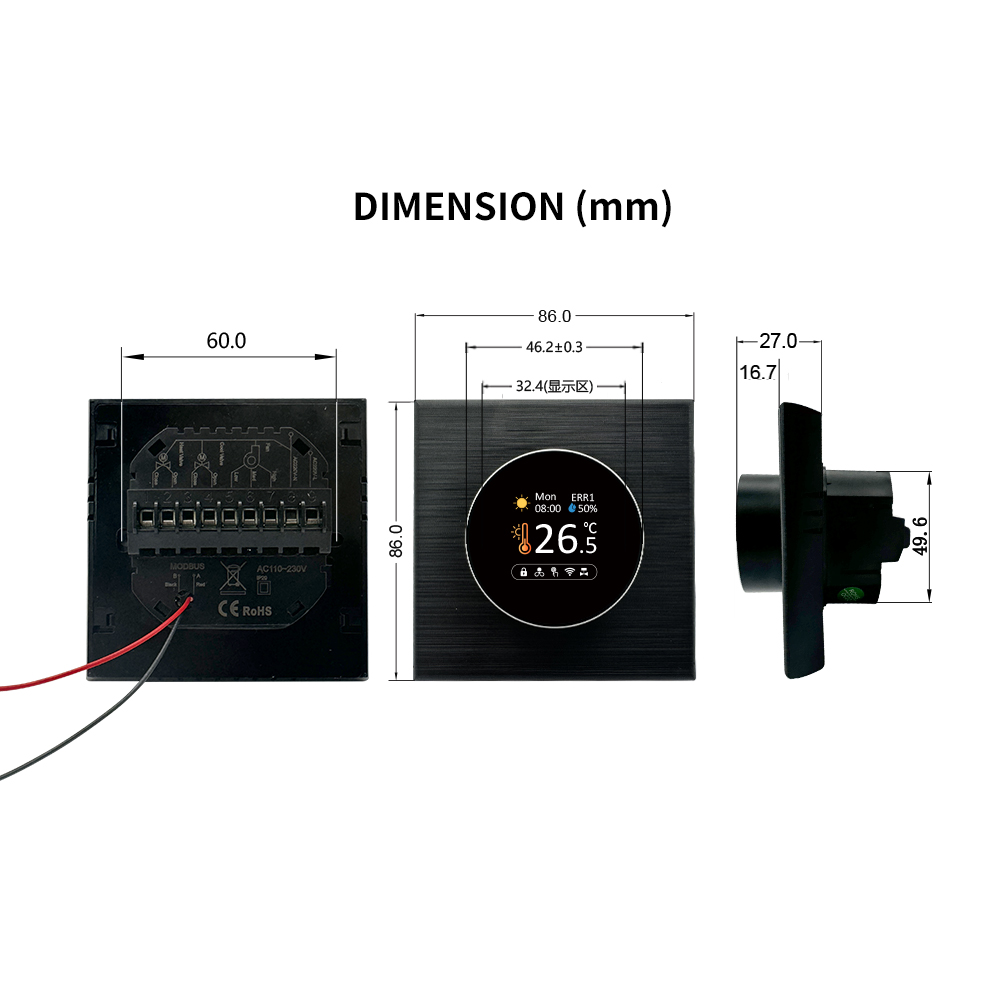

>> Installation Box: 86 * 86mm Square or European 60mm Round

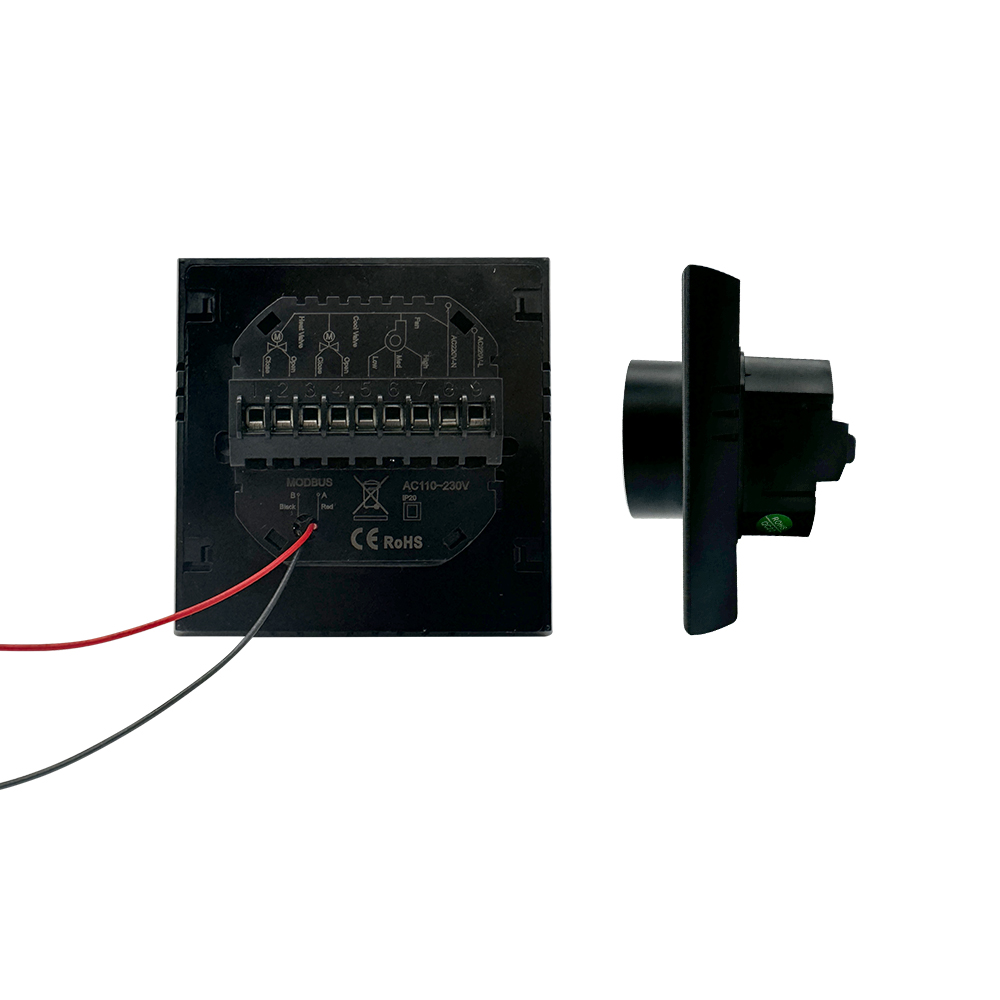

>> Box Wire Terminals: Wire 2 X 1.5 mm² or 1 x2.5 mm²

>> Protection Class: IP20

>> Buttons: Capactive Touch Buttons

PRODUCT FEATURES

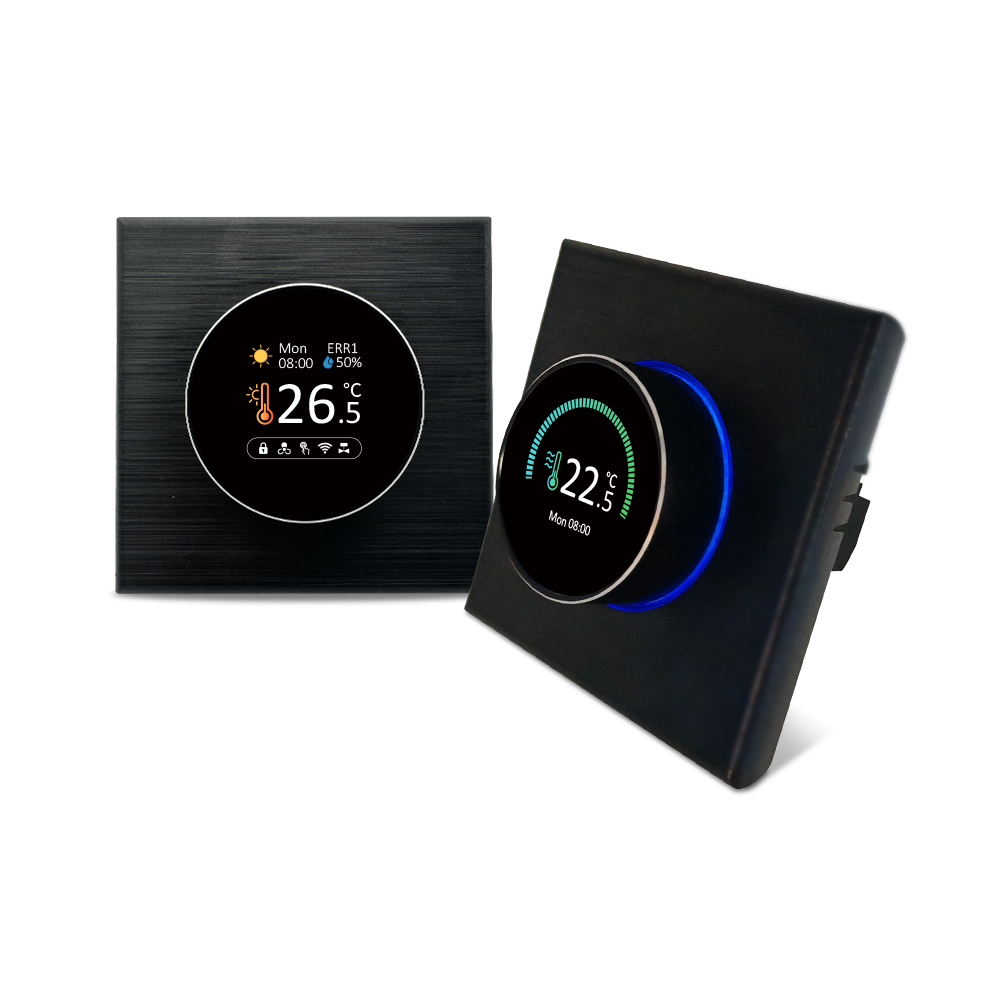

>> Variety brushed back panel options are suitable for different home styles.

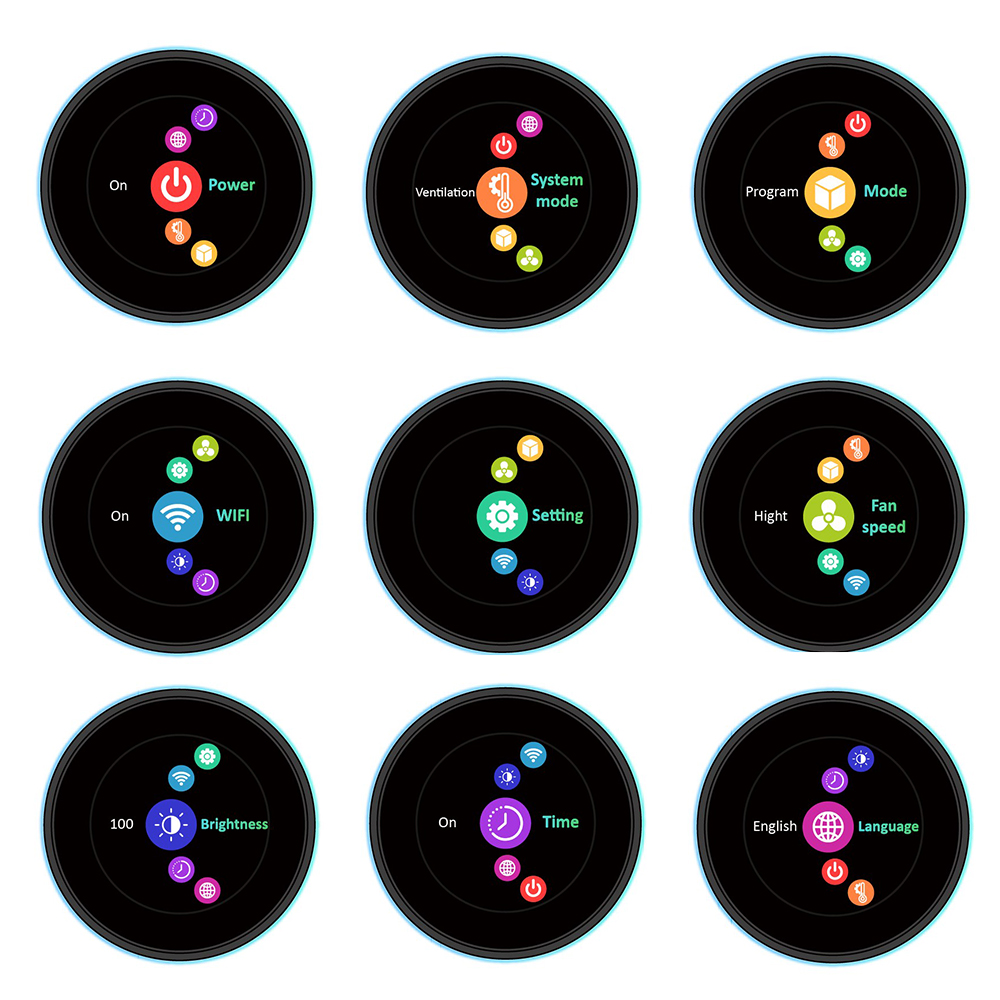

>> The eight main control options are set directly by twisting knob.

>> Compared to traditional button control, knob control hase faster reponse and better feel.

>> The weather and humidity can be synchronized after the device is connected to the Internet.

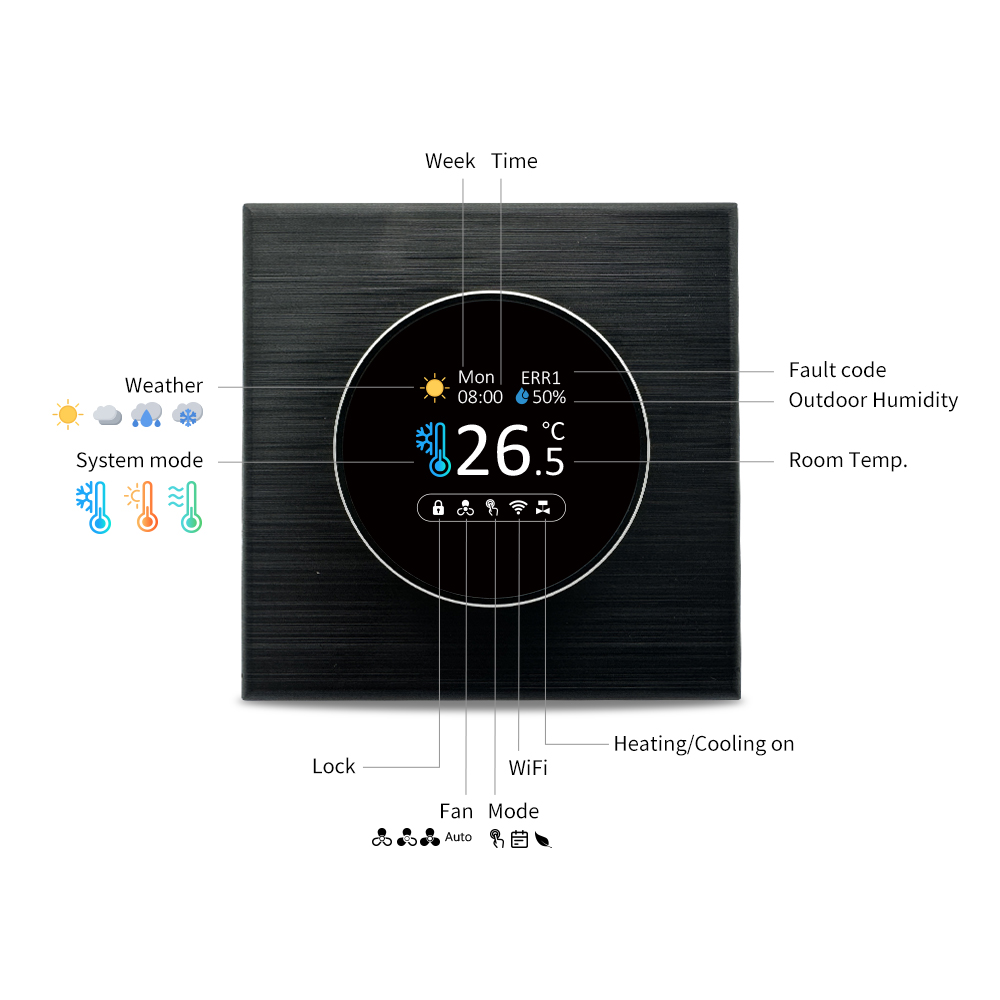

>> Colorful stereo knob with TFT true color screen. The display is really beautiful.

>> Sensititive knob control, APP control and voice control-multiple interactive methods to create more convenient temperature control.
