Fan Coil Programmable Smart Room Wifi Thermostat
AC-6001 series Modern Touch Screen Room Thermostats are designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and settingtemp. as reaching the aim of comfort and saving energy.
TECHNICAL DATA
>> Power Supply:95 ~240 VAC, 50~60Hz or 24V DC/AC, 50~60Hz
>> Fan Relay Amps Resistance: 5A; Inductive: 3A
>> Valve Relay Amps Resistance: 3A; Inductive: 1A
>> Sensor: NTC3950, 10K
>> Set Temp. Range: 5 -35 ℃
>> Accuracy: ±0.5 ℃
>> Dispaly Temp. Range: 5 ~ 99℃
>> Ambient Temp.:0~45 ℃
>> Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
>> Storage Temp.:-5~ 45 ℃ Timing Error: < 1%
>> Power Consumption: <1.5W
>> Shell Material: PC +ABS ( Fireproof)
>> Installation Box: 86 * 86mm Square or European 60mm Round Box
>> Wire Terminals: Wire 2 X 1.5 mm² or 1 x2.5 mm²
>> Protection Class: IP20
>> Buttons: Capactive Touch Buttons
PRODUCT FEATURES
On Appearance

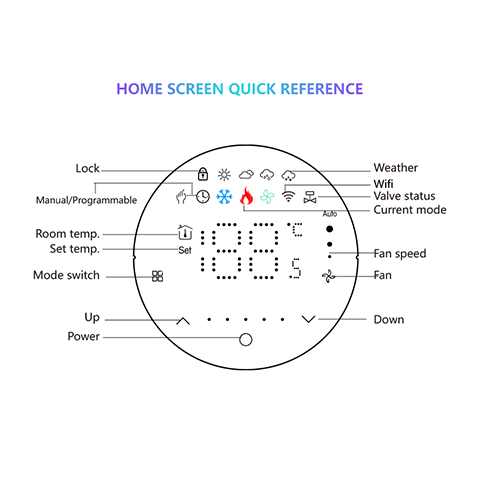

>> LED LCD display for a user-friendly interface.
>> Touch-sensitive operation buttons for smooth interaction.
>> High-strength and scratch-resistant glass lens for easy cleaning.
>> Ultra-thin embedded panel, perfectly fitting various wall surfaces.
>> Borderless design for a minimalist and elegant look.
>> Compatible with standard 86mm square back box and 60mm European back box, suitable for all installation environments.
>> Available in white for an elegant look and black for a sleek appearance.
>> Innovative inclusion of a light ring, adding vibrant colors to your home.
On Functionality
>> Strict temperature control precision (±0.5℃) provides the warmth you desire.
>> Power outage protection ensures the safe preservation of all your settings.
>> 5+1+1 preset programming with six time periods per day, promoting green energy-saving practices and reducing expenses intelligently.
>> Supports the creation of local device groups/sharing, enabling centralized control without limitations on the number of devices or multi-platform control restrictions.
>> Seamless integration with Tmall Genie, Amazon Echo, and Google Home, offering a whole new voice-controlled experience.
