CCYC003 Air source Tuya wifi swimming pool heat pump controller
| Type: CCYC003
| Setting-range: 8～40 Celsius
| Temperature control Accuracy : +/-1 Celsius
| Power supply: 220±10%(VAC), 50/60Hz
| Mode: cooling, heating, Auto
| Output:Compressor ,4-way valve, Fan motor, cycle water pump…etc
| Simulation sensor:Inlet water temperature sensor, Outlet temperature sensor, Climate temperature sensor…etc
| Dry contact input signal:Low pressure switch, Low pressure switch, Water flow switch…etc
| One compressor control
| With EEV function, 24 hour cycle Timing ON/OFF function
| With WIFI function
| Mounting size: 117×100×30mm

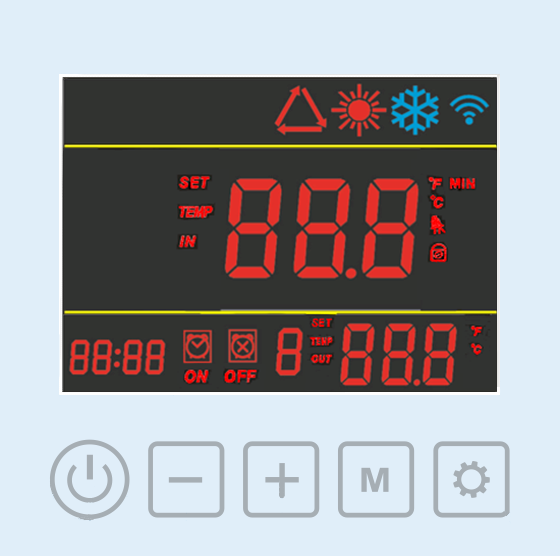

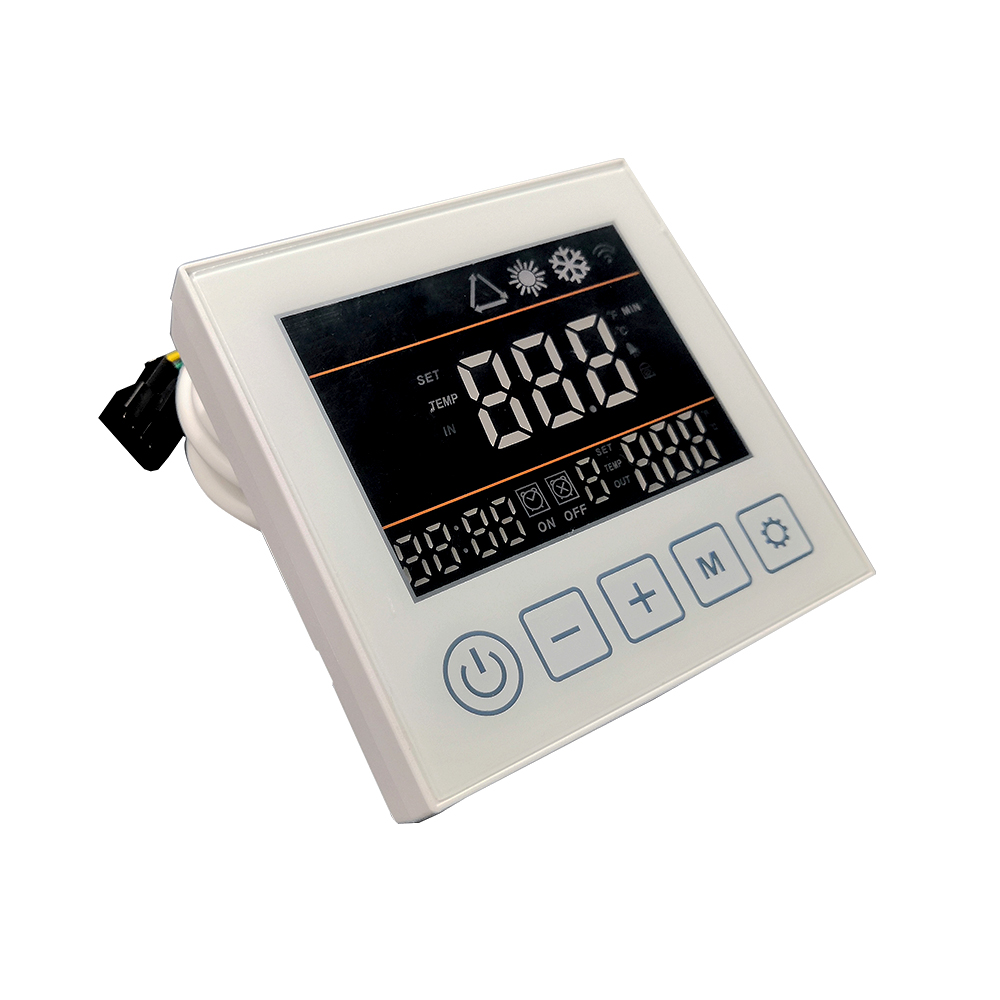

| Wring control : LED display

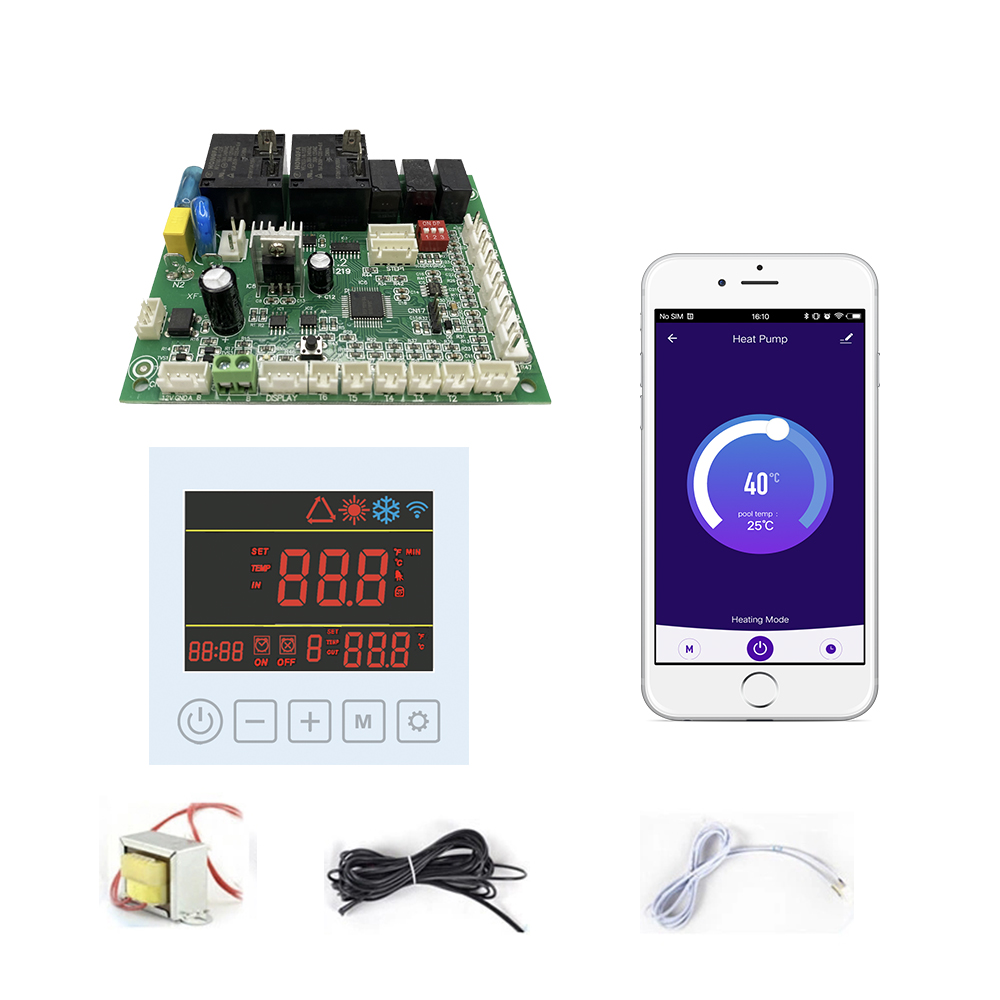

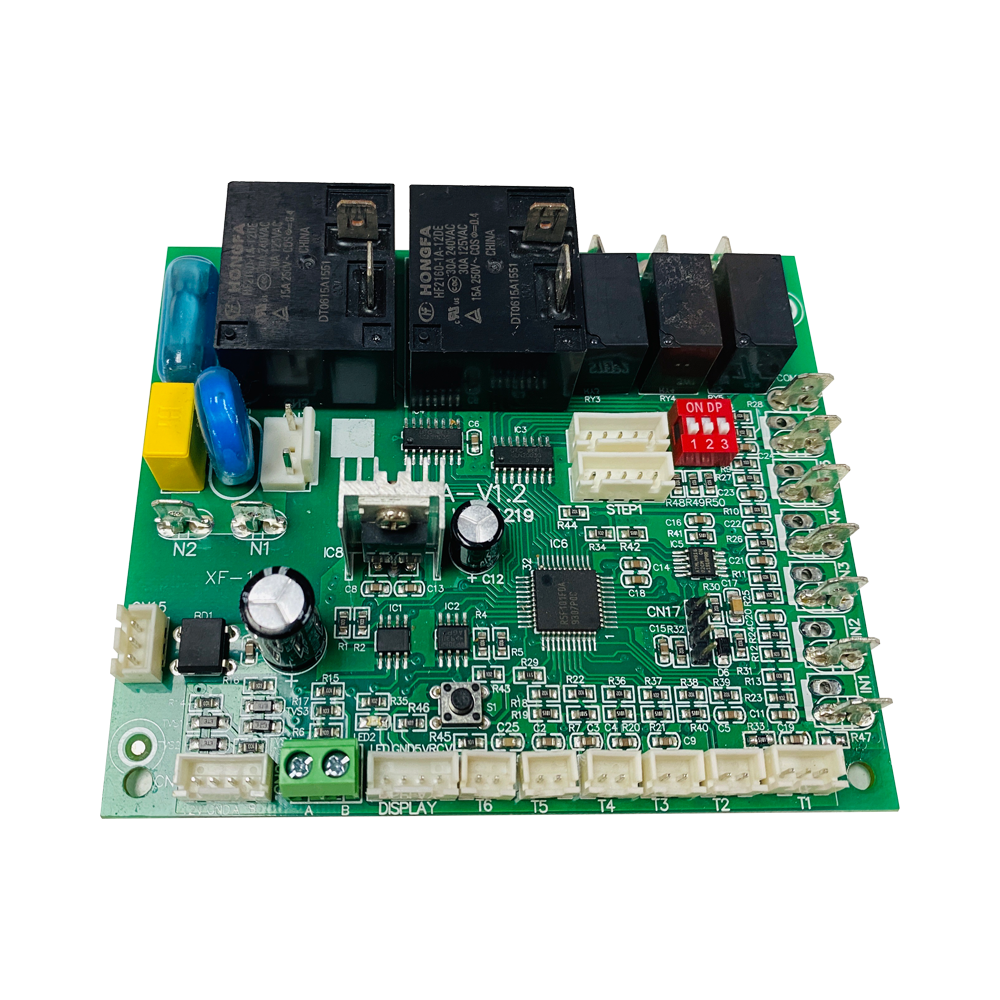

| Product list:Main board(1) +LED display(1)+connection wires(1) +temp.sensors(6) +transformer (1)

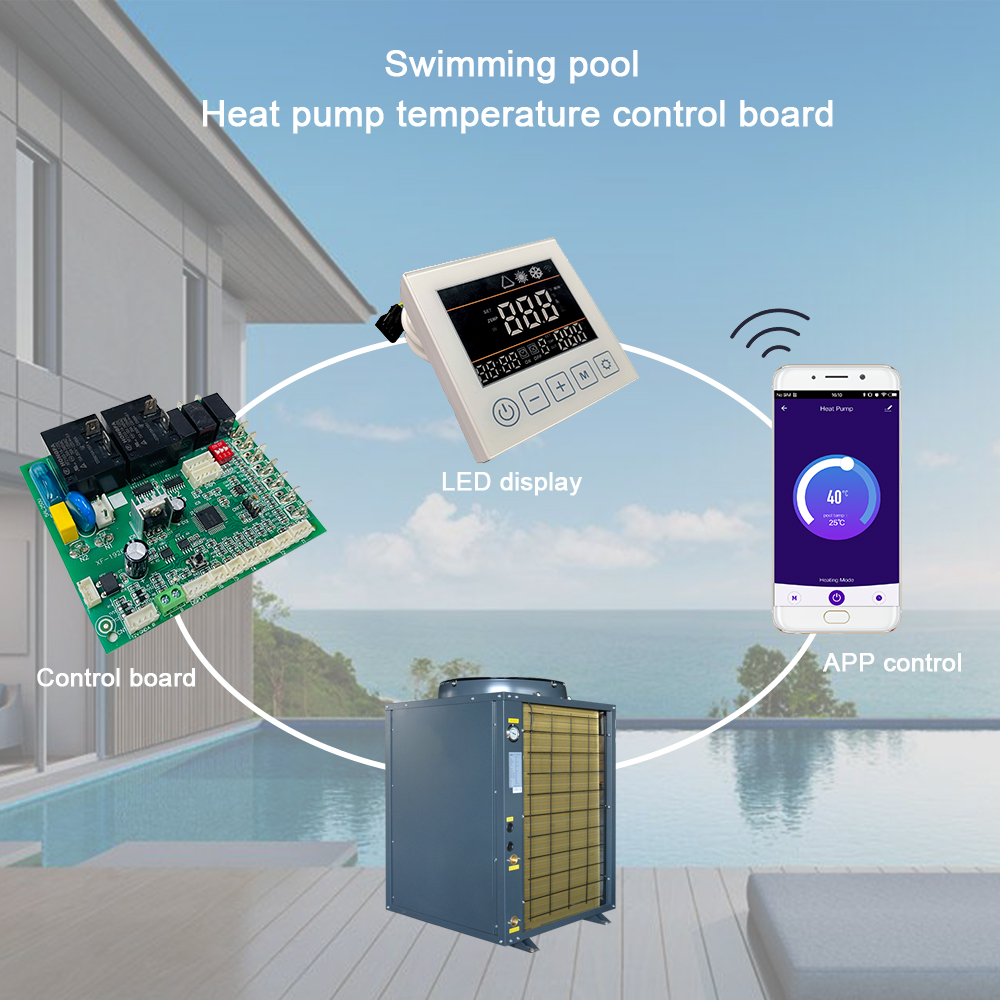

| Suitable for simple swimming pool heat pump machine,Domestic hot water heat pump machine...etc.
