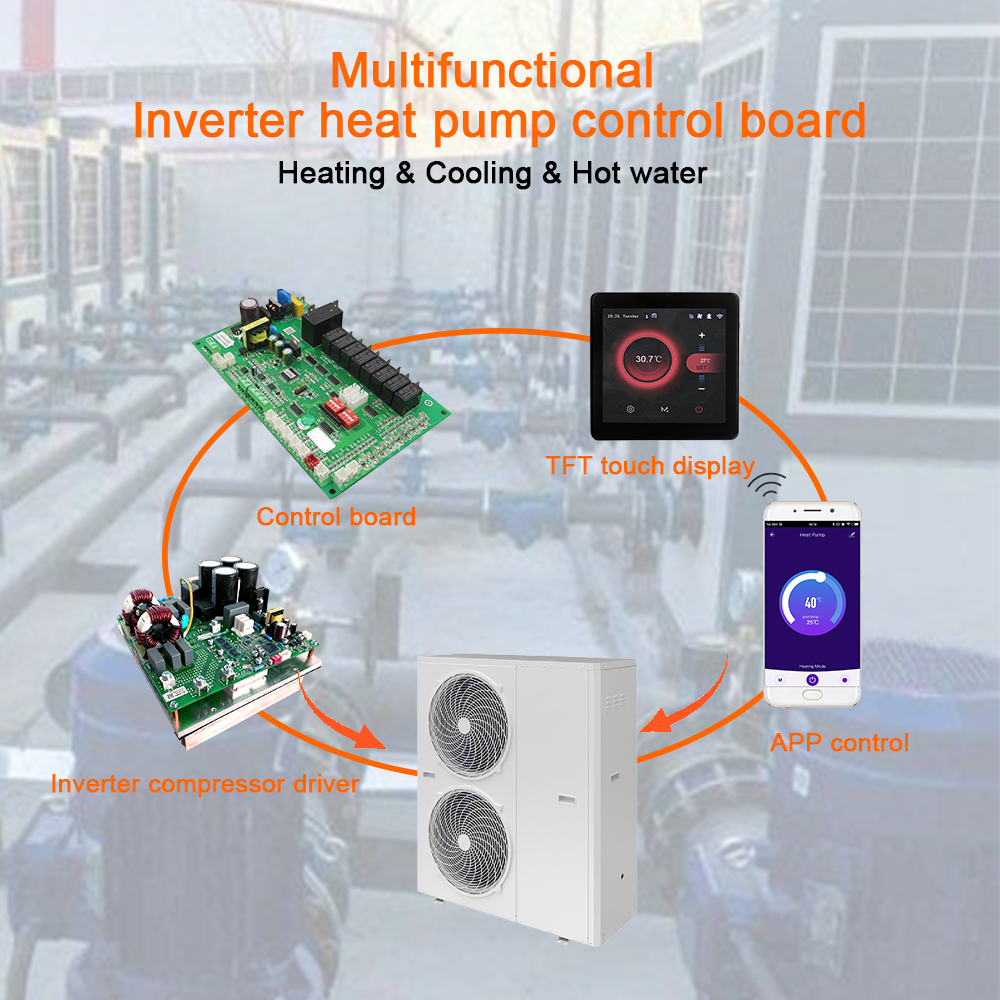

CCHW004 commercial inverter heat pump Controller
| Type: CCHW004
| Setting-range: 5～60 Celsius
| Temperature control Accuracy : +/-1 Celsius
| Power supply: 380/220±10%(VAC), 50/60Hz
| Mode: Heating & Cooling & Hot Water
| Sensor type: NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K)
| Output: Water pump, Fan, Electric chassis heating, Electric crankshaft heating, Three-way valve, Four-way valve, Waterway electric Heating, Solenoid valve…etc
| Simulation sensor: Water inlet temperature, Water outlet temperature, Return gas temperature, Exhaust gas temperature, Ambient temperature, Evaporator coil temperature, Cooling coil temperature, Water tank temperature…etc.
| Dry contact input signal: Compressor high pressure switch, Compressor low pressure switch, Water flow switch, emergency switch, Air Conditioning Demand Switch…etc
| Two pressure sensor input: High pressure sensor, Low pressure sensor
| One compressor control, Compressor current detection, with EEV control, EVI control
| AC fan, DC fan are optional
| Swimming pool, hot water or HVAC are optional
| Power off memory function

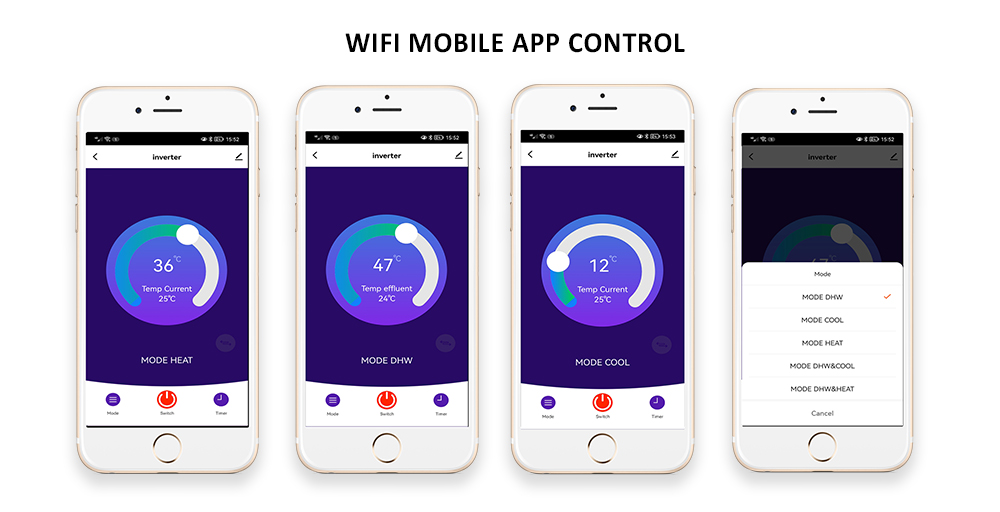

| With Tuya WIFI function

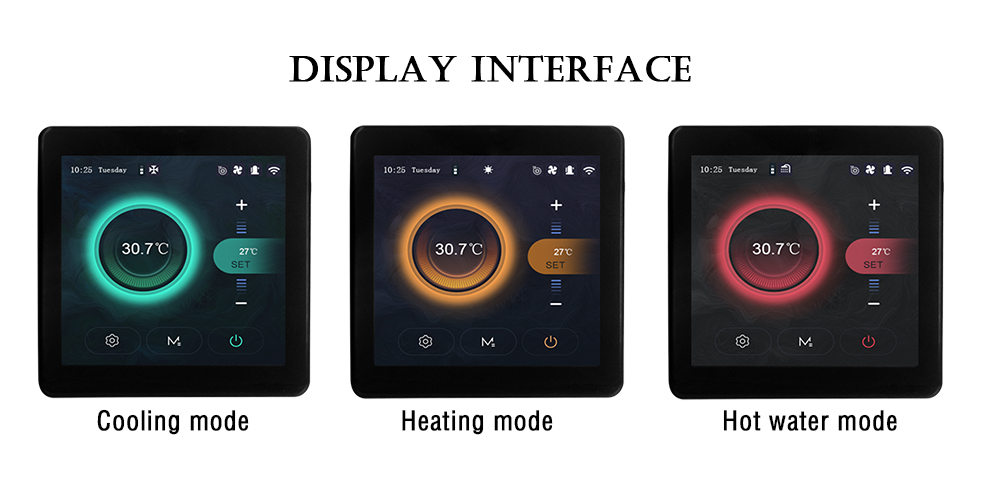

| Wring control : TFT color touch display

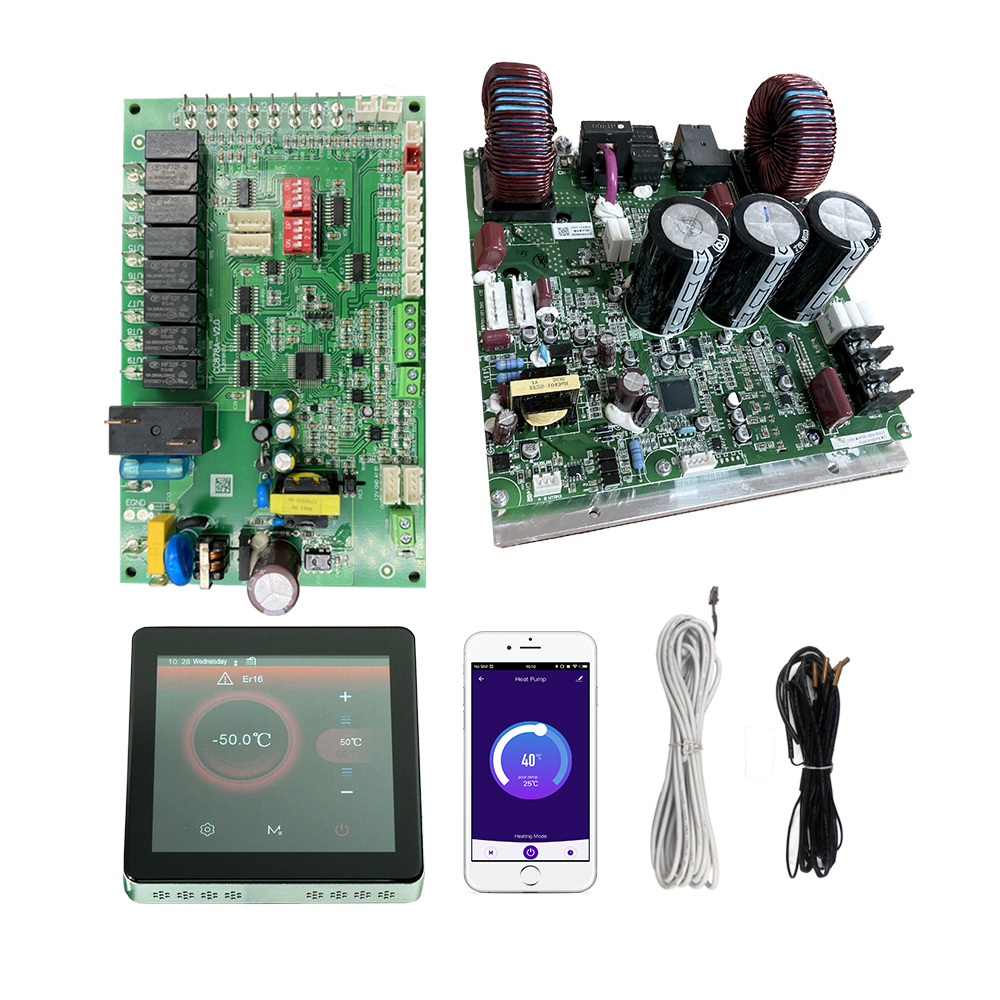

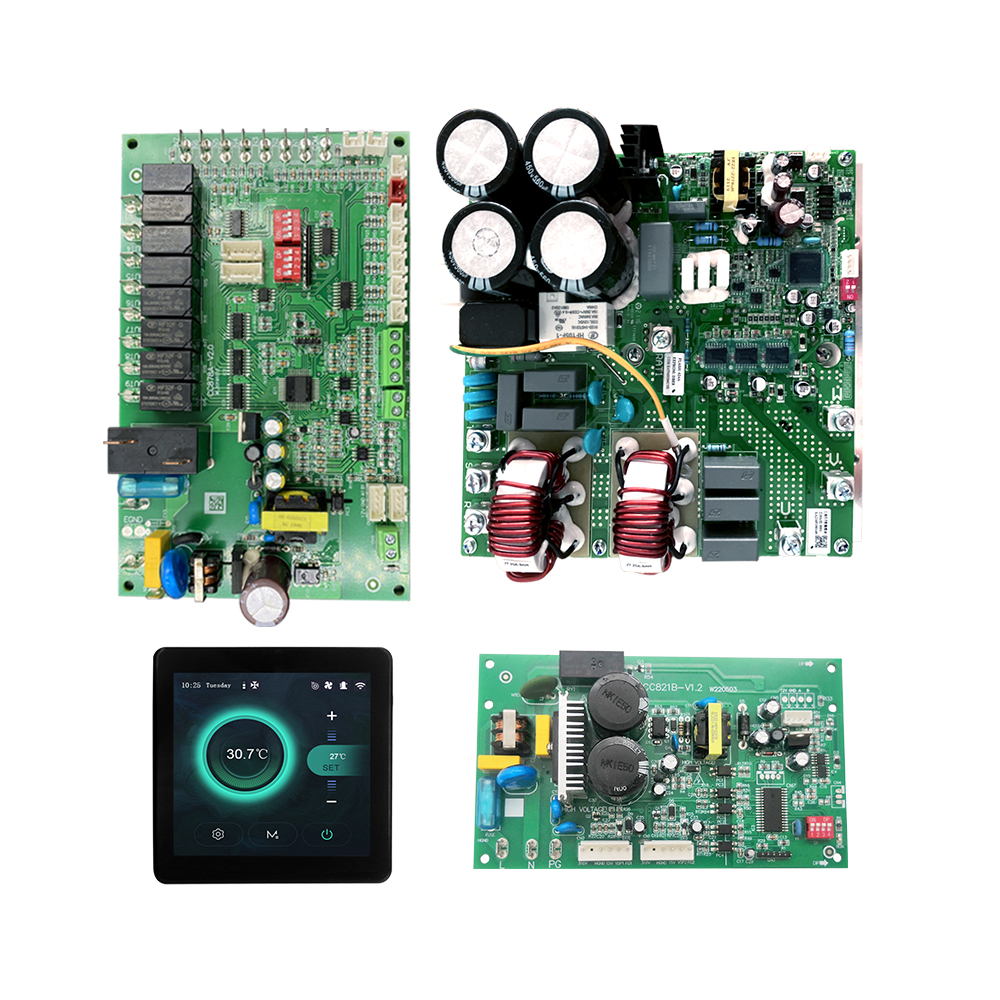

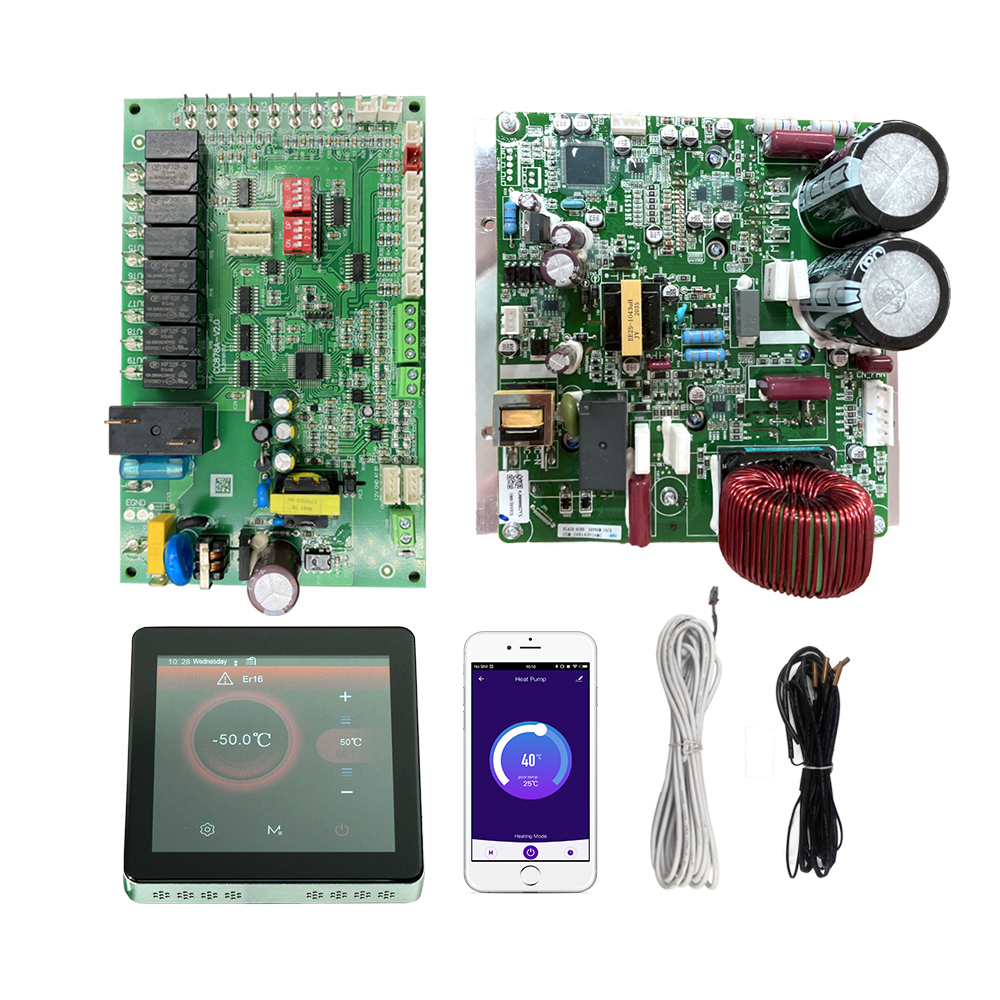

| Product list: Main board(1) +Inverter driver(1)+display(1)+connection wires(2) + temp.sensors(8)
| Suitable for commercial heating inverter heat pump machine.
