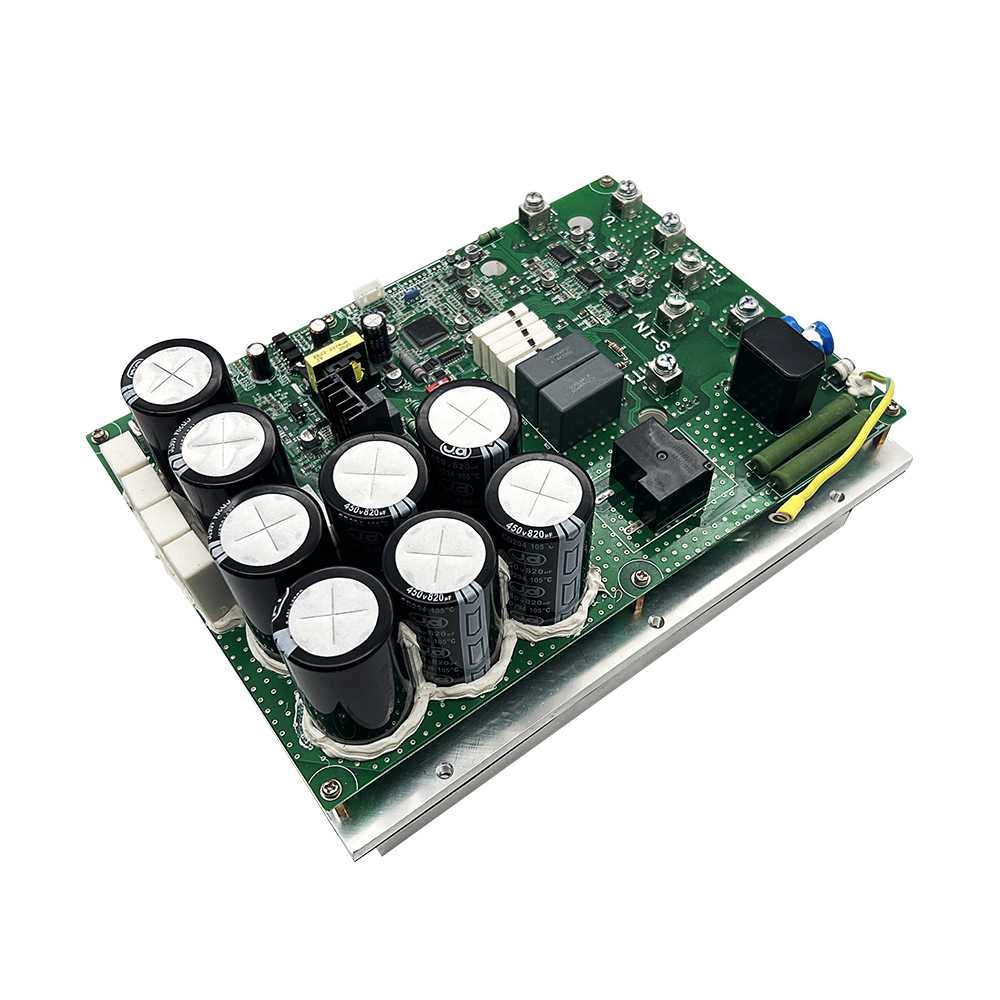

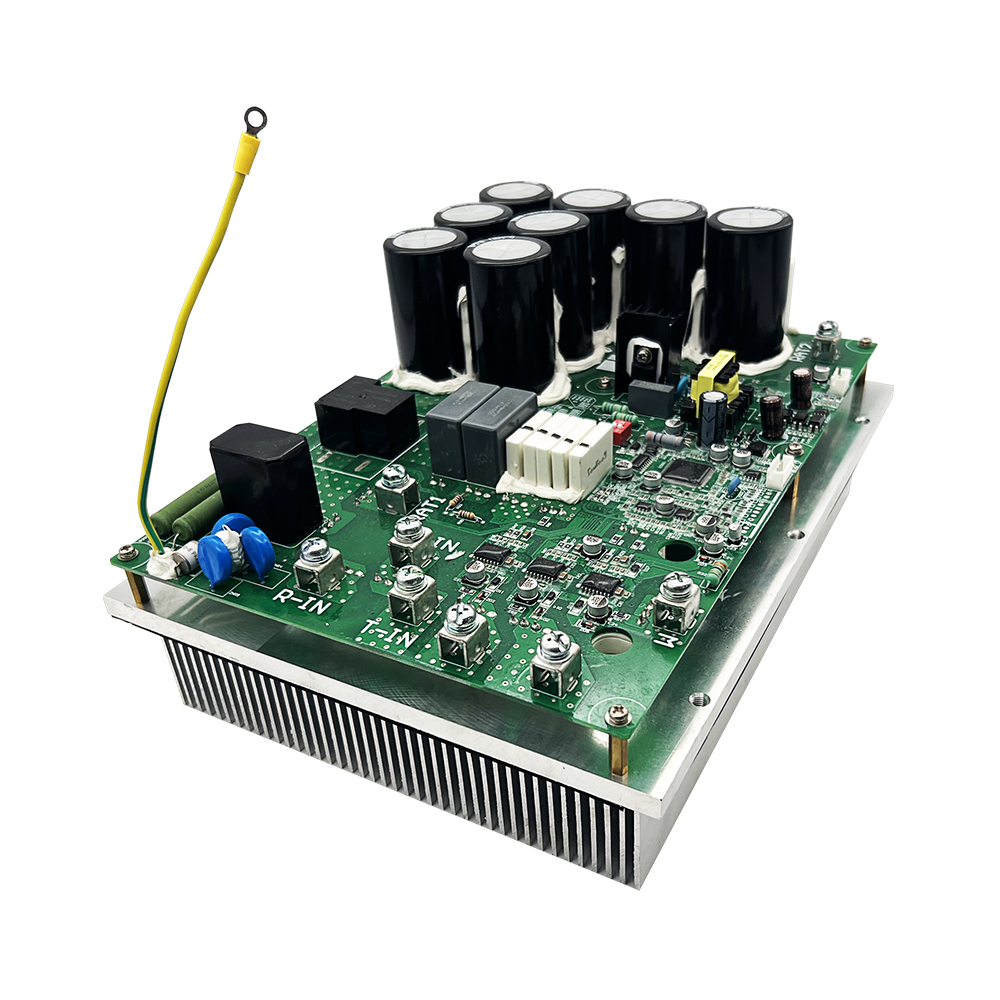

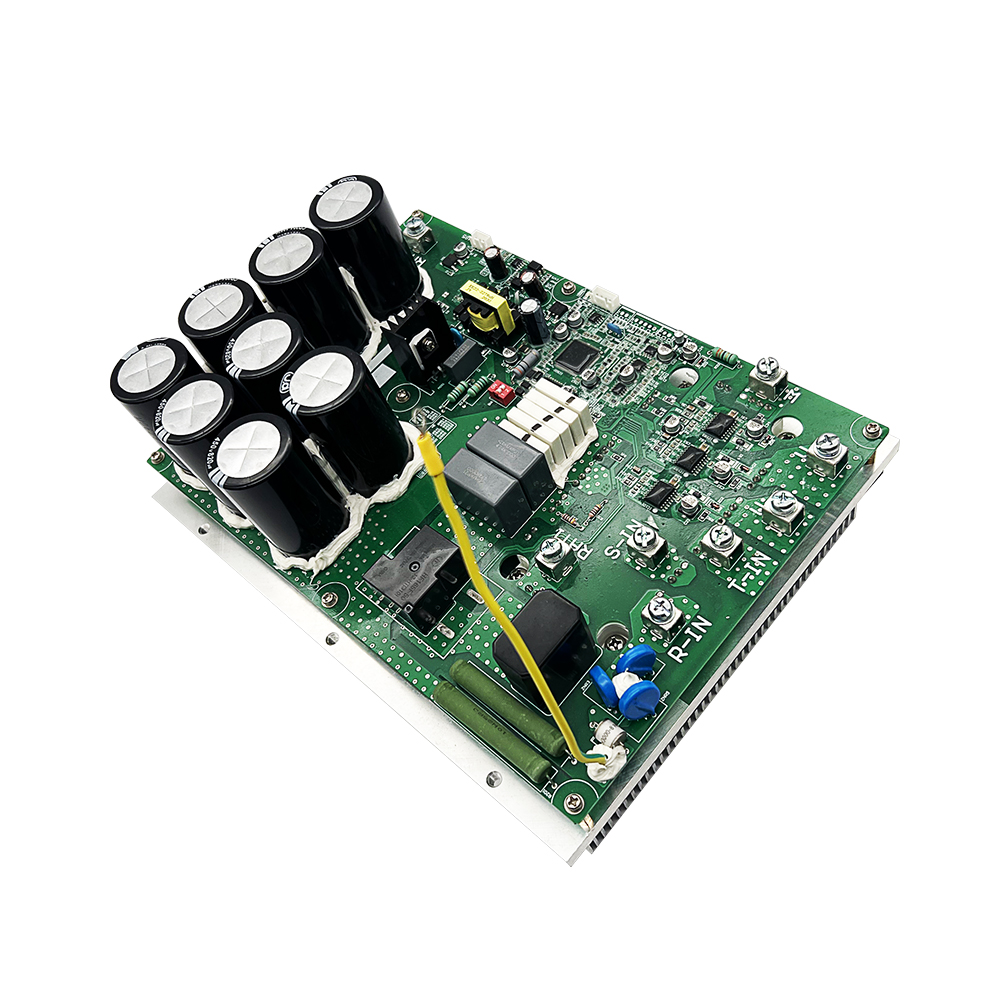

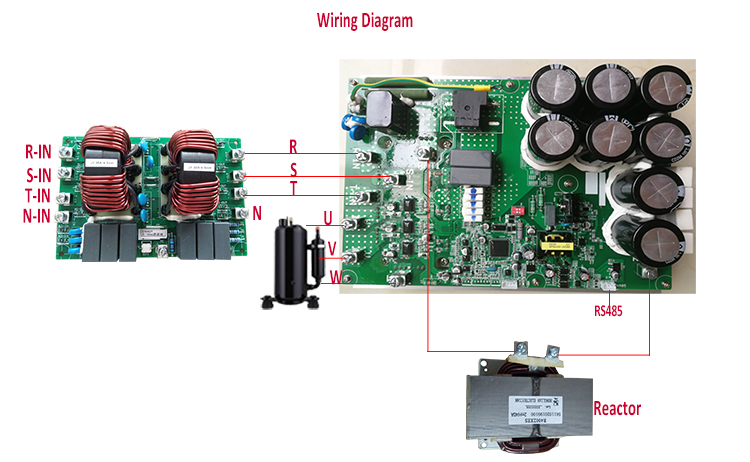

15 kw and 25kw three phase of inverter compressor driver board
This driver board is designed for driving DC frequency inverter compressor. This module is controlled by a position sensorless 180 degree sine wave vector and driven by Control of BLDC Compressor. It has abnormal bus voltage and the compressor lack of phase protection, IPM module temperature protection, compressor
over-current protection and other functions.
Parameters
|
Rated input voltage
|
Three phase standard voltage 380 V 50 / 60 Hz, operable voltage 320-460 V
|
|
Input maximum power
|
15-25KW 380V AC
|
|
Input maximum current
|
25-35A
|
|
PFC
|
PF value (0.70-0.99)
|
|
Carrier frequency
|
5.0k Hz (adjustable according to compressor noise)
|
|
Output mechanical frequency
|
15-120Hz (ultimately according to the specification of the compressor)
|
|
Control type
|
180-degree sinusoidal vector driving
|
|
Communication interface
|
RS485
|
|
Communication protocol
|
Standard Modbus RTU Baud rate 1200 bps
|
|
Operating temperature range
|
-20 To 60℃
|
|
Operating humidity range
|
<95% and noncondensing
|
|
Size
|
270*190*135mm
|
