TP201 Electric Floor Water Heating Smart WiFi Thermostat
TP201 range has been developed to control electric underfloor,water heating or water/gas boiler systems.These units are designed for use in commercial, industrial, civil and domestic properties.
Different application may need different technical data, please send us an inquiry with specific requirements, we will contact you immediately.
TECHNICAL DATA

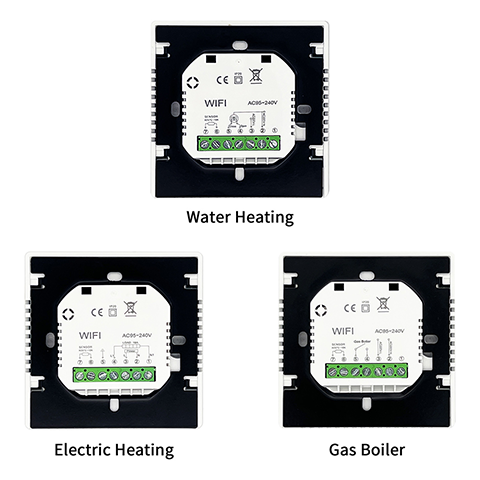

** Application: Electric floor heating, 16A; Water heating, 5A; Water /Gas Boiler, 5A
** Input Voltage: 95 ~ 240VAC, 50 ~60Hz
** Temperature Range: 5-35℃
** Accuracy: +/-1℃
** Temperature Sensor: NTC 10K, B:3977
** Weekly Programmable: 5+1+1 Schedule
** Voice Control: Amazon Alexa, Google Home:
** Input Voltage: 95 ~ 240VAC, 50 ~60Hz
** Temperature Range: 5-35℃
** Accuracy: +/-1℃
** Temperature Sensor: NTC 10K, B:3977
** Weekly Programmable: 5+1+1 Schedule
** Voice Control: Amazon Alexa, Google Home:

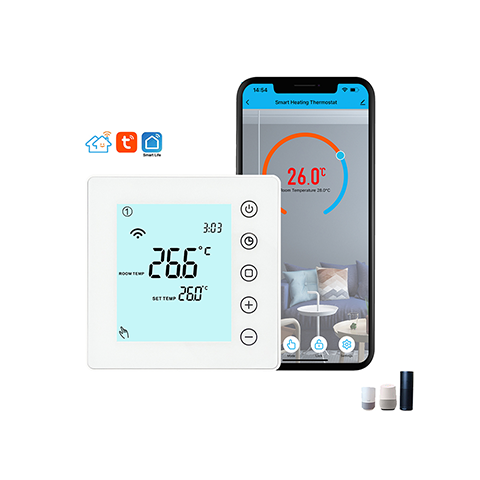

** APP: Android/ ios, SmartLife
** Shell material: PC+ABS (flame retardant)

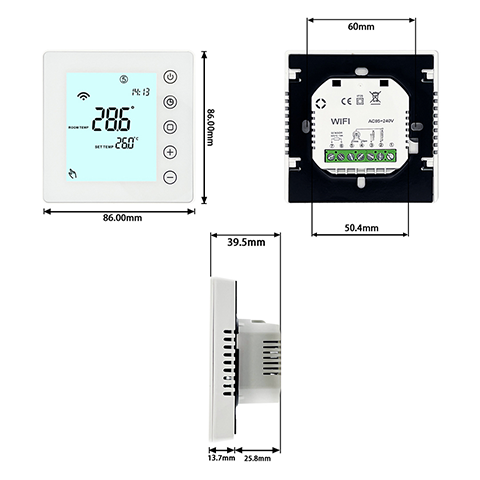

** Installation Hole distance: 60mm
** Shell material: PC+ABS (flame retardant)
** Installation Hole distance: 60mm
PRODUCT FEATURES
** Very simple home screen;
** Acrylic face plate;
** Large, backlit display;
** Touch control panel;
** 5+1+1 six period per day programming;
** Simple, one-touch temperature control over-ride;
** Pre-set temperatures maintained within +/- 1°C;
** WIFI/ZIGBEE/MODBUS communication optional.
** Internal and external sensors allow control of both air and/or floor temperatures;
** Suitable for installation in a standard single pattress box or European 60mm round box;
