HT-009 Water Gas Boiler Floor Heating Wifi Smart Thermostat
This heating thermostat range has been developed to control electric underfloor, water heating or water/ gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.
Different application may need different technical data, please send us an inquiry with specific requirements, we will contact you immediately.
TECHNICAL DATA
>> Power Supply: 95 ~240 VAC, 50~60Hz or 24V DC/AC,50~60Hz
>> Current Load: 5A (water heating, water/gas boiler), 16A (electric heating)
>> Sensor: NTC3950, 10K
>> Accuracy: ±1°C
>> Set Temp. Range: 5-35°C
>> Room Temp. Range: 5-99°C
>> Display Temp. Range: 5 ~ 99°C
>> Ambient Temp.: 0~ 45°C
>> Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
>> Storage Temp.:-5~ 45°C
>> Power Consumption: <1. 5W
>> Timing Error: < 1%
>> Shell Material: PC +ABS ( Fireproof)
>> Installation Box: 86 * 86mm Square or European 60mm Round Box
>> Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
>> Protection Class: IP20
>> Buttons: Capacitive Touch Buttons
PRODUCT FEATURES
On Appearance

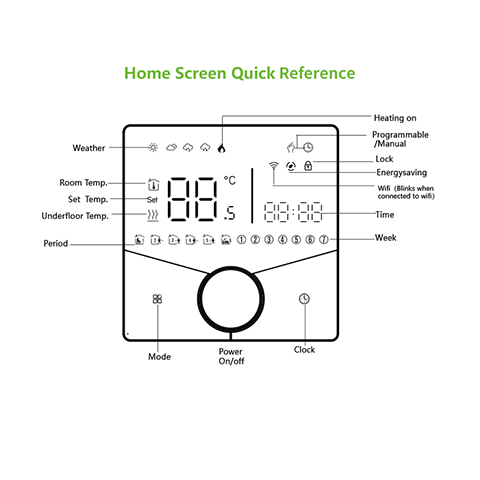

>> LED display, more friendly interface;. LED matrix light, simple display, energy saving, protect your eyes.
>> Touch buttons to make simple operation.
>> The ultra-thin embedded panel perfectly fits all kinds of walls; The visiable thickenss above the wall is only 12.4mm.
>> Frameless acrylic panel design, simple and elegant;

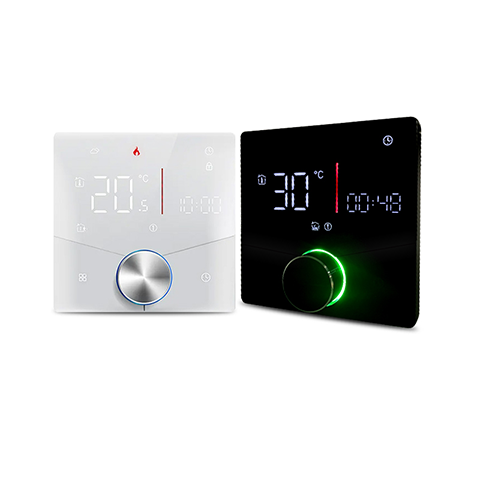

>> Classic black/white color scheme, seamlessly integrated.
>> Compatible with standard 86mm square cassettes and 60mm European cassettes to meet all installation environments;
>> Interlock to connect gives you easy installation.
On Functionality

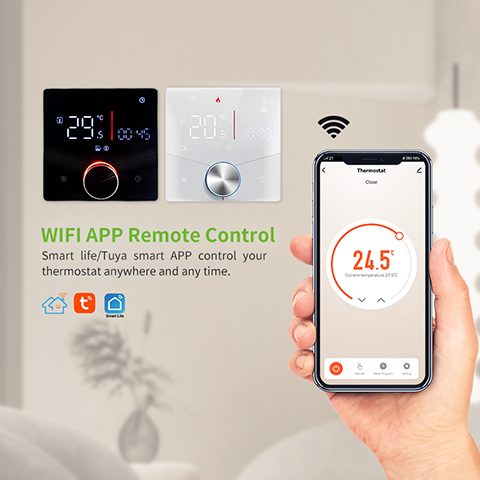

>> Rich function options, Modbus, WIFI, keycard, etc, to meet all your needs;
>> Strict temperature control accuracy (± 1°C) to provide the warmth you want;
>> Power off protection, save all your settings safely;
>> Preset adjustment of 5+1+1 mode in a week, programmable setting of 6 time periods a day;
>> Support the creation of product local groups/shares to achieve unlimited centralized control of the number of products/ multi-terminal control;

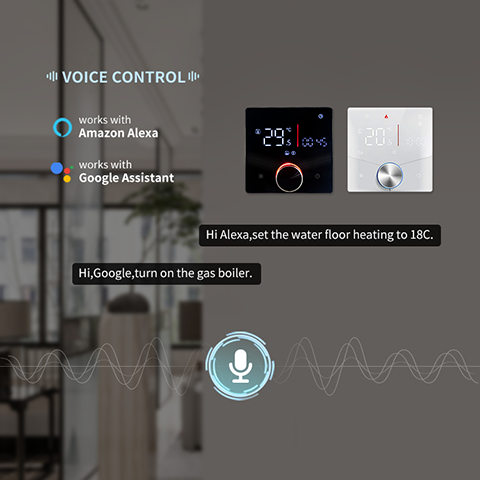

>> Perfect access: Tmall Genie, Amazon echo, Google Home, full experience new voice control method;
