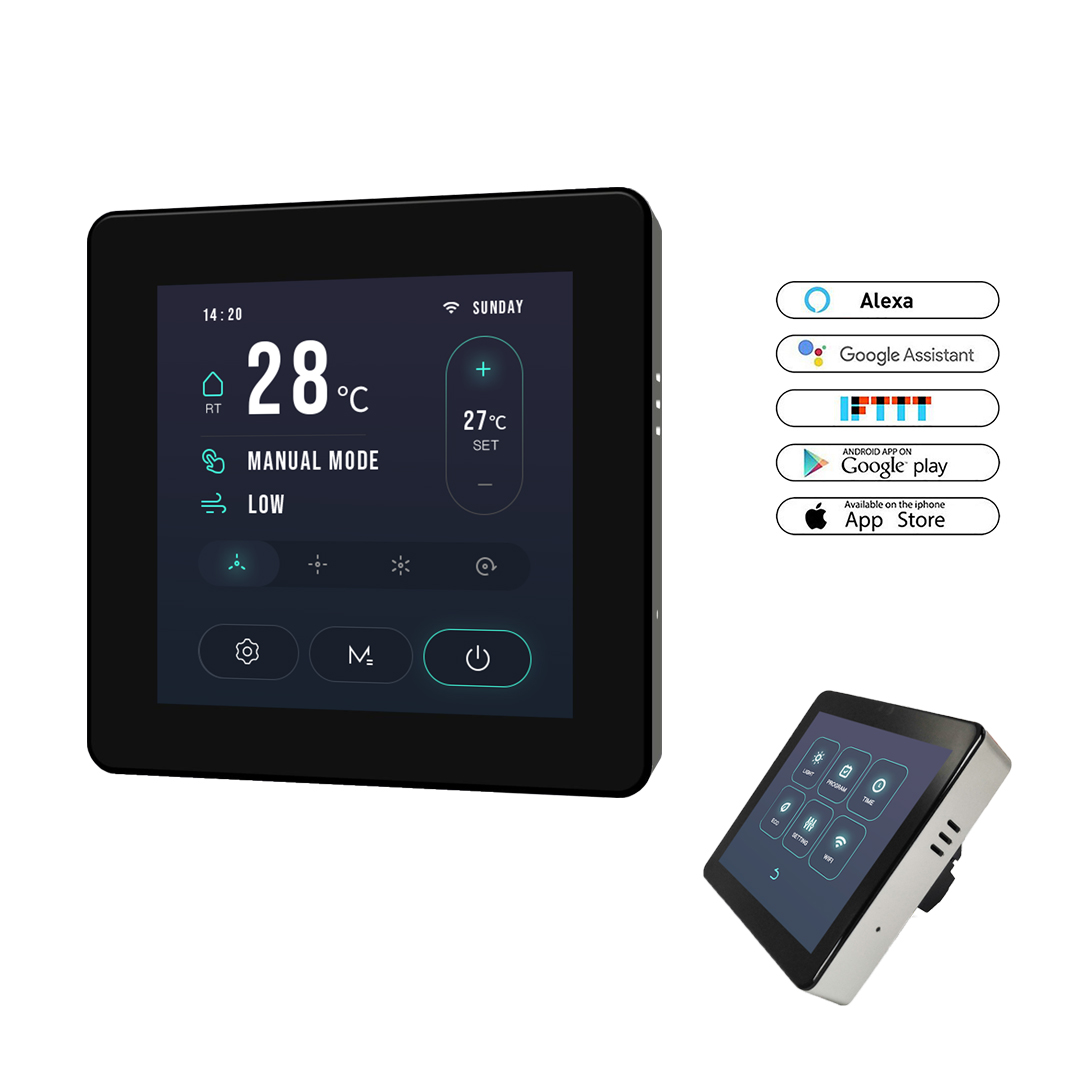

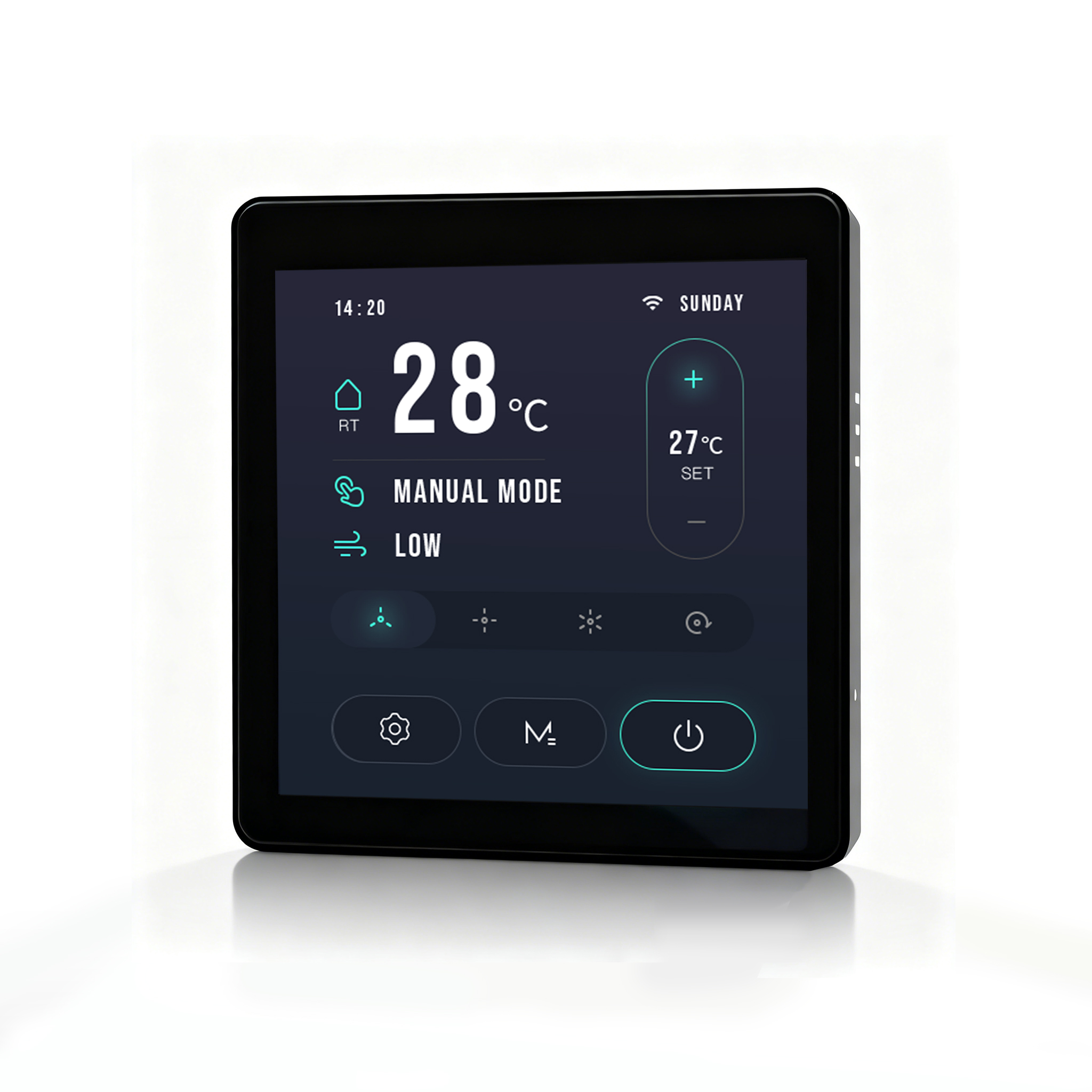

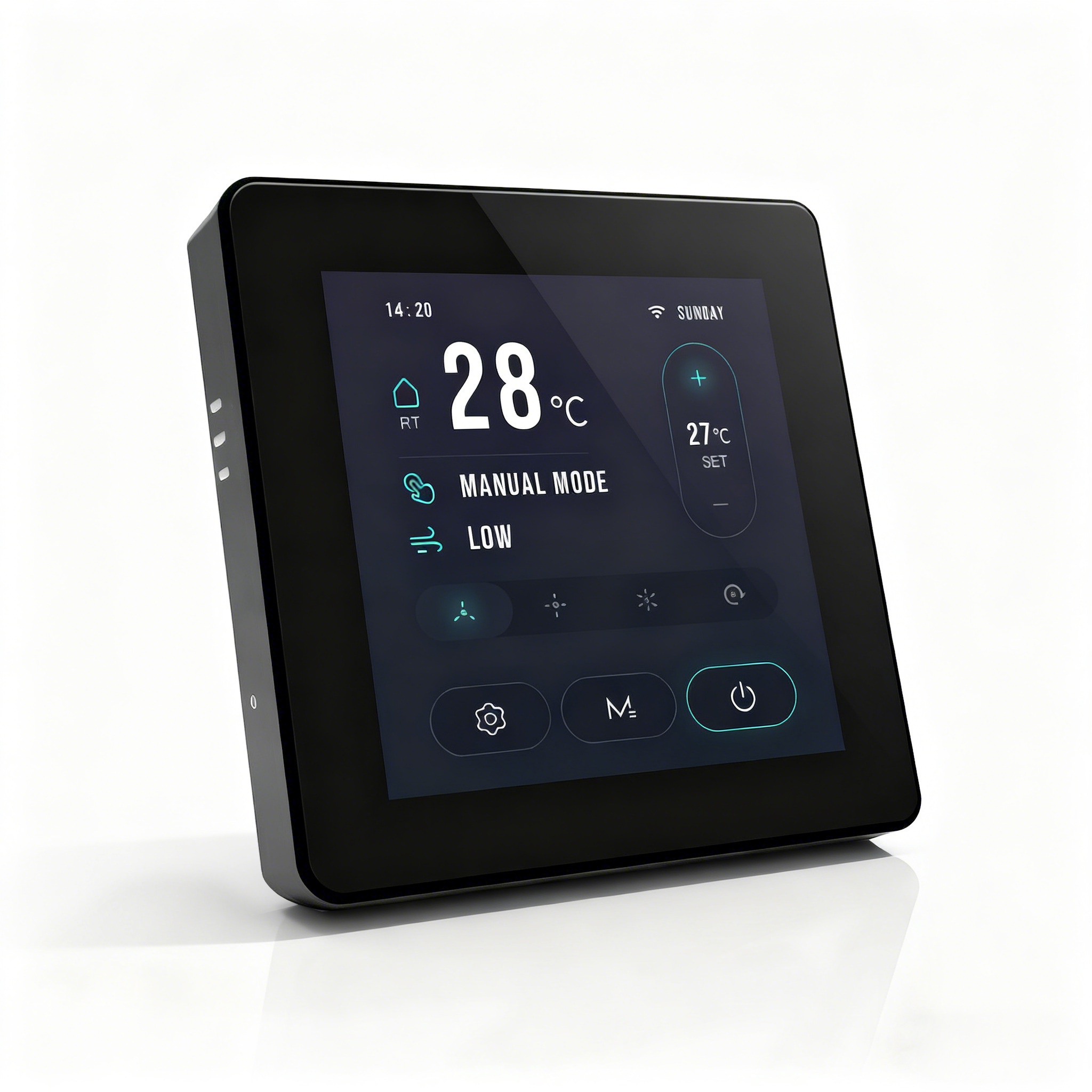

CCST4001 Smart 4.0" TFT Color Touch Fan Coil Thermostat with Modbus & WIFI & Zigbee Support
Professional 4.0-inch touch thermostat with Modbus & WIFI & Zigbee Support. Features customizable UI for smart climate integration in professional projects.

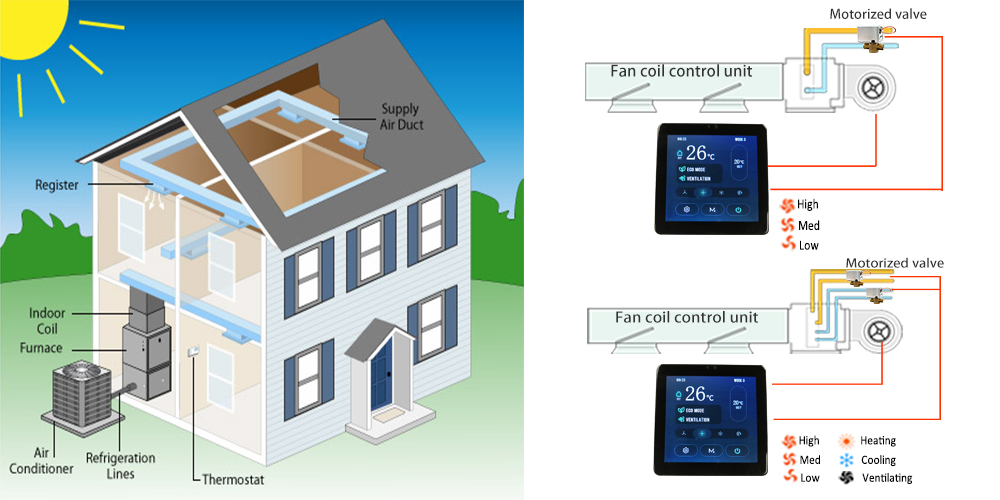

Two pipe; Control Fan Coil Unit and Two Wired Motorized Valve
Two pipe; Control Fan Coil Unit and 0-10V Motorized Valve
Four pipe; Control Fan Coil Unit and Two Wired Heat Valve and Two Wired Cool Valve.
------------------------------------------------------------------------------------------------------------
Technical Data
Power source: 95-230VAC; 24VAC
Control type: 2/4-Pipe FCU (On/Off or 0-10V Modulating)
Fan Type: 3 fan speed
Current Load: Fan: 5A (Resistive) / Valve: 3A (Resistive)
Accuracy: ±0.5°C (Precision Comfort)
Room temperature setting range: 5 ~ 35°C (customizable)

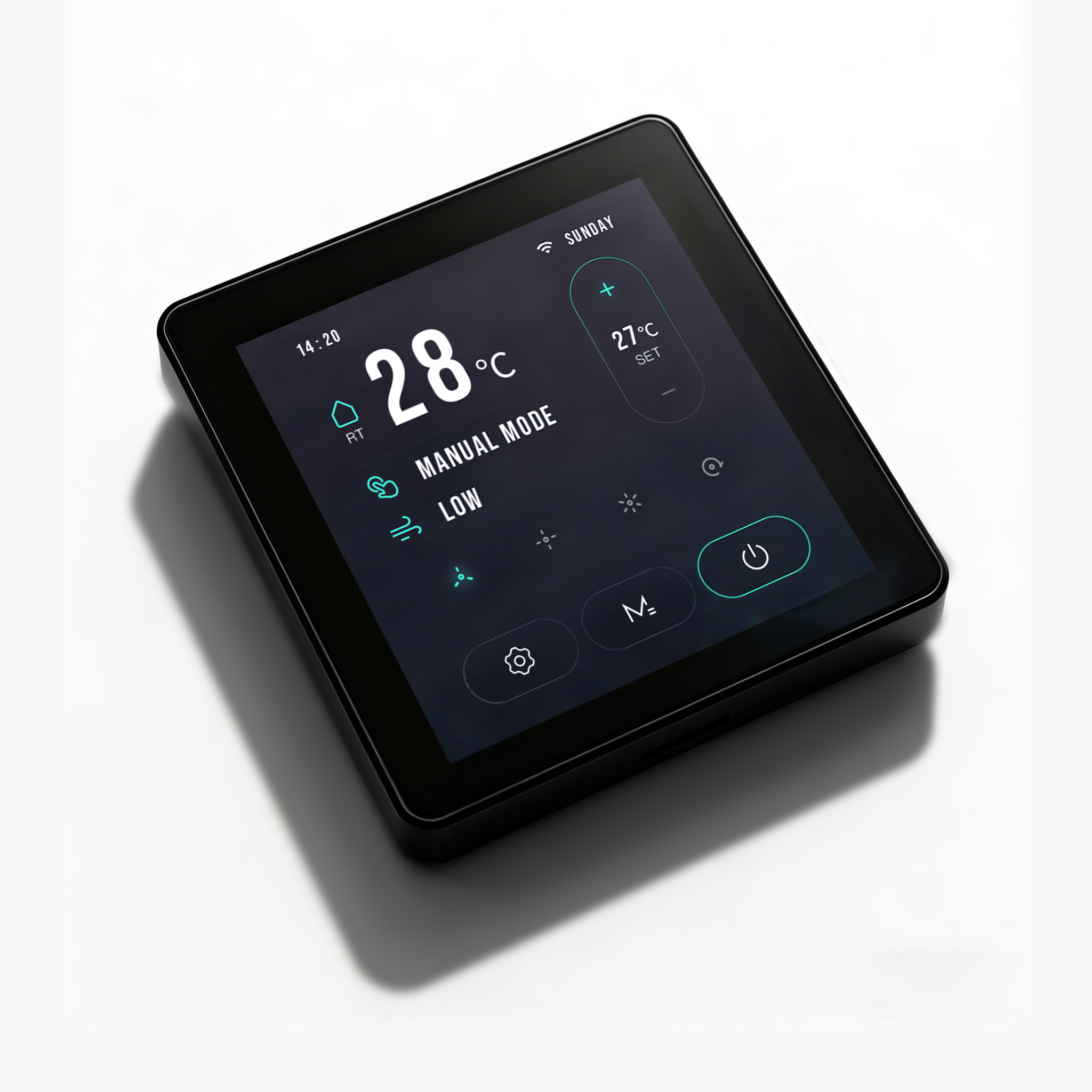

Screen Type: 4.0-inch TFT display
Connectivity: WiFi (2.4G) / Modbus RS485
Smart Linkage: Supports Amazon Alexa & Google Assistance & Yandex Alice
Smart Scheduling: 5+1+1 day Programmable Schedule
Housing Material: PC+ABS Anti-flammable

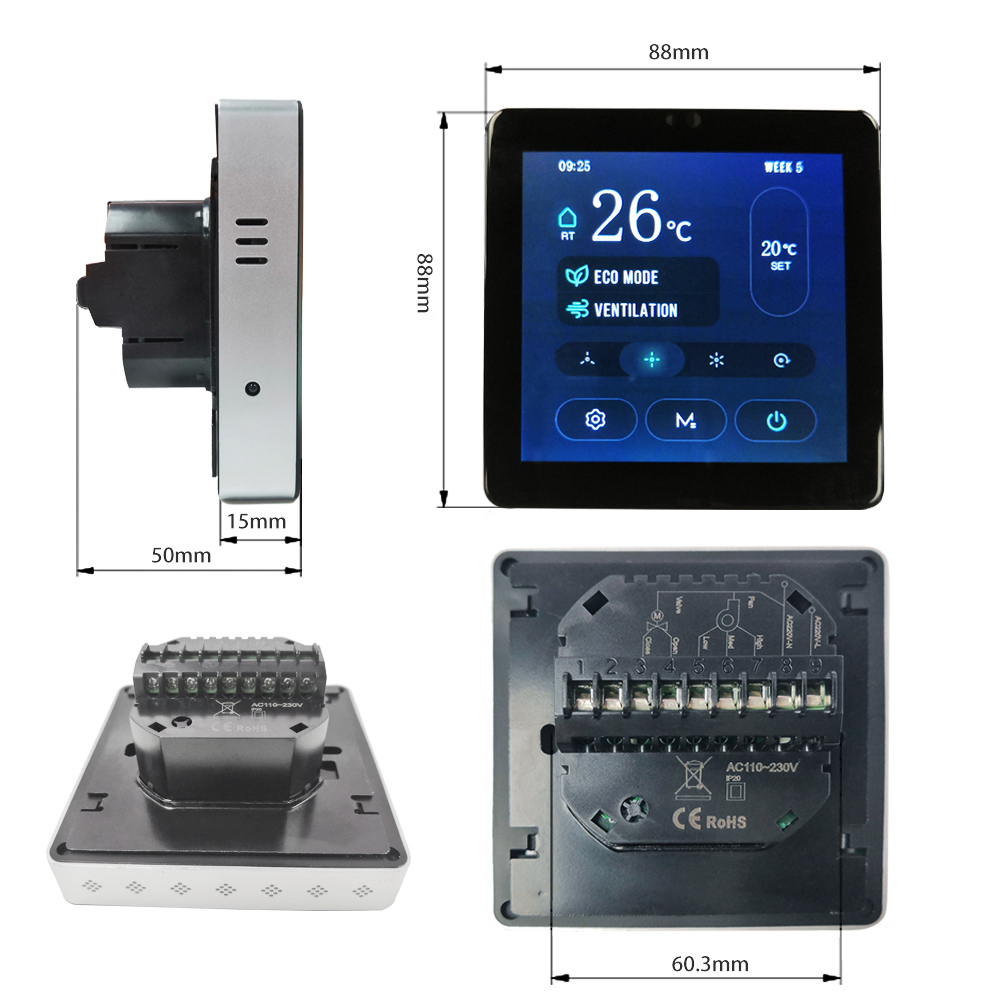

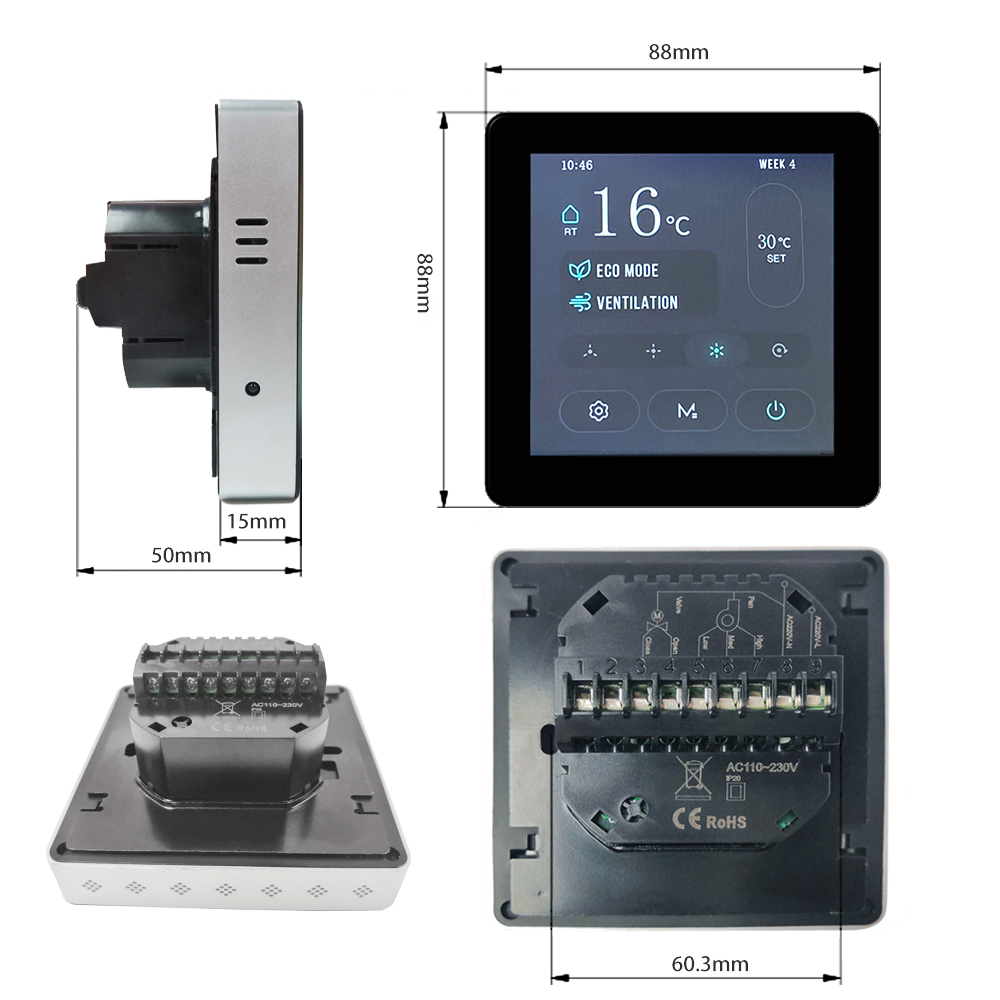

Dimensions: 88mm×88mm×50mm
Mounting: Flush-Mount (Fits 86mm Square & 60mm European Round Boxes)
Other Feature: Optional external sensors, ECO energy-saving mode, power failure memory
------------------------------------------------------------------------------------------------------------
Highlights at a glance

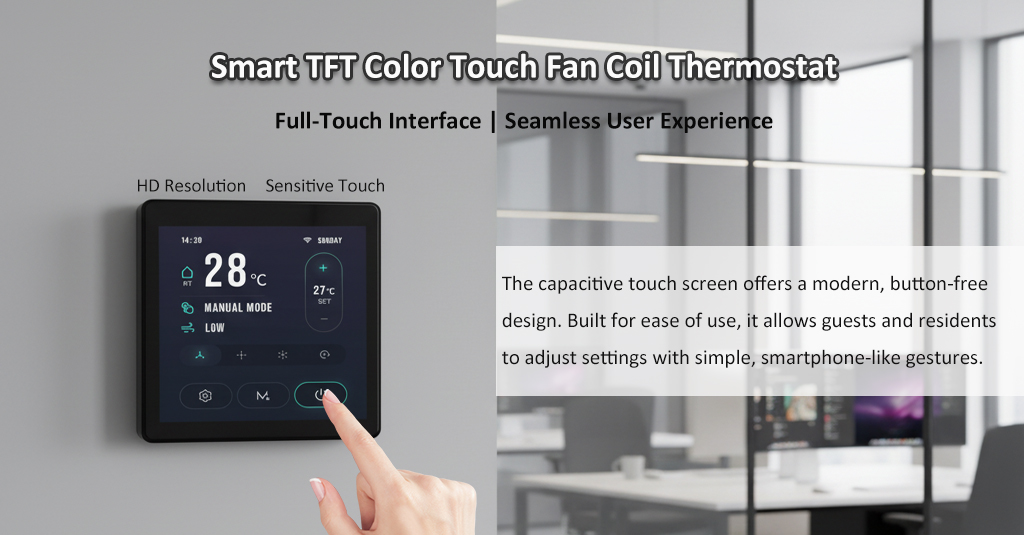

Full-Touch Interface | Seamless User Experience
The capacitive touch screen offers a modern, button-free design. Built for ease of use, it allows guests and residents to adjust settings with simple, smartphone-like gestures.
Tailored UI Design | Match Your Project’s Aesthetic
We offer UI customization to align with the branding and interior style of your hotel or commercial building. Choose from various themes to create a unified visual experience for your project.

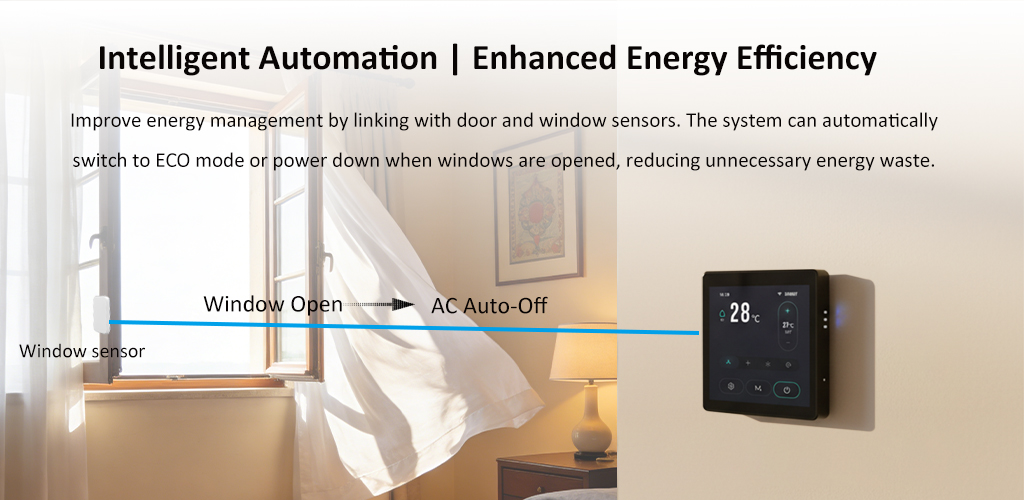

Intelligent Automation | Enhanced Energy Efficiency
Improve energy management by linking with door and window sensors. The system can automatically switch to ECO mode or power down when windows are opened, reducing unnecessary energy waste.
Dual-Channel Connectivity | Seamless BMS & Smart Home Synergy
Modbus RS485 for centralized hotel BMS control; WiFi/Zigbee 3.0 for simple remote access at home.
Global Command Center | Multilingual UI & Voice Ecosystem
Localized for the global market. Supports 10+ languages and native integration with Alexa, Google Assistant, and Yandex Alice. 110-230V wide voltage for worldwide deployment
------------------------------------------------------------------------------------------------------------
The above function are free to combine customize. Please contact with us about more details.
