CCST8001 WIFI/Modbus Programmable Fan Coil Thermostat
CCST8001 smart fcu Thermostats are designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and settingtemp. as reaching the aim of comfort and saving energy.
Two pipe; Control Fan Coil Unit and Two Wired Motorized Valve
Two pipe; Control Fan Coil Unit and 0-10V Motorized Valve
Four pipe; Control Fan Coil Unit and Two Wired Heat Valve and Two Wired Cool Valve.
------------------------------------------------------------------------------------------------------------
Technical Data
Power source: 95-230VAC; 24VAC
Control type: 2/4-Pipe FCU (On/Off or 0-10V Modulating)
Fan Type: 3 fan speed
Current Load: Fan: 5A (Resistive) / Valve: 3A (Resistive)
Accuracy: ±0.5°C (Precision Comfort)
Room temperature setting range: 5 ~ 35°C (customizable)
Screen Type: Multicolor LED display
Connectivity: WiFi (2.4G) / Modbus RS485
Smart Linkage: Supports Amazon Alexa & Google Assistance & Yandex Alice
Smart Scheduling: 5+1+1 day Programmable Schedule
Housing Material: PC+ABS Anti-flammable

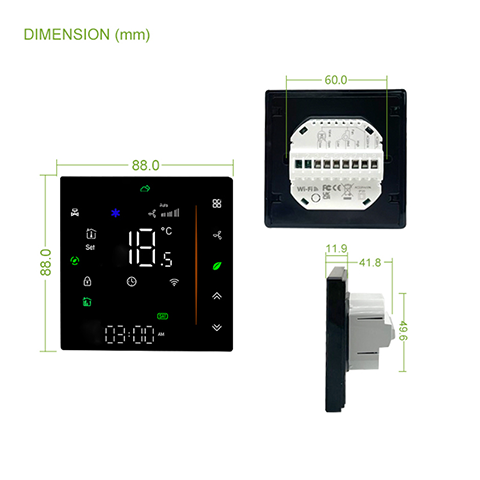

Dimensions: 86mm×86mm×45mm
Mounting: Flush-Mount (Fits 86mm Square & 60mm European Round Boxes)
Other Feature: Optional external sensors, ECO energy-saving mode, power failure memory
------------------------------------------------------------------------------------------------------------
Highlights at a glance
Mirror-Finish Aesthetics with Vibrant LED Accents
Say goodbye to dull, plastic controls. Our high-transparency mirror panel and intuitive UI perfectly complement the sophisticated decor of luxury hotels and modern villas.

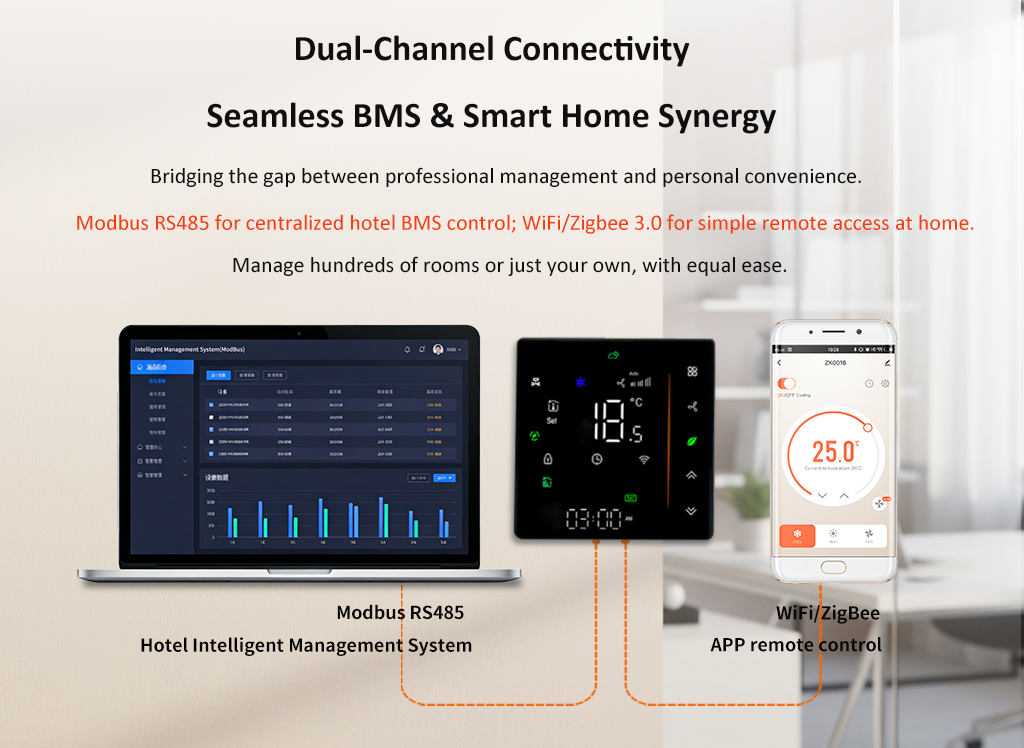

Engineered for Large-Scale Integration
Whether you are setting up WiFi networks for smart homes or implementing centralized control systems for professional buildings, the CCST8001 can operate smoothly. It is the most reassuring "move-in tool" for engineers.
Your Voice is the Only Remote You Need

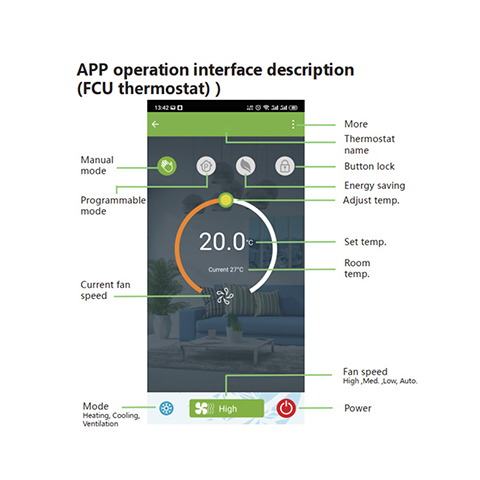

Integrated with the Tuya/Smart Life ecosystem. Set automated scenes like "Leaving Home" to save energy or "Coming Home" to pre-warm your floors.
Comfort That Pays for Itself
Smart 5+1+1 programming follows your routine. It warms up before you wake and saves energy after you leave. Simply enjoy your life; let the thermostat handle the rest.
------------------------------------------------------------------------------------------------------------
