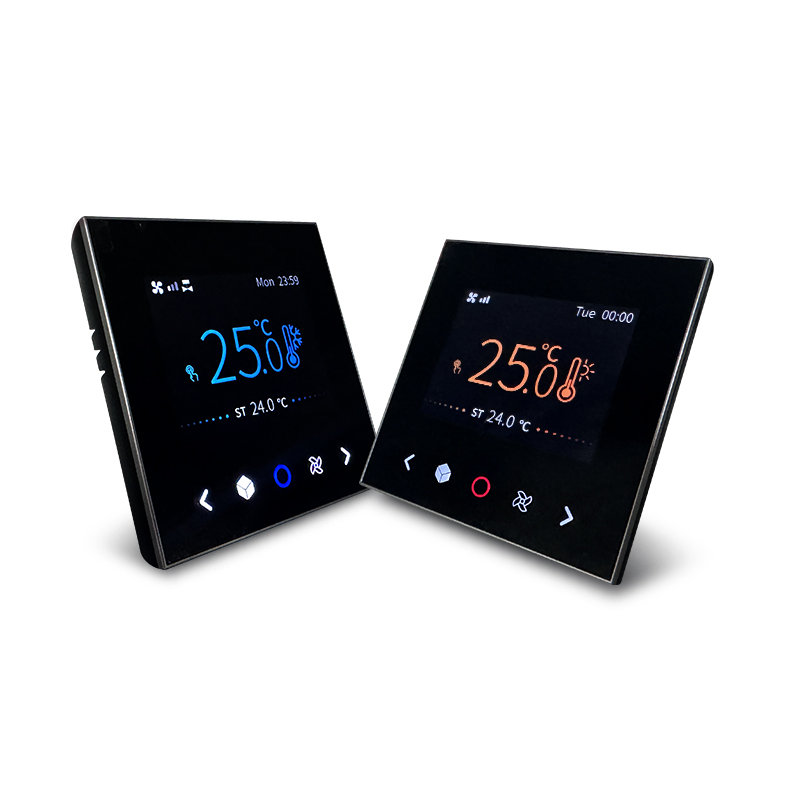

CCST7001 Smart Fan Coil Thermostat: HD Color Display, Voice Control & Multi-Protocol Integration

The CCST7001 smart FCU thermostat is the ultimate all-in-one climate controller. Whether you need WiFi or Modbus RS485 , this versatile thermostat fits all your smart needs. With its vivid mode-specific UI, hands-free voice control, and support for advanced 0-10V systems, it delivers premium performance and five-star aesthetics at an unbeatable value.

Technical Data

• Power source: 95-230VAC; 24VAC

• Control type: 2/4-Pipe FCU (On/Off or 0-10V Modulating)

• Fan Type: 3 fan speed

• Current Load: Fan: 5A (Resistive) / Valve: 3A (Resistive)

• Accuracy: ±0.5°C (Precision Comfort)

• Room temperature setting range: 5 ~ 35°C (customizable)

• Screen Type: 2.8-inch TFT display

• Connectivity: WiFi (2.4G) / Modbus RS485

• Smart Linkage: Supports Amazon Alexa & Google Assistance & Yandex Alice

• Smart Scheduling: 5+1+1 day Programmable Schedule

• Housing Material: PC+ABS Anti-flammable

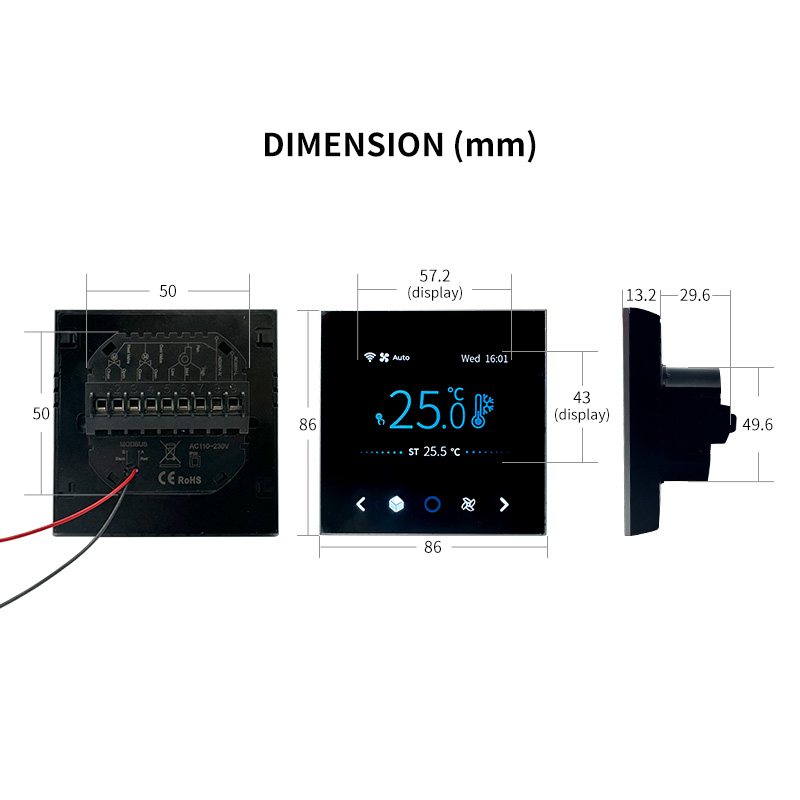

• Dimensions: 86mm×86mm×36mm

• Mounting: Flush-Mount (Fits 86mm Square & 60mm European Round Boxes)

• Other Feature: Optional external sensors, ECO energy-saving mode, power failure memory

Highlights at a glance

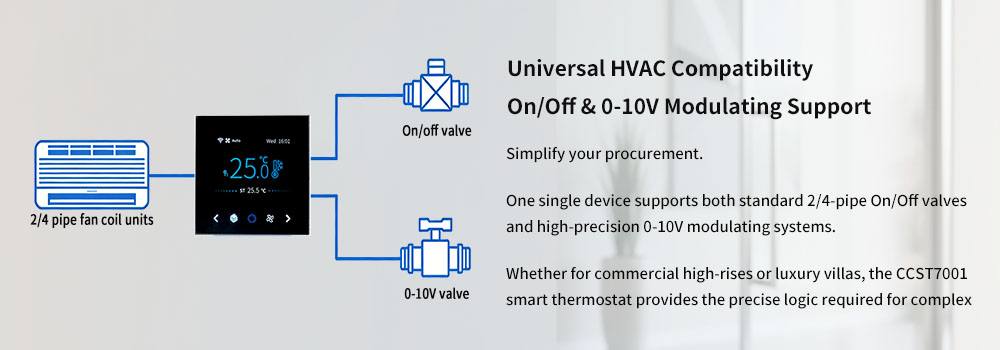

• Universal HVAC Compatibility: On/Off & 0-10V Modulating Support

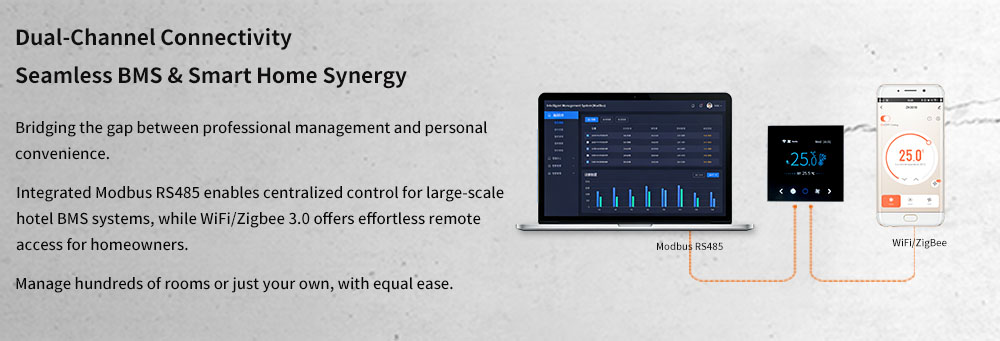

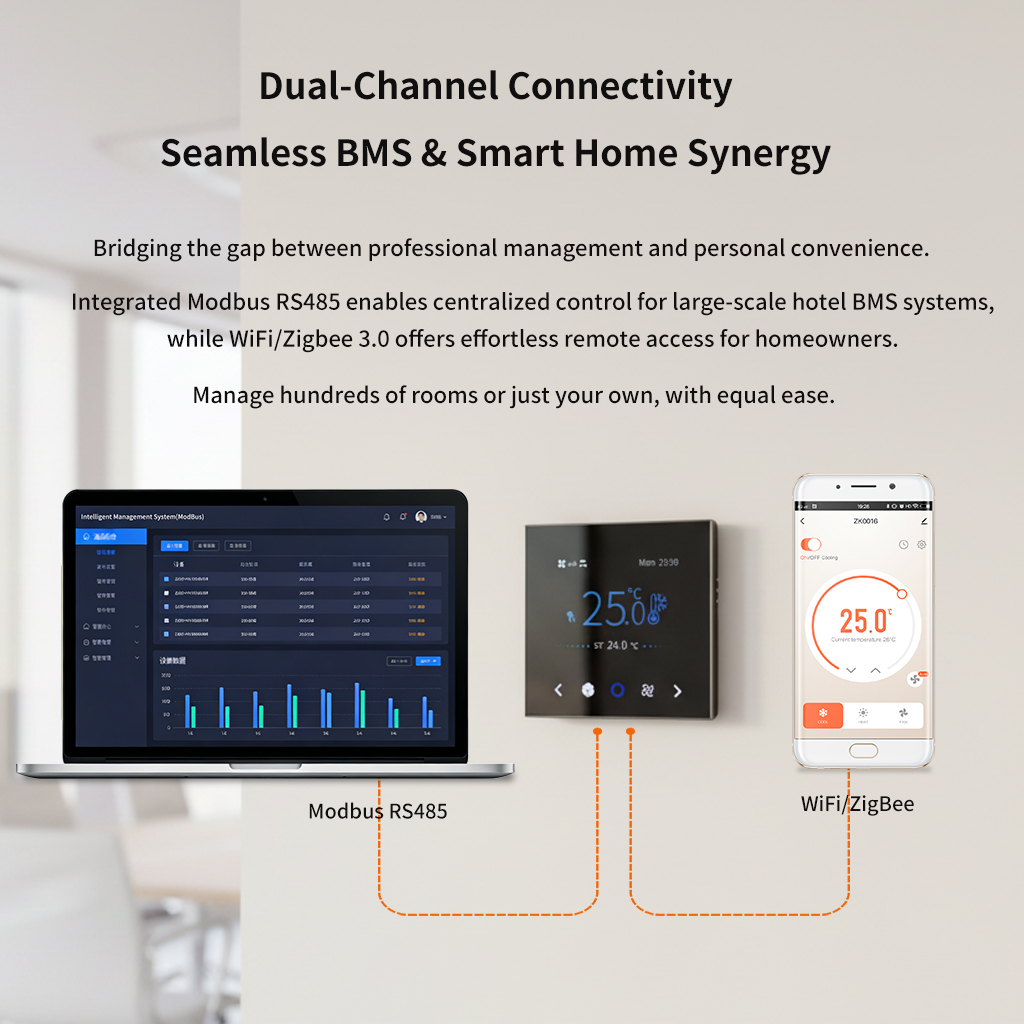

• Dual-Channel Connectivity: Seamless BMS & Smart Home Synergy

• Fault Warning Function: Alerts you to potential issues for timely maintenance.

• Data Memory: Preserves settings even when power is off, ensuring consistent control.

• Weather and Humidity Display: Keeps you informed about environmental conditions.

• 5+2 Six Periods Programmable: Maximizes comfort and energy efficiency.

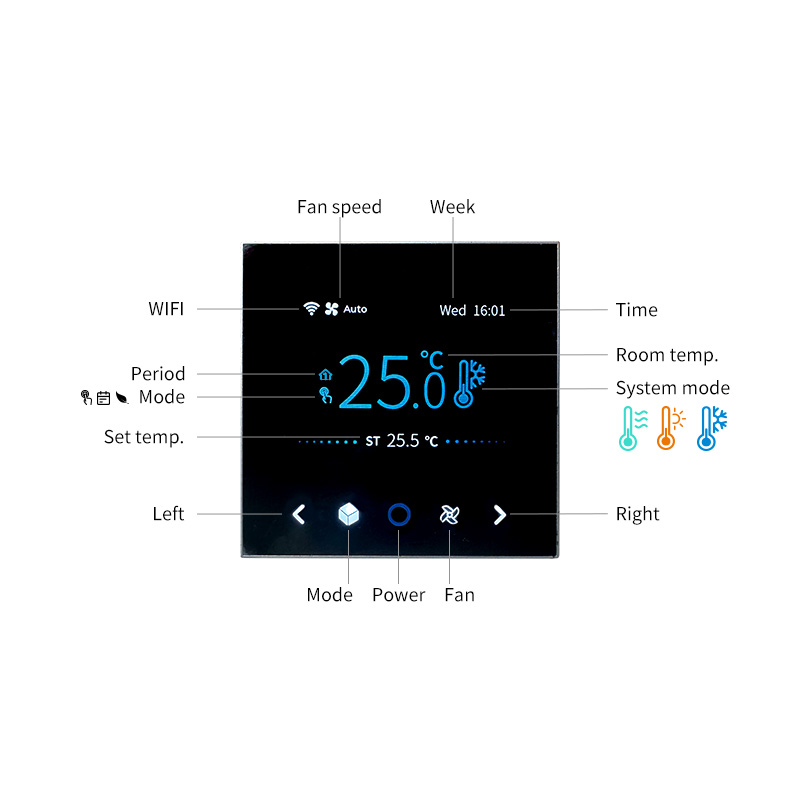

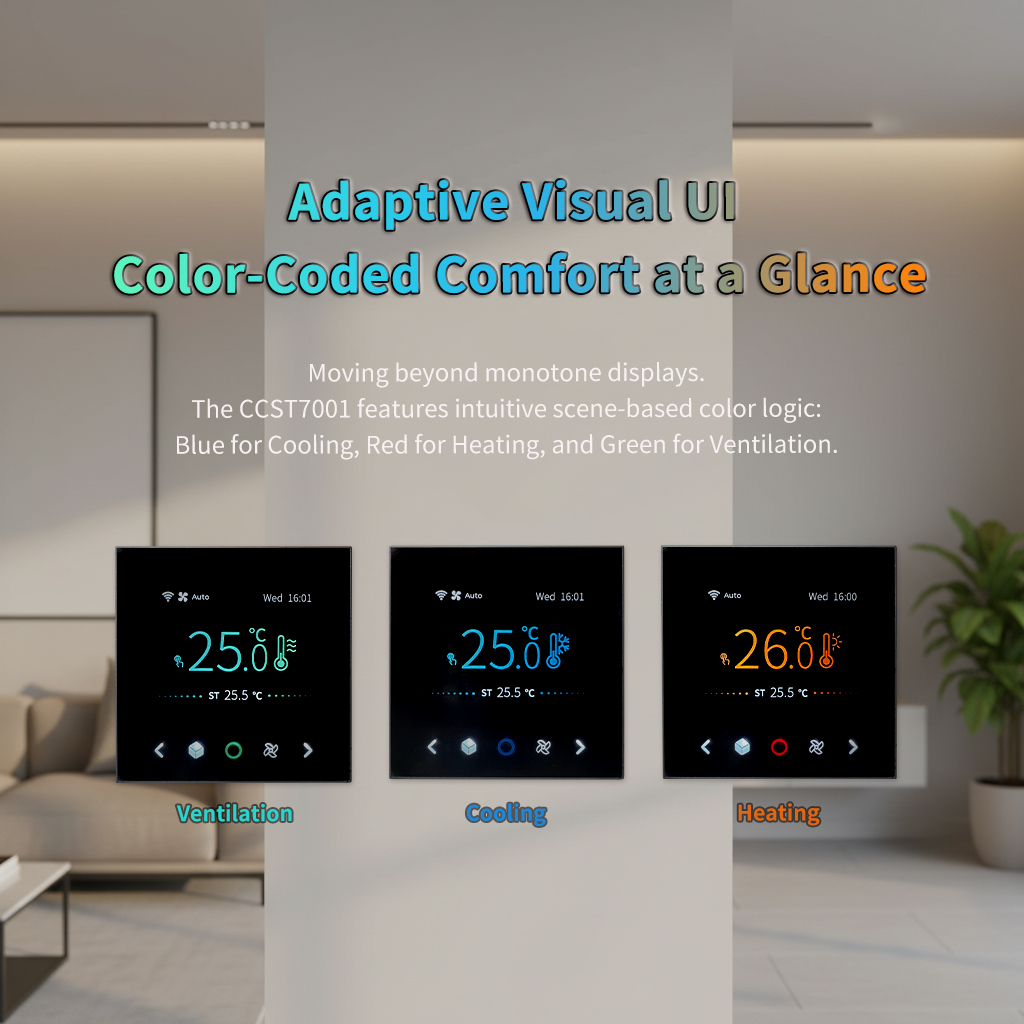

• Adaptive Visual TFT Touch Color Display: Enhances usability and aesthetic appeal.
